Most fans move air. Not every fan moves it wisely. An ec motor helps a fan adjust speed, save energy, and run more quietly. In this article, you will learn what an EC fan motor is, how it works, where it fits, and how to choose one for ventilation or cooling systems.
An EC fan motor is a motor designed to drive a fan through electronic commutation. “EC” means electronically commutated. In simple terms, the motor uses electronic controls to manage how power flows through the motor. This helps the fan adjust speed more smoothly than many traditional fixed-speed fan motors.
An EC fan motor usually uses brushless motor technology. It does not rely on brushes to switch current inside the motor. Instead, its controller manages the switching process. This design helps reduce friction, wear, and energy loss. It also allows the fan to respond better to real airflow needs.
The ec motor is only one part of the system. In a complete EC fan, the motor works with the fan blade, impeller, housing, mounting structure, and control interface. That is why EC fan performance depends on both motor design and fan design. A strong motor alone is not enough if the impeller or airflow path is poorly matched.
In fan systems, EC means the motor uses electronics to control commutation. Commutation is the process of switching current between motor windings. In an EC fan motor, this switching is handled by electronic circuits, not mechanical brushes.
This gives the motor better control over speed and torque. The fan does not need to run at full speed all the time. It can slow down when airflow demand is low and speed up when more air is needed.
An ec motor creates rotation. An EC fan uses that rotation to move air. The difference matters during product selection.
If you are building a fan system, you may need only the motor. If you need a ready airflow solution, you may need an EC axial fan, EC centrifugal fan, or EC panel fan. The final choice depends on the airflow direction, pressure demand, space, and application.

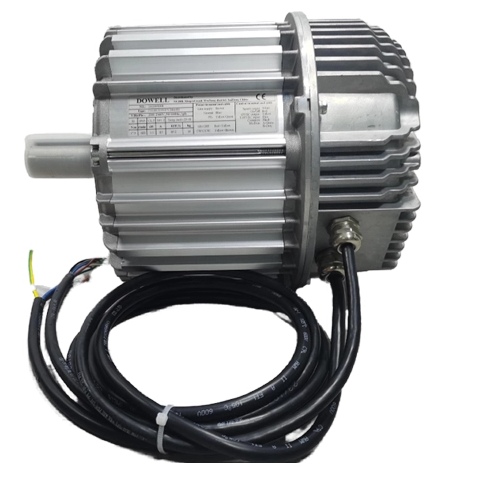

A typical EC fan motor includes a stator, rotor, permanent magnets, bearings, motor housing, and an electronic controller. Some designs place the controller inside the motor. Others use a separate control unit.
The controller is important. It reads control signals and adjusts motor speed. It may support analog speed control, PWM, Modbus, or RS485, depending on the system design.
EC fan motors are used because many systems no longer need simple on-off airflow. Modern HVAC, cooling, and ventilation systems often need controlled airflow. They may need lower speed at night, higher speed during peak load, or remote adjustment from a building control system.
An EC fan motor gives engineers more control. It also helps reduce wasted air movement, which can lower power use and noise.
An EC fan motor works by combining a permanent magnet motor with electronic speed control. The controller sends current to the motor windings in a timed pattern. This creates a rotating magnetic field. The rotor follows that field and turns the fan.
Because the controller manages this process, it can change speed based on input signals. For example, a ventilation system may send a signal when temperature rises. The motor then increases speed. When cooling demand drops, it slows down.
This control makes EC fan motors useful in systems where air demand changes during the day. It also helps avoid the waste caused by fixed-speed motors running at full output.
Traditional brushed motors use physical brushes for current switching. EC motors do not. Their electronic controller handles switching. This reduces mechanical wear and allows more precise motor behavior.
For fan systems, this means smoother acceleration, better speed stability, and better control under changing load.
Many EC fan motors use permanent magnets in the rotor. This design can improve efficiency because the rotor does not need extra electrical current to create its magnetic field.
The result is often better performance at partial load. This is important because many fans spend much of their working life below full speed.
Variable speed is one of the main reasons buyers choose EC fan motors. Instead of using belts, pulleys, dampers, or fixed-speed steps, the motor can adjust speed through its control system.
This is useful in HVAC systems, greenhouses, cleanrooms, warehouses, and livestock houses. These places rarely need the same airflow every hour.
Some EC fan motors include an integrated controller. This can simplify installation and save space. Other motors use a separate inverter or control unit. That can help when the control system needs more flexibility or when heat management is important.
The right design depends on the machine layout, control cabinet space, maintenance plan, and operating environment.
Note：A motor with control electronics still needs proper cooling, wiring, and protection. Poor installation can reduce its service life.
A traditional AC fan motor is often simple and reliable. It runs from AC power and may operate at one fixed speed. In many older fan systems, airflow is changed through dampers, belts, pulleys, or external speed devices.
An EC fan motor takes a different route. It uses electronic control to adjust motor speed directly. This can improve energy use, airflow control, and comfort.
Fans often run for long hours. Even a small efficiency gain can matter over time. EC fan motors can reduce waste because they match speed to demand. They do not need to push full airflow when the system only needs partial output.
AC motors can work well in simple systems. But when airflow needs to change often, EC fan motors offer more control. They can respond to temperature, pressure, humidity, or a remote signal.
This makes them useful in air handling units, ventilation fans, and cooling equipment.
Fan noise often rises with speed. Since an EC fan motor can run slower when demand is low, it can help reduce noise. This is useful in indoor spaces, farms, offices, cleanrooms, and equipment rooms.
The smoother control can also help reduce sudden starts and stops.
A traditional system may need belts, pulleys, or mechanical parts to change airflow. An EC fan motor can reduce some of that complexity. In many cases, speed adjustment comes from the controller.
This can make the system more compact and easier to integrate.
Tip：When replacing an AC fan motor, check the whole fan system. The blade, housing, and control signal must also match.
The biggest benefit of an EC fan motor is not just energy saving. It is better control. A fan that can match real demand often performs better in daily use.
EC fan motors are also useful when a system needs reliable long-hour operation. Ventilation, cooling, and air circulation systems often run for many hours each day. In those cases, efficiency, stability, and noise matter.
Energy cost is a major concern in ventilation systems. Fans may run all day in factories, farms, buildings, or cooling systems. When airflow demand is lower, an EC fan motor can reduce speed and use less power.
This is where variable speed control creates value. The motor does not just turn on. It works according to demand.
Too much airflow can waste energy. Too little airflow can hurt comfort, cooling, or air quality. EC fan motors help keep airflow closer to the real need.
In a poultry house, for example, airflow demand may change by temperature, animal age, and season. In an HVAC system, demand may change by room load and time of day.
A brushless EC motor has fewer wear points inside the motor than a brushed design. It can also reduce stress from hard starts when the control system is set correctly.
Lower vibration and smoother operation may help the complete fan system last longer. Actual life still depends on bearings, temperature, dust, humidity, and maintenance.
Many EC fan motors support control signals used in modern systems. These may include analog signals, PWM, Modbus, or RS485. This allows easier connection to building control systems, equipment controllers, or ventilation logic boards.
Smart control also helps during commissioning. Engineers can adjust speed settings based on real airflow readings instead of guessing.
EC fan motors are used in places where airflow matters and operating cost matters. They fit both commercial and industrial systems. They also work well in agricultural ventilation, where air quality affects animal health and productivity.
HVAC systems need steady airflow. They also need flexible control. An EC fan motor can help an air handling unit adjust airflow based on cooling or heating demand.
It is also useful in heat pumps, air conditioning units, and building ventilation. These systems often benefit from quiet operation and lower power use.
Factories, warehouses, workshops, and equipment rooms need strong air movement. Some need axial airflow. Others need centrifugal airflow for higher pressure.
An EC fan motor can drive both types when matched correctly. It helps move air while allowing speed adjustment for different working conditions.
Farms need stable ventilation. Animals need fresh air, temperature control, and moisture control. A low-noise EC fan can help improve the environment while reducing energy waste.
For poultry barns and livestock houses, corrosion resistance, dust tolerance, and easy maintenance should also be checked.
Cooling towers and evaporative cooling systems often run under changing load. An EC fan motor can adjust speed as cooling demand changes.
This helps avoid constant full-speed operation. It can also support more stable temperature control.
Choosing the right EC fan motor starts with the fan system, not the motor catalog. The motor must match the impeller, airflow target, pressure demand, mounting method, and control plan.
A common mistake is choosing only by power rating. Two motors with the same power may perform differently when paired with different fan blades or housings.
First, define the fan type. Axial fans move air in a straight path. They are common in ventilation, cooling towers, heat pumps, and wall-mounted systems. Centrifugal fans move air through a curved path and often handle higher pressure.
The ec motor must match the fan load. If the load is too high, the motor may run hot or fail early. If the motor is oversized, the system may cost more than needed.
Airflow tells you how much air the fan must move. Pressure tells you how hard the fan must work to move that air through ducts, filters, coils, or openings.
Both values matter. A fan for an open wall is not the same as a fan for a ducted HVAC system.
Before buying, confirm how the system will control speed. Will it use a simple speed knob? A temperature controller? A building management system? A Modbus or RS485 network?
The motor and controller must accept the correct signal. Otherwise, the installation may need extra parts or rewiring.
Operating conditions affect motor choice. Check temperature, humidity, dust, corrosion risk, rain exposure, and installation space.
For farms, corrosion and dust matter. For HVAC systems, noise and control stability matter. For industrial ventilation, heat, duty cycle, and mechanical strength matter.
Note：Always check the application, not only the datasheet. Real airflow depends on the full fan assembly.
An EC fan motor gives a fan better speed control, stronger efficiency, and easier system integration. Suzhou Dowell Ventilation Technology Co., Ltd provides EC motors, EC fans, axial fans, centrifugal fans, and custom support for ventilation and cooling projects. Its products help users improve airflow, reduce energy waste, and build more reliable systems.
A: An ec motor is an electronically controlled brushless motor that drives fan speed.
A: It saves energy, controls airflow better, and can reduce noise.
A: An ec motor is better for variable speed and long-hour use.
A: It is used in HVAC, cooling, ventilation, farms, and air handling units.
A: Usually yes, but lower energy use may offset the cost.
