Many fans waste energy because they run too fast. An ec motor solves this problem in a smarter way. It uses electronics to control speed, torque, and airflow. In this article, you will learn how it works, why it saves energy, and where it fits in modern ventilation systems.
● An ec motor is an electronically commutated motor. It uses electronic control instead of brushes to switch current inside the motor.
● The main parts include a stator, a permanent magnet rotor, and an integrated control board.
● The controller sends current to the windings in sequence. This creates a rotating magnetic field.
● The rotor follows that magnetic field and turns the fan, blower, or driven equipment.
● Unlike many traditional AC motors, an EC motor can adjust speed based on demand.
● This speed control helps reduce wasted airflow, power use, noise, and mechanical stress.
● In fan systems, EC motor technology supports more stable airflow in HVAC, industrial ventilation, cooling, and livestock environments.
● The best EC motor choice depends on voltage, speed range, torque, control method, installation space, and operating environment.

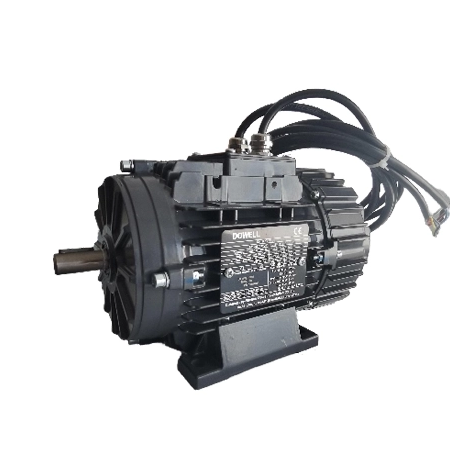

An EC motor is a brushless motor controlled by electronics. EC means “electronically commutated.” In simple terms, the motor uses a control board to decide when electric current should move through each winding.
A traditional brushed motor uses physical brushes to switch current. Those brushes wear over time. An EC motor removes that weak point. It uses electronic switching instead, so the operation is smoother and easier to control.
In many fan systems, the EC motor is built around a permanent magnet rotor and a wound stator.
The stator is the fixed part. It holds the copper windings. The rotor is the moving part. It carries permanent magnets. The controller sits inside or near the motor. It manages power, speed, protection, and signals.
When these parts work together, the motor can create motion without brushes. That is the basic reason an EC motor can run with high efficiency and low wear.
Many standard AC motors run near one fixed speed. If the system needs less airflow, it may still use more power than needed. Some systems add belts, pulleys, dampers, or external devices to change output.
An EC motor takes a different path. It adjusts motor speed electronically.
An EC motor works by turning electrical power into a controlled rotating magnetic field. The rotor follows this field. That rotation then drives the fan wheel, impeller, or other load.
Power first enters the motor from the supply. Depending on the system, it may use single-phase or three-phase input. The motor does not simply pass this power straight to the windings. It sends the power through the electronic control section first.
This matters because the controller needs to shape the electrical output. It decides how much current is needed and when each winding should receive it.
The controller acts like the brain of the EC motor. It switches current between motor phases in a timed sequence. This sequence creates a rotating magnetic field inside the stator.
The stronger and faster this field changes, the more torque or speed the motor can produce. The controller can also reduce output when the system does not need full airflow.
The rotor has permanent magnets. These magnets react to the rotating field made by the stator. As the field moves, the rotor tries to stay aligned. This movement creates rotation.
Because the switching is electronic, the motor can run smoothly across a wide speed range. It can also respond quickly when the control signal changes.
Many EC motor systems use feedback to support stable speed. The controller can compare the desired speed with real motor behavior. Then it adjusts current as needed.
This is useful in ventilation. Air pressure changes when filters clog, ducts change, or doors open. The EC motor can help keep airflow closer to the target instead of wasting power at one fixed output.
Electronic commutation is the key idea behind the EC motor. It replaces mechanical switching with smart electrical timing.
Inside the stator, different windings turn on and off in a planned order. The controller sends current to one phase, then another. This creates a moving magnetic pull.
This switching must be precise. If the timing is poor, the motor may lose efficiency, create more heat, or produce vibration.
Because switching happens electronically, there are no carbon brushes rubbing against a commutator. Less friction means less wear. It also helps reduce service needs in continuous-running fan systems.
This is one reason EC motors are common in ventilation, HVAC, and cooling equipment. These systems may run for many hours each day, so reduced wear has real value.
In many cases, an EC motor can change speed without belts or pulleys. The controller changes the electrical output instead. This makes system design cleaner and often easier to automate.
For a fan, this means the same motor can support lower airflow at night, higher airflow during peak heat, or stable airflow under changing pressure.
Tip：For ventilation projects, define the real operating speed range before choosing a motor, because partial-load performance often matters more than peak speed.
Speed control is one of the main reasons buyers choose EC technology. It lets the motor match the system instead of forcing the system to match the motor.
A variable-speed EC motor can slow down when demand is low. It can speed up when the room, duct, cooling system, or livestock house needs more air.
This saves energy because fan power rises quickly as speed increases. Even a small speed reduction can make a large difference in daily power use.
EC motors can accept different control signals.
A 0–10V signal is simple. A lower voltage asks for lower speed. A higher voltage asks for higher speed. RS485 or Modbus-style communication can support more advanced control, monitoring, and integration.
In a smart system, the motor may respond to temperature, humidity, pressure, or airflow demand. For example, a greenhouse fan may run slower on mild days. A cooling tower fan may increase speed as heat load rises.
This is where the EC motor becomes more than a motor. It becomes part of a controlled airflow system.
The energy savings do not come from one single feature. They come from motor design, electronic control, and better speed matching.
Permanent magnet rotors reduce some losses found in induction motor designs. The motor does not need the same rotor current to create magnetic force. Less waste often means less heat.
Electronic control also helps because the motor receives only the power it needs. It is not forced to run at full output all the time.
Many fan systems spend much of their time at partial load. They do not need maximum airflow every hour. An EC motor can reduce speed and power use during those periods.
Traditional systems may reduce airflow by blocking it with dampers. That still wastes energy because the motor may keep working hard. EC speed control cuts output at the source.
This is why EC motors are useful in HVAC units, air handling systems, industrial ventilation, livestock ventilation, and cooling equipment.
Note：Energy savings should be checked against the duty cycle, because a motor running at full load all day will show a different payback than one running mostly at partial load.
In fan applications, motor behavior directly affects airflow. This makes EC technology especially useful for axial fans, centrifugal fans, panel fans, and ventilation units.
A fan does not always need one fixed output. Buildings, farms, workshops, and cooling systems change through the day. An EC motor can help match airflow to the current condition.
Noise often rises when fans run faster than needed. EC speed control can reduce unnecessary high-speed operation. It can also make acceleration smoother.
This helps in offices, commercial buildings, greenhouses, poultry barns, and other places where constant fan noise can become a problem.
Fans face changing loads. Filters collect dust. Duct pressure shifts. Outdoor air conditions change. A controlled EC motor can adjust to these changes more easily than a fixed-speed motor.
Both types can be useful. The right choice depends on the control method, installation layout, and performance target.
An EC motor with an inverter is designed for precise speed control. The inverter helps convert and control power for the motor. This is useful when the system needs flexible speed, stable torque, or smooth operation across a wide range.
An EC motor without inverter may suit simpler system designs. It can still use electronic commutation, but the control arrangement may differ. This option can make sense when the equipment already has a suitable control setup or does not need advanced speed functions.
Choose based on the real job. Look at voltage, speed range, torque, control signal, communication needs, enclosure protection, wiring space, and operating environment.
For example, an air handling unit may need high torque and precise low-speed control. A simple ventilation fan may need reliable variable speed but less complex communication.
An EC motor works by using electronics to switch current, create a rotating magnetic field, and drive a permanent magnet rotor. This gives fan systems better speed control, lower noise, and less wasted power. Suzhou Dowell Ventilation Technology Co., Ltd provides EC motors and EC fan solutions for HVAC, industrial ventilation, cooling, and livestock airflow needs, helping users improve efficiency and system stability.
A: An ec motor is a brushless motor controlled by electronics.
A: An ec motor changes current timing and output based on signals.
A: It slows down when full airflow is not needed.
A: Often yes, when variable speed and efficiency matter.
A: Common causes include heat, wrong wiring, dust, moisture, or overload.
