Unmanaged heat silently destroys vital industrial electronics every single day. Modern electrical cabinets tightly pack power components, creating dense zones of trapped thermal energy. This unmanaged heat accelerates component degradation at alarming rates. It frequently triggers unpredicted system downtime and rapidly voids expensive equipment warranties. Upgrading your systems to utilize an EC fan for cabinet cooling effectively mitigates these critical risks. They cleverly combine the aerodynamic efficiency of DC motors and a direct AC power input. In this guide, electrical engineers and procurement teams will discover an evidence-based framework. You will learn exactly how to evaluate, size, and specify the perfect cabinet cooling fan to ensure reliable operation.
Technology Match: EC fans deliver up to 70% energy savings over traditional AC fans while allowing precise speed control based on real-time thermal loads.
Thermal Limits: Passive/fan-based cooling is only viable when the ambient facility temperature is consistently lower than the maximum allowable cabinet temperature.
Sizing Imperative: Accurate CFM calculation must account for internal heat load (Watts), temperature delta (ΔT), and airflow impedance from exhaust filters.
Compliance: Selection must align with enclosure ratings (NEMA/IP) to maintain environmental protection against dust and moisture.
Engineers face three primary technology choices for forced air cooling. You must understand the operational differences between alternating current, direct current, and electronically commutated models. Making the right choice impacts both thermal performance and energy consumption directly.
AC Fans: They rely on older alternating current induction motors. They have a very low initial purchase price. However, they consume high amounts of electrical power constantly. They operate at fixed speeds regardless of thermal demand. They suffer from inherent motor slip losses. You will also experience shorter operational lifespans because they run hotter.
DC Fans: They provide excellent high efficiency. They feature built-in variable speed control mechanisms. They use advanced brushless motor designs. Unfortunately, they run strictly on direct current. They require additional bulky power supplies. You must install AC-to-DC rectifiers inside the cabinet. This consumes highly valuable DIN rail space.

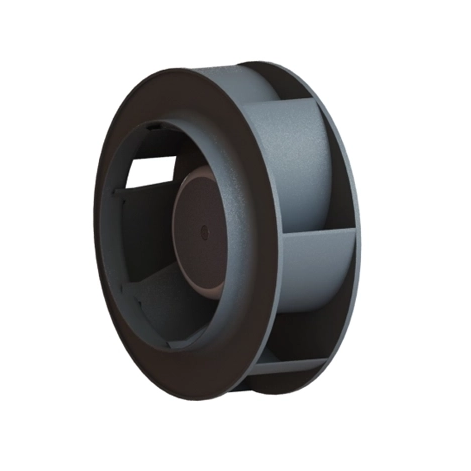

EC (Electronically Commutated) Fans: They connect directly to standard AC mains. They perform internal power conversion seamlessly within the motor housing. They offer the premium efficiency and smart control of DC motors. They completely eliminate the external power supply footprint. You get the best of both previous technologies combined.
Procurement teams often scrutinize initial capital expenses closely. An EC cooling unit carries a higher upfront unit cost than standard AC models. However, the financial return on investment happens very quickly. The payback period typically occurs within 12 to 18 months. You achieve this through deep operational energy savings. EC motors draw significantly less amperage during continuous operation. You also reduce routine maintenance cycles. They run cooler, so bearings last much longer. You ultimately extend internal component life by maintaining stable thermal environments.
Environmental context dictates your entire thermal management strategy. You must evaluate the physical space surrounding the electrical enclosure. Assessing these external boundary conditions prevents catastrophic cooling failures.
Thermal physics strictly limits standard airflow cooling capabilities. A cooling fan only extracts existing internal heat. It exhausts warm internal air outwards while drawing cooler facility air inwards. It absolutely cannot chill air below ambient facility temperatures. You must understand this fundamental limitation before specifying any forced air solution.
Passive or fan-based cooling works beautifully in specific environments. The ambient facility temperature must remain consistently low. It must stay at least 10°F (5.5°C) lower than your target internal cabinet temperature. This baseline difference provides a sufficient thermal gradient. Heat transfer occurs efficiently under these specific conditions. Climate-controlled factory floors, indoor warehouses, and well-ventilated control rooms fit this profile perfectly.
Some environments easily defeat basic airflow cooling methods. Sometimes ambient temperatures simply exceed internal thermal limits. A foundry or steel mill experiences massive ambient heat daily. The external environment might involve extreme humidity levels. You might face corrosive airborne contaminants or heavy metallic dust. You cannot pull dirty, hot air into the enclosure safely. These harsh scenarios demand a fully closed-loop system. An industrial enclosure air conditioner becomes strictly mandatory here.
Proper airflow volume ensures sensitive electronics survive long production cycles. You calculate this air volume using Cubic Feet per Minute (CFM) or cubic meters per hour. Guessing fan sizes frequently leads to overheated components or wasted electricity.
You must rigorously quantify the internal heat generation first. Sum the heat dissipation ratings of all internal components. Check the technical data sheets for variable frequency drives. Add the heat output of power supplies and transformers. Include the programmable logic controllers and relays. This comprehensive total represents your internal heat load in Watts.
You establish your strict maximum thermal boundaries here. Find the maximum allowable internal temperature for your most sensitive component. This often sits around 104°F (40°C) for sensitive logic controllers. Determine the maximum expected ambient facility temperature during summer months. Subtract the ambient maximum from the internal maximum. This final difference equals your Temperature Delta (ΔT).
Use industry-standard math to find your absolute baseline airflow requirements. Input your Watts and Delta T into the established equations below.
Measurement System | Standard Formula | Variables Explained |
|---|---|---|
Imperial (CFM) | CFM = (3.16 x Total Watts) / ΔT (°F) | ΔT = Internal Max °F - Ambient Max °F |
Metric (m³/h) | m³/h = (3.1 x Total Watts) / ΔT (°C) | ΔT = Internal Max °C - Ambient Max °C |
Cooling units never operate in empty, unobstructed spaces. The enclosure contains dense component layouts and thick wireways. These internal layouts create physical obstacles to smooth airflow. Exhaust louvers and dense inlet filters restrict airflow heavily. This combined resistance causes measurable static pressure drops. You must increase your calculated baseline CFM by 20–25%. This safety buffer accurately offsets the inevitable system impedance.
Selecting the physical hardware requires evaluating multiple performance vectors. You must look beyond simple CFM ratings to ensure long-term reliability. We recommend evaluating every prospective unit against these five essential criteria.
Static Pressure and Filter Integration: Exhaust and inlet filters keep out harmful industrial dust effectively. However, they severely restrict vital airflow into the enclosure. Standard axial fans often stall against this heavy resistance. Cooling units must feature steep, high static pressure performance curves. They must pull air efficiently through dense, dirty filter media without losing RPM.
Ingress Protection (IP & NEMA Standards): Environmental hazards quickly destroy unprotected electronics. Ensure the cooling unit housing matches the cabinet rating perfectly. IP54 and IP55 ratings work excellently for general industrial dust. They handle light water splashing easily. NEMA 4 and 4X standards fit intense, high-pressure washdown environments. Food processing and pharmaceutical facilities strictly require these robust ratings.
Smart Controls (PWM / 0-10V): Modern electronics require highly adaptable cooling strategies. Leverage advanced EC motor capabilities fully. Evaluate models accepting 0-10V analog control inputs. Look for PWM signal compatibility as well. A smart cabinet thermostat scales fan RPM dynamically based on heat. This intelligent modulation reduces acoustic noise significantly. It minimizes power draw drastically when thermal loads remain low.
Bearing Technology & L10 Lifespan: Mechanical durability absolutely determines your routine maintenance schedules. Specify dual ball bearings over standard sleeve bearings always. Industrial enclosures experience heavy machinery vibration and continuous duty cycles. Sleeve bearings dry out and fail rapidly under these conditions. Look for verified L10 life expectancies from manufacturers. They should exceed 40,000 continuous hours at 40°C easily.
Regulatory Certifications: Safety compliance remains absolutely non-negotiable in industrial environments. Verify official UL recognition marks on the motor housing. Check for strict European CE compliance. Ensure global RoHS adherence regarding hazardous materials. Substandard components pose severe fire risks to the entire facility. The cooling component must never compromise your overall enclosure safety certifications.
Even perfectly sized hardware fails during bad installations. Mechanical layout dictates the final thermal success of the enclosure. Avoid these frequent engineering mistakes to ensure optimal heat extraction.
Technicians often place vents incorrectly during the fabrication process. Placing inlet and exhaust vents too close together ruins cooling efficiency. Cooled air enters the enclosure and exits almost immediately. It escapes quickly before circulating over heat-generating components. You must force incoming air across the entire internal volume. Place vents diagonally across the enclosure to maximize the airflow path.
Natural physics should heavily assist your active cooling strategy. Standard industrial best practice utilizes a pull configuration primarily. Place the cooling unit near the top of the cabinet. It vigorously exhausts rising hot air outwards into the facility. Install a filtered inlet grille at the extreme cabinet bottom. This layout leverages natural thermal convection beautifully. Cold air enters low, sweeps upward across hot components, and exits high.
Neglected filters destroy expensive equipment predictably and quietly. A clogged inlet filter drastically reduces actual CFM delivery. It starves the internal components of vital cooling air. This renders your careful sizing calculations entirely useless. Implement proactive, strict maintenance schedules immediately. Alternatively, utilize smart EC motors featuring built-in tachometer outputs. They monitor operational speed continuously. They trigger system alarms immediately when RPM drops unexpectedly due to clogs.
Specifying the right components requires careful engineering balance and foresight. You must meticulously weigh internal heat loads against facility ambient conditions. You absolutely must factor in system airflow impedance and tight component layouts. You ensure strict compliance with IP requirements to prevent environmental contamination. Making the correct decisions upfront prevents costly downtime later.
Advise your engineering teams to act proactively today. Audit your current enclosure thermal loads meticulously. Utilize standard CFM calculators to establish precise baseline airflow requirements. Request detailed specification sheets and static pressure curves from manufacturers. Always source reliable thermal management components from reputable global suppliers to guarantee longevity.
A: Yes, you can easily retrofit them in most scenarios. EC fans accept standard AC input voltage directly. This design makes them a simple drop-in electrical replacement. You simply need to ensure the physical mounting dimensions and screw hole patterns align properly with your existing cabinet cutouts.
A: You typically save between 30% and 70% in overall energy consumption. The exact amount depends heavily on your operational strategy. Running the unit continuously at full speed yields lower relative savings. Modulating speed dynamically via smart controls maximizes your electrical efficiency significantly.
A: It will compromise the rating unless you choose the right components. You must install a fully integrated fan-and-filter package. The manufacturer must specifically rate this sealed package to maintain your enclosure's exact NEMA or IP classification against dust and water ingress.
