Modern ventilation systems rely on precision and adaptability. You need equipment to deliver exact airflow on demand without wasting energy. A 0-10V EC fan achieves this by allowing seamless speed adjustments through a simple analog signal.
The industry has largely shifted away from inefficient AC induction motors. Today, professionals favor Electronically Commutated (EC) technology for strict airflow management. However, installing these motors often presents a distinct bottom-of-funnel challenge. Integrators must bridge the gap between hardware selection, controller compatibility, and safe electrical implementation. This applies across commercial building networks and localized smart home setups.
In this guide, we explore the mechanical principles behind analog fan control. You will learn how to evaluate sinking and sourcing compatibility to avoid logic board damage. We will also examine critical wiring realities. This ensures you can deploy your ventilation system safely and effectively.
Linear Control: 0-10V control inputs dictate motor RPM directly, scaling airflow proportionally from 0% (or minimum speed) to 100% capacity based on voltage.
Integration Flexibility: A variable speed EC fan accepts standardized 0-10V signals, making it natively compatible with commercial Building Management Systems (BMS), MVHR units, and smart home IoT relays (e.g., Z-Wave, Zigbee).
Implementation Risks: Successful deployment requires strict attention to electrical isolation between mains power and the low-voltage control circuit, as well as matching controller impedance to the fan motor.

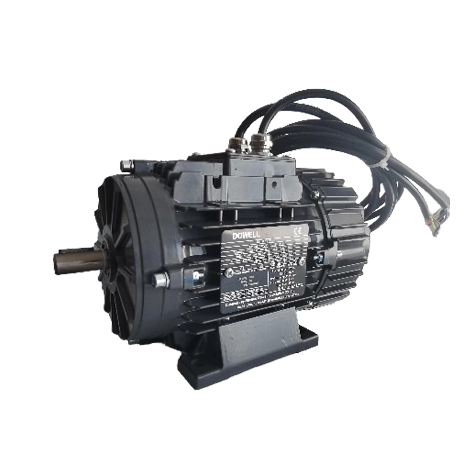

An EC motor combines the best elements of AC and DC technology. You supply the motor with standard AC mains power. Inside the motor casing, an internal rectifier converts this AC power into DC. A built-in microprocessor then manages the motor rotation. This logic board provides the foundation for precision control.
The internal microprocessor reads a separate low-voltage DC analog signal. This signal ranges from 0 volts to 10 volts. The logic board translates this incoming voltage into a specific rotational speed. If you send 5V to the control circuit, the microprocessor adjusts the motor to run at roughly 50% of its maximum RPM. This direct translation ensures highly predictable airflow adjustments.
Because the logic board handles the heavy lifting, you gain granular control over the ventilation system. The microprocessor continuously monitors the rotor position. It adjusts power delivery to maintain the requested RPM, even if static pressure changes slightly within the ductwork.
Not all analog fans behave identically at the lowest voltage ranges. You must understand manufacturer assumptions regarding deadbands. A deadband represents a specific voltage range where the motor takes no new action.
Many systems use a 1-10V control logic. In these setups, any voltage between 0V and 1V acts as an off-state or a standby state. The motor will not spin. Once the signal crosses the 1V threshold, the fan activates at its minimum operating speed. As you increase the signal toward 10V, the RPM scales proportionally up to its maximum limit.
Other setups maintain a strict 0-10V logic. They might interpret 0V as a command to run at a factory-set minimum idle speed rather than shutting off completely. Always consult the specific motor data sheet to understand how it handles signals below 1V.
Standard Voltage Translation Chart
Control Voltage (V DC) | Expected Motor Behavior | Airflow Output Estimate |
|---|---|---|
0.0V - 1.0V | Standby mode / Motor off (Deadband) | 0% |
2.0V | Minimum active rotation | ~20% |
5.0V | Mid-range rotation | ~50% |
8.0V | High-speed rotation | ~80% |
10.0V | Maximum rated rotation | 100% |
You might wonder why we prefer 0-10V analog signals over other control methods. Traditional AC phase-cut dimming, often called Triac control, works well for incandescent lightbulbs. However, it severely damages EC motors. Triac dimmers chop the AC waveform to reduce power. This irregular power delivery causes excessive heat, severe motor humming, and rapid electronic failure inside an EC logic board.
Pulse Width Modulation (PWM) offers a safe alternative, but it introduces complexity. PWM requires the controller to generate a high-frequency square wave. Many standard commercial building controllers do not output PWM natively. The 0-10V standard emerged as the most reliable, universally supported method for low-noise, high-efficiency regulation across the HVAC industry.
Modern building designs require dynamic airflow management. A variable speed EC fan excels in environments where ventilation needs fluctuate throughout the day. By adjusting speed automatically, you improve indoor air quality while reducing acoustic noise.
Commercial Air Handling Units (AHU) rely heavily on precise pressure and volume control. You can integrate analog EC fans directly into these massive systems. The Building Management System (BMS) outputs a 0-10V signal based on building occupancy schedules.
Mechanical Ventilation with Heat Recovery (MVHR) systems also utilize this technology. MVHR units extract stale indoor air while drawing in fresh outdoor air. They pass both streams through a heat exchanger. You can connect 0-10V environmental sensors directly to the fan controllers. Common implementations include:
CO2 Sensors: When conference rooms fill with people, CO2 levels rise. The sensor increases its voltage output. The fan speeds up automatically to introduce more fresh air.
Humidity Sensors: In commercial bathrooms or industrial kitchens, rising moisture triggers a higher control voltage. The fan clears the humid air rapidly.
Temperature Sensors: Server rooms rely on strict thermal limits. As equipment generates heat, the analog signal ramps up fan RPM to maintain safe operating temperatures.
Residential users increasingly demand commercial-grade ventilation. Enthusiasts integrate these advanced fans into smart environments like Hubitat or Home Assistant. This allows you to write complex logic rules. For instance, you can program the fan to run at 20% speed during nighttime hours for silent air circulation.
When cooking or showering triggers an indoor air quality alert, the smart hub sends a command to increase ventilation. The system automatically steps the fan up to 80% capacity. Once air quality normalizes, the system steps the speed back down. This creates a truly automated, demand-controlled environment.
Integrating a smart hub with an analog fan requires specific hardware bridging. Smart hubs communicate via digital protocols like Zigbee or Z-Wave. The fan requires a physical DC voltage. You must use specialized IoT relays or smart dimmers to bridge this gap.
Modules from brands like Shelly or Zooz act as the perfect intermediaries. You wire the module to the fan's control terminals. The smart hub sends a digital Z-Wave command to the module. The module then outputs the corresponding 0-10V analog signal to the motor. This seamless device bridging unlocks endless automation possibilities without compromising the motor's internal electronics.

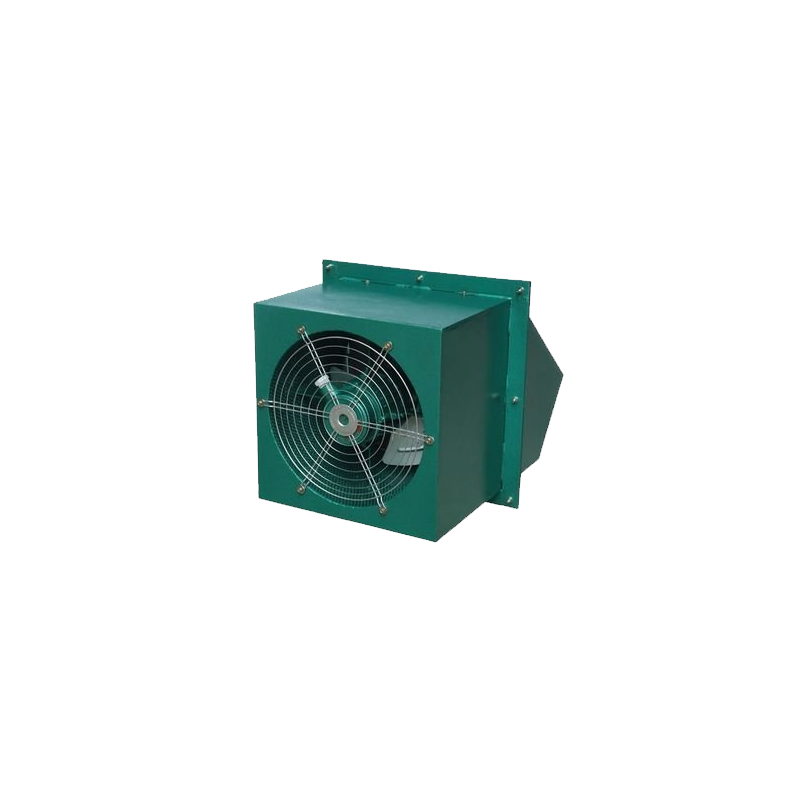

Selecting the right control hardware goes beyond matching plugs. You must evaluate the underlying electrical characteristics of both the motor and the controller. Failing to verify these details leads to erratic fan behavior or total control failure.
You must understand the electrical distinction between sinking and sourcing. This determines which device provides the actual DC control voltage.
In a sourcing fan setup, the fan logic board generates its own 10V reference voltage. It pushes this voltage out through a dedicated wire. The external controller acts passively. It simply resists or "sinks" this voltage to drop it to the desired level before returning it to the fan. A basic manual wall potentiometer works perfectly here.
In a sinking fan setup, the fan does not generate any control voltage. It waits for an external device to supply the signal. The controller must be "active." It must generate the 0-10V signal and push it to the fan's input terminals. If you pair a passive potentiometer with a sinking fan, the fan will never spin because no voltage exists in the control loop.
Controller Signal Comparison Chart
System Characteristic | Active Sourcing Controller | Passive Sinking Controller |
|---|---|---|
Voltage Origin | Controller generates 0-10V | Fan provides 10V reference |
Component Type | Smart dimmers, BMS analog outputs | Manual rotary potentiometers |
Fan Compatibility | Requires a "sinking" fan input | Requires a "sourcing" fan output |
Complexity | Requires external DC power supply | Simple two-wire resistance loop |
Your choice of controller dictates the user experience. Manual 0-10V wall potentiometers offer rugged simplicity. They require no programming. You simply turn the dial to adjust airflow. They work exceptionally well in workshops or basic industrial settings.
Digital BMS outputs provide centralized control for large buildings. The facility manager can monitor and adjust hundreds of fans from a single dashboard. Smart dimmers offer localized digital control. They look like standard light switches but contain microprocessors to output exact analog voltages. They bridge the gap between manual convenience and smart automation.
You must check the fan’s input impedance against the controller’s output capacity. Impedance measures electrical resistance. If a controller attempts to drive multiple EC fans simultaneously, the combined impedance drops.
If the impedance falls too low, the controller cannot maintain a true 10V output. The signal might top out at 7V due to voltage drop. As a result, your fans will never reach full speed. Always verify how many milliamperes (mA) the controller can supply and how many mA each fan draws on its control circuit.
Physical installation introduces severe risks if improperly managed. Connecting wires incorrectly can destroy expensive equipment in milliseconds. You must adhere to strict wiring protocols.
You face a hard truth when wiring ventilation systems. You must strictly isolate mains power (120V/240V AC) from the 0-10V DC control lines. Galvanic isolation prevents hazardous high voltage from bleeding into low-voltage circuits.
Some cheap, uncertified controllers do not provide adequate isolation. If a fault occurs, AC voltage can travel down the DC control wires directly into the fan's microprocessor. This instantly fries the logic board. Always verify that your selected controller features true optical or galvanic isolation between the mains switching relay and the analog output terminals.
Analog signals are highly susceptible to Electromagnetic Interference (EMI). Industrial environments generate massive magnetic fields. If you run your low-voltage control wire parallel to heavy AC power cables, the AC cables induce rogue voltages into the DC line.
This interference causes erratic fan speeds. The microprocessor might interpret induced electrical noise as a command to speed up or slow down randomly. To prevent this, we strongly recommend using shielded twisted-pair cables for all 0-10V lines. You must also ground the shield at one end only. Furthermore, avoid running control cables and mains cables in the same conduit, especially on long cable runs.
We must explicitly debunk the most common installation error. You cannot use a standard lighting dimmer switch for an EC motor. Standard dimmers alter the AC mains voltage by chopping the sine wave.
EC fans require uninterrupted, clean AC mains power at all times to run their internal electronics. You modulate speed exclusively via the separate low-voltage control wire. Connecting an AC phase-cut dimmer to the mains input of an EC motor will damage the internal rectifier and void your warranty. Always ensure you are modulating the 0-10V signal, not the main power feed.
Choosing the correct equipment requires a methodical approach. You cannot rely on guesswork when integrating specialized hardware. Build a clear evaluation framework before making procurement decisions.
Establish a strict checklist based on the physical demands of your environment. You must evaluate the fan's mechanical capabilities before looking at the electronics.
Airflow Volume: Calculate your required volume in CFM (Cubic Feet per Minute) or m³/h. Ensure the fan can meet this demand at its 10V maximum state.
Static Pressure: Ductwork, filters, and bends create resistance. Verify the fan's pressure curve to ensure it pushes enough air through your specific duct layout.
IP Protection Ratings: Assess the installation environment. If the fan sits outdoors or in a humid wash-down area, you need an IP55 or higher rating to protect the electronics from water and dust ingress.
Ensure your selected fan shares protocol compatibility with your existing infrastructure. Some fans only accept PWM signals and require a third-party PWM-to-analog converter to read a 0-10V input. This adds unnecessary failure points.
Look for motors that natively support 0-10V analog inputs out of the box. Verify whether the fan requires a sourcing or sinking controller, and cross-reference this with your BMS or smart home module capabilities. A matched ecosystem guarantees smooth commissioning.
Never compromise on hardware certifications. Select equipment with recognized regional safety marks. In Europe, ensure the device carries a genuine CE mark. In North America, look for UL or ETL listings.
These certifications prove the manufacturer implemented proper electrical safeguards, including fire-resistant materials and safe isolation barriers. Meeting commercial or residential building codes protects your property and ensures the installation passes municipal inspections.
Deploying an analog-controlled ventilation system drastically improves environmental management. By delivering exact airflow proportional to a simple DC voltage, you optimize energy consumption and maintain superior indoor air quality. The technology provides unparalleled flexibility across commercial networks and smart residential platforms.
However, successful integration relies entirely on meticulous planning. You must match controller impedance, verify sinking or sourcing requirements, and enforce strict galvanic isolation during wiring. Neglecting these steps risks equipment failure and poor performance.
Take action before starting your next installation. Always pull the technical data sheets for both your fan and your intended controller. Verify their electrical compatibility, plan your isolated cable routes, and ensure your system meets local safety standards. Proper preparation guarantees a flawless, high-efficiency ventilation setup.
A: No. Standard lighting dimmers alter the AC mains voltage by chopping the power wave. EC fans require uninterrupted AC mains power to run their internal electronics. You must use a dedicated 0-10V controller connected to the separate low-voltage signal wires.
A: It depends on the specific fan's firmware. Some models stop completely when the signal drops into the 0-1V deadband. Other models default to a minimum base idle speed (e.g., 10% RPM) for continuous ventilation unless you cut the AC power via a relay.
A: Voltage drop limits cable length. For basic setups, runs under 30 meters generally perform well using standard 18 AWG wire. For longer distances, resistance causes the 10V signal to degrade, reducing maximum fan speed. Use thicker wire gauge, shielded cables, or signal amplifiers for extended runs.
