For OEM procurement and engineering teams, under-specifying a cooling component often leads to critical system failures. You risk aggressive thermal throttling, delayed product launches, or severe compliance roadblocks. Transitioning to or integrating a custom EC fan requires precise alignment between departments. You must balance aerodynamic performance against strict mechanical, environmental, and commercial constraints. Standard off-the-shelf units rarely meet the specialized demands of complex industrial, telecom, or commercial enclosures.
This guide provides a comprehensive, engineering-aligned checklist. We help you define specifications, mitigate global supply chain risks, and secure a reliable manufacturing partner. You will learn exactly how to navigate baseline performance metrics, integration hurdles, and essential regulatory demands. By structuring your project requirements clearly, you establish a resilient foundation for your next hardware rollout.
Exact aerodynamic requirements (CFM vs. static pressure) must be paired with specific control protocols (PWM, 0-10V, tachometer).
Custom mechanical integrations, particularly wiring harnesses and connectors, directly impact lead times and MOQs.
Environmental limits (IP ratings, temperature ranges) dictate material selection and motor potting requirements.
Commercial specifications—such as prototyping timelines, scalable MOQs, and regional compliance (UL, CE, ErP)—are as critical as technical specs for OEM buyers.
Before considering physical dimensions, you must establish the exact aerodynamic work your cooling unit needs to perform. Vague airflow targets frequently result in inadequate thermal management.
Many buyers mistakenly specify only the maximum free-air CFM (Cubic Feet per Minute) when submitting an RFQ. This represents a significant engineering oversight. Free-air ratings measure performance in an open space containing zero resistance. Your actual product features enclosures, dense PCB layouts, dust filters, and heat sinks. These physical obstacles create internal system impedance.
Instead of quoting maximum airflow, specify the exact operating point needed on the P-Q (Pressure-Volume) curve. Detail the specific system impedance your custom unit must overcome to maintain optimal operating temperatures. Manufacturers need these data points to match the correct impeller pitch and motor torque to your real-world application.
Electrical baselines dictate the internal architecture of the motor controller. You need to define the nominal operating voltage clearly. Common DC applications use 24V or 48V inputs. If your system runs on mains power, you might specify 115V or 230V AC inputs. EC (Electronically Commutated) technology inherently includes internal AC/DC conversion, allowing the unit to run efficiently on alternating current while leveraging direct current motor benefits.
Outline your maximum acceptable power draw. Modern industrial systems face rigorous energy efficiency audits. Defining strict efficiency targets ensures the final assembly complies with system-level energy ratings mandated by end-users or regional regulators.
Advanced thermal management relies on dynamic speed adjustment. Specify your required control inputs early in the design phase. A PWM (Pulse Width Modulation) signal allows precise digital speed control, while a 0-10V analog input suits legacy industrial controllers.
Feedback mechanisms are equally vital for system safety. Define your tachometer output requirements, including the specific frequency or pulse rate needed for accurate RPM monitoring. We strongly recommend specifying locked-rotor alarm signals. If an obstruction stops the impeller, this signal alerts the main controller immediately, preventing localized overheating or motor burnout.

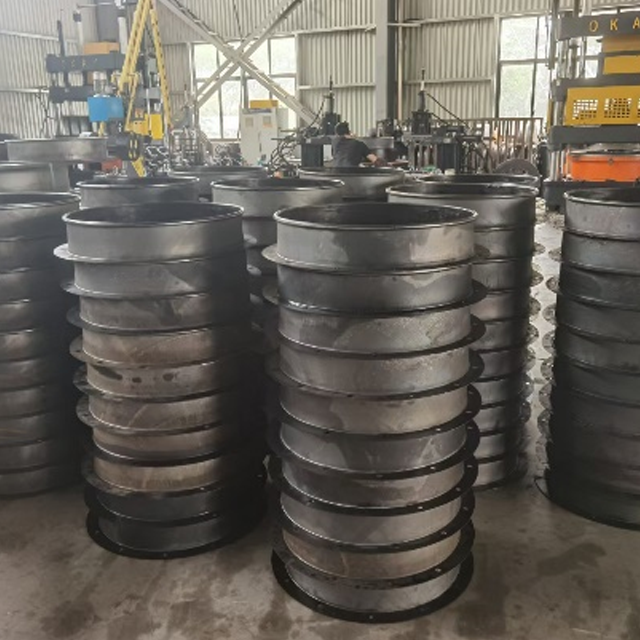

Once you secure the aerodynamic and electrical baselines, the focus shifts to physical integration. Neglecting mechanical tolerances often forces costly late-stage redesigns.
Specify the absolute maximum allowable dimensions for Length, Width, and Depth. Even a few millimeters of excess housing can prevent proper assembly. Detail your mounting hole configurations carefully. Specify thread types if applicable, and outline any vibration isolation requirements to prevent structural resonance.
You must also identify the preferred impeller architecture. Determine whether your system requires an axial design for high-volume straight airflow, or a centrifugal blower for high-pressure 90-degree directional flow. For centrifugal setups, specify if backward or forward-curved blades best match your pressure requirements.
The wiring harness represents one of the most frequently underestimated elements in a OEM EC fan project. Clearly outline the exact wire length from the motor housing to the termination point. Define the required wire gauge (AWG) and specify the insulation ratings necessary for your application, such as UL1007 standard wire or Teflon insulation for high-heat environments.
Specify exact connector part numbers. Whether you require standard Molex, JST headers, or bare leads for direct PCB soldering, this detail is crucial. Common mistake: Failing to standardize connector requests. Custom or niche connector requirements act as a primary driver of high Minimum Order Quantity (MOQ) thresholds, as manufacturers must purchase connector reels in bulk.
Housing and impeller materials directly influence unit weight, rigidity, and environmental resilience. Standard electronics typically utilize PBT plastic (Polybutylene Terephthalate) reinforced with fiberglass. This provides an excellent balance of weight and structural integrity. Conversely, heavy industrial environments or high-vibration telecom enclosures often require aluminum die-cast housings to survive impacts and extreme temperatures. Base your material specifications on strict weight limits and mechanical stress tolerances.
A cooling component is only as reliable as its ability to withstand its deployment environment. Environmental specifications dictate fundamental manufacturing techniques.
Exposure to dust, moisture, and water jets destroys standard motors rapidly. Specify your required Ingress Protection rating clearly. Applications like outdoor telecom cabinets or HVAC condensers typically require IP54, IP55, or IP68 certification.
Understand the engineering trade-offs involved in environmental sealing. Achieving higher IP ratings (like IP68) requires extensive motor encapsulation or potting. While potting protects sensitive electronics from water ingress, it restricts internal heat dissipation. The manufacturer may need to derate the motor slightly or adjust the winding design to prevent the encapsulated motor from overheating. This process can impact both aerodynamic output and unit cost.
IP Rating | Solid Protection | Liquid Protection | Typical Application |
|---|---|---|---|
IP54 | Dust protected (limited ingress) | Splashing water from any direction | Indoor industrial cabinets, cleanrooms |
IP55 | Dust protected (limited ingress) | Low-pressure water jets | Covered outdoor electronics, mild HVAC |
IP68 | Dust tight (no ingress) | Continuous immersion under pressure | Harsh outdoor telecom, heavy marine use |
Define exact operating and storage temperature ranges. Storage temperatures matter deeply, as devices shipped via ocean freight may experience extreme cold or heat before installation.
Establish maximum acoustic noise limits measured in dBA at a specific distance (typically 1 meter). Furthermore, detail if the psychoacoustic profile matters. Raw dBA measurements do not capture annoying high-pitched motor whines or bearing rattles. If your product sits in an office or medical environment, require manufacturers to suppress specific unpleasant sound frequencies.
Sleeve bearings degrade quickly under heat or non-horizontal mounting conditions. For industrial OEM applications, specify dual ball bearings as the standard requirement.
You must also define the required L10 lifespan. The L10 metric represents the amount of time (in hours) at which 10% of the units in a given sample will fail under specific conditions. Frame this precisely: for example, specify a requirement of "70,000 hours at 40°C." This ensures the manufacturer selects high-quality lubricants and bearing brands that match your product's intended lifecycle.
Entering international markets requires rigorous compliance. Discovering certification failures during late-stage assembly causes massive logistical headaches.
Specify required agency approvals prior to requesting quotes. North American markets typically demand UL or cUL recognition. European deployments require CE marking, while TUV certification remains highly respected globally. Informing the manufacturer of these requirements upfront ensures they design the stator, insulation, and PCB layout to pass these specific safety audits. Skipping this step often forces a complete mid-project redesign.
Supply chain transparency matters more than ever. Require comprehensive RoHS (Restriction of Hazardous Substances) and REACH compliance documentation to ensure your product contains no banned chemicals.
For European OEM projects, adherence to efficiency standards is non-negotiable. Specify adherence to the latest ErP (Energy-related Products) directives. ErP sets stringent efficiency thresholds for fans operated in the European Union. A motor that fails ErP compliance cannot be legally integrated into products sold within the EU.
Protect your brand by enforcing strict quality assurance parameters. Specify the required QA documentation before signing contracts. Essential requests include:
ISO 9001 Certificates: Verifies the facility maintains audited quality management systems.
CPK Data: Process Capability Index data proves the manufacturer can produce your specified tolerances consistently across mass production runs.
End-of-Line (EOL) Testing Reports: Ensures every single unit passes electrical and balance checks before packaging.
Technical perfection means little if commercial terms break your procurement budget. Clear communication regarding timelines and volume expectations builds a better vendor partnership.
Define an acceptable timeline for your project phases. Standard electrical modifications, such as changing a wire length or swapping a connector, typically require 2 to 4 weeks for initial engineering samples. Full-scale mass production often spans 8 to 12 weeks. If your design requires a fully custom impeller mold or distinct housing geometry, expect sample lead times to extend significantly. Setting realistic launch schedules prevents internal friction.
Establish realistic MOQ tiers early in negotiations. Address a common B2B pain point proactively: heavy customization triggers higher MOQs. Three factors usually drive these increases:
Custom Tooling: Unique plastic injection molds require substantial upfront capital.
Niche Connectors: Suppliers sell specific electronic connectors in massive reels (often 5,000+ pieces).
Specialized ICs: Custom motor controllers may require batch-ordered silicon.
Manufacturers use MOQs to offset these tooling and component costs. If you need low volumes, prepare to compromise on connector standardization or absorb excess inventory costs.
Global logistics remain unpredictable. Protect your production line by specifying requirements for alternative component sourcing. Request that the manufacturer validates alternative ICs in the motor controller. If their primary silicon supplier faces a shortage, pre-approved backup components keep your production running without triggering a new validation cycle.
Specifying a specialized cooling component is a complex balancing act. Procurement and engineering teams must harmonize aerodynamic output, environmental ruggedness, and commercial viability. Missing a single variable—from system impedance to connector MOQs—can disrupt your entire product timeline.
Take action by consolidating all the specifications discussed here into a formal Request for Quote (RFQ) document. When evaluating shortlisted manufacturers, challenge them to provide verifiable P-Q performance curves, transparent sample lead times, and clear MOQ structures. A highly detailed specification sheet serves as your best defense against supply chain friction and product failure.
A: Standard electrical modifications, such as adjusting connectors or wire lengths, typically take 1 to 3 weeks. However, if your project requires full custom mold designs for a unique impeller or specialized housing, the prototyping process can take 6 to 8 weeks.
A: Fan manufacturers must purchase connectors from tier-one suppliers like Molex or JST in full reels, which often contain 5,000 or more pieces. The resulting MOQ is typically aligned with this connector reel size unless the buyer is willing to absorb the excess inventory cost.
A: Fully potting the motor stator successfully protects against extreme water ingress, but it inherently reduces internal heat dissipation. Manufacturers must often adjust the motor winding structure or slightly derate the fan's maximum power to maintain thermal stability inside the encapsulated shell.
