Facility managers face immense operational pressure today. Aging HVAC infrastructure strains daily maintenance budgets heavily. Rising energy costs add massive financial burdens to operational expenses. Stricter efficiency mandates force urgent compliance updates across commercial portfolios. Authorities strictly enforce new ASHRAE guidelines and ErP directives. Older equipment simply cannot meet these modern regulatory standards. Building owners demand lower operational expenses year after year. Tenants expect highly reliable and whisper-quiet indoor environments.
Upgrading legacy systems often creates a difficult dilemma. You must choose between patching existing AC units or committing to a full upgrade. This decision carries major financial and operational consequences. Facility teams struggle to find the right balance. We provide a transparent, evidence-based evaluation framework below. You will discover exactly when an EC fan replacement justifies the capital expenditure. You will learn when alternative methods make more sense. We also explain how these modern upgrades compare to traditional fixes. This guide helps you navigate your next infrastructure improvement confidently.
Part-Load Dominance: EC fans deliver the most significant ROI in variable-load systems, using up to 70% less energy at partial speeds compared to traditional AC fans.
EC vs. VFD: Adding a Variable Frequency Drive (VFD) to an AC fan is a temporary fix; an EC fan replacement eliminates belt/pulley maintenance and parasitic drive losses.
Beyond Energy: Upgrading to EC technology inherently upgrades system control (native 0-10V/Modbus), reduces physical footprint, and lowers acoustic footprints.
Payback Period: High-uptime environments (like data centers) typically see ROI on an AC fan replacement within 12 to 24 months.
Traditional AC induction motors limit overall system efficiency severely. Manufacturers design them for peak efficiency only at full operational speed. They waste significant power during lower demand periods. These motors rely on magnetic slip to function. This mechanical reality creates inherent energy losses constantly. Building loads fluctuate constantly throughout the day. Older AC motors cannot adapt efficiently to these shifting conditions. They consume unnecessary power just to keep spinning.
Electronically Commutated (EC) motors solve this fundamental issue directly. They combine standard AC power inputs internally. They transform this power into direct current (DC) voltage seamlessly. They use a built-in electronic rectifier for this conversion. This hybrid approach unlocks highly precise speed control. You get the efficiency of a DC motor safely. You also retain the convenience of plugging into standard AC building grids.
The critical evaluation metric remains part-load efficiency. Airflow requirements follow the affinity laws. A small reduction in fan speed yields massive energy savings. However, AC motor efficiency drops drastically at 50% speed. An EC motor maintains a near-flat, high-efficiency curve. It adjusts its output precisely to meet current demand. This dynamic response reduces energy waste significantly. Engineers heavily favor this technology for variable airflow applications. The operational difference becomes undeniable.

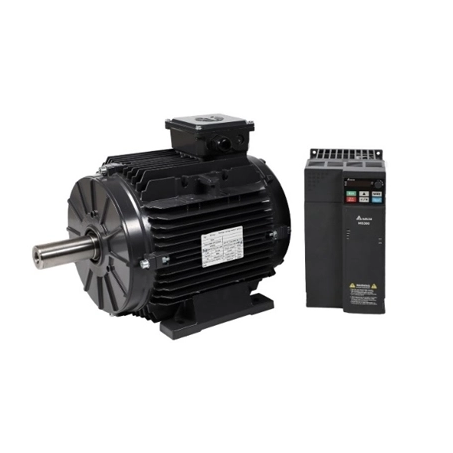

Facility teams often face a common operational bottleneck. They struggle deciding between retrofitting an existing AC motor or replacing the entire unit. Many consider adding a Variable Frequency Drive (VFD) first. An AC and VFD combination often presents a lower immediate initial cost. However, it introduces unwanted system complexity over time. You essentially patch an outdated system temporarily.
Traditional AC systems rely heavily on belts, pulleys, and bearings. These components remain highly prone to mechanical wear. Belts stretch and slip regularly. This slippage destroys up to 10% of system efficiency instantly. Bearings require frequent greasing and routine inspections. EC fans utilize a direct-drive mechanism instead. They eliminate power transmission losses entirely. They also remove routine mechanical maintenance requirements from your busy schedule. Your maintenance team reclaims hundreds of labor hours annually.
VFDs also create hidden electrical issues inside your mechanical rooms. They often induce harmonic distortion within the building power supply. The switching frequencies generate destructive bearing currents inside the older motor. These currents pit the metal and cause premature bearing failure. EC motors structurally avoid these electrical footprint problems completely. Their integrated electronics handle speed adjustments cleanly and safely.
We recommend using a simple decision matrix. Check the age of your existing equipment thoroughly. If the AC motor is nearing its end-of-life, skip the VFD. A motor older than seven years rarely justifies partial upgrades. You should opt for a full EC fan replacement instead. This definitive path guarantees long-term reliability and vastly superior performance.
Comparison Matrix: VFD Retrofit vs. Full Unit Replacement
System Characteristic | AC Motor + External VFD | Full EC Motor System |
|---|---|---|
Initial Capital Cost | Lower upfront investment | Higher upfront investment |
Mechanical Maintenance | High (Belts, Pulleys, Grease) | Minimal (Direct Drive) |
Electrical Complications | High (Harmonics, Bearing Currents) | Low (Structurally Avoided) |
Overall System Complexity | High (Multiple discrete components) | Low (All-in-one integrated design) |
Technical features must align directly with concrete business outcomes. You need clear success criteria to justify the capital investment. Measurable energy reduction sits at the absolute top. We must establish a strict baseline for calculating payback periods. Many local utility companies offer substantial financial rebates. They reward facilities directly for upgrading to modern EC technology. They pay you to reduce peak grid loads. These lucrative incentives shorten your return on investment timeline significantly.
Maintenance elimination provides another major financial driver. You can quantify the specific labor hours saved easily. Your maintenance team no longer performs belt tensioning routines. They stop greasing bearings on a strict monthly schedule. They avoid complex VFD troubleshooting tasks entirely. You remove these heavy burdens from your Preventive Maintenance (PM) schedules. Your technicians can focus on proactive building improvements instead. This labor reallocation saves significant operational budget.
Space and acoustic optimization offer highly unexpected advantages. Modern upgrades often save much more than just energy. EC fans require significantly less installation depth. This compact footprint matters deeply for tight commercial building retrofits. You often reclaim valuable square footage inside mechanical rooms. They also generate considerably less tonal noise. Older forward-curved fans rumble loudly. Modern EC units operate smoothly. Quiet operation improves tenant satisfaction in occupied office spaces dramatically.
These units also feature excellent Building Management System (BMS) integration readiness. They include native Modbus and BACnet communication capabilities. This allows for granular, real-time thermal management across your facility. You achieve precise environmental control smoothly. You avoid purchasing expensive add-on controllers entirely. Seamless data integration ensures a highly successful AC fan replacement project.
Specific building applications heavily favor EC technology adoption. The cost-benefit analysis overwhelmingly points toward immediate replacement. Certain environments simply cannot tolerate legacy equipment limitations anymore. Data centers and precision cooling environments lead this specific list. Facilities utilizing CRAC and CRAH units face stringent Power Usage Effectiveness (PUE) targets. These sensitive systems operate continuously throughout the entire year. They experience dynamic and highly unpredictable thermal load shifts. This continuous 24/7 operation makes data centers the fastest environment for realizing rapid ROI. Server racks demand absolute reliability.
Variable Air Volume (VAV) systems also benefit immensely from these upgrades. Commercial office buildings experience constantly shifting occupancy loads. Meeting rooms fill up and empty throughout the busy day. System fans rarely need to run at 100% full capacity. EC technology adapts to these changing pressure conditions perfectly. They slow down during low occupancy seamlessly. They ramp up instantly when loads increase.
Cleanrooms and healthcare facilities require highly precise airflow control always. They demand absolute strict environmental stability. They also enforce a zero-tolerance policy for belt-dust contamination. Standard AC units shed tiny rubber particles as belts wear down. Direct-drive EC units eliminate particulate generation completely. They keep sterile hospital environments safe and strictly compliant. They easily adapt to changing static pressures across HEPA filters.
Strict compliance deadlines often force facility managers into immediate action. Local governments strictly enforce updated energy consumption ratings. Facilities face heavy financial fines for ignoring mandates like the EU ErP 2015/2020 directives. Older systems trigger operational restrictions rapidly. Falling out of compliance jeopardizes your building occupancy permits. Upgrading resolves these legal and regulatory pressures immediately. Proactive replacement proves far cheaper than eventual non-compliance penalties.
We must acknowledge the natural friction points of technology adoption. No system upgrade process happens without some engineering hurdles. EC fans require a noticeably higher upfront investment. You must justify this initial capital expenditure carefully to stakeholders. Do not look solely at the raw sticker price. Evaluate comprehensive long-term financial modeling and guaranteed energy savings instead. A broader financial view reveals the true lifecycle value.
Structural adaptations present another very common field reality. A simple plug-and-play physical swap rarely occurs in older systems. The physical mounting footprints differ entirely. You often need custom adapter plates for proper bulkhead mounting. Your installation team might require specific structural modifications inside the air handler. Aerodynamic profiling ensures optimal airflow performance post-installation. You may need specialized inlet rings to help the new fan hit its performance data. Rushing the physical installation degrades system efficiency rapidly.
Electrical and control re-wiring demands careful engineering planning. You are moving from simple on/off magnetic contactors. You now utilize variable analog or digital communication signals. This fundamental transition can cause control integration friction. Legacy Building Management Systems sometimes struggle initially. Ensure your specific communication protocols match perfectly before installation begins.
Internal airflow dynamics will also change significantly during the upgrade. You might replace an older forward-curved AC centrifugal fan. You will likely install a modern backward-curved EC plug fan. This swap alters the internal system pressure profile entirely. The air leaves the fan differently. Proper system balancing remains an absolute requirement post-install. You must verify actual airflow delivery across all building zones carefully.
Follow these specific steps to minimize common retrofit risks:
Survey the existing mechanical space dimensions thoroughly before ordering.
Verify your BMS communication protocol compatibility early.
Source custom mounting hardware and adapter plates proactively.
Schedule a professional air balancing contractor for post-installation verification.
Our evaluation framework helps clarify your final engineering decision. Evaluate your system's total operational hours first. If your equipment runs constantly, the financial savings multiply rapidly. Next, look closely at your building's thermal load variability. Systems handling fluctuating demands waste massive amounts of energy at partial speeds. Finally, check your existing mechanical components. If you rely heavily on aging, belt-driven infrastructure, your maintenance burdens will only increase. These three factors build a tremendously strong operational case. They clearly justify a comprehensive modernization strategy.
Actionable next steps help you move forward confidently:
Conduct a detailed energy audit of your existing equipment's power consumption.
Request a comprehensive ROI calculation from an experienced engineering partner.
Run a controlled pilot replacement on a single Air Handling Unit (AHU).
Validate your BMS integration and energy savings claims before authorizing a facility-wide rollout.
A: Payback periods typically range from one to three years. The exact timeline depends heavily on your daily operational hours. Systems running constantly achieve faster returns. High load variability also accelerates overall savings. Local energy rates and available utility rebate programs significantly influence the final financial calculation.
A: The grid power supply remains exactly the same. However, you cannot perform a direct physical swap. The mounting footprints differ significantly between technologies. Control wiring also requires updates. You will need specific retrofit kits, custom adapter plates, and modified bulkheads to ensure proper physical installation.
A: They share core similarities but operate differently. Both utilize direct current internally for high efficiency. However, EC units plug directly into standard alternating current grids. They use onboard electronics to convert the power natively. This built-in conversion makes them ideal for upgrading legacy building infrastructure.
A: Your existing drive becomes completely redundant. EC motors feature fully integrated speed control systems internally. You should bypass or remove the external drive entirely during installation. Removing it eliminates parasitic power losses immediately. It also simplifies your electrical footprint and prevents future harmonic distortion issues.
