Professional manufacturer of High-quality cooling fans
 |
| Quantity: | |
|---|---|

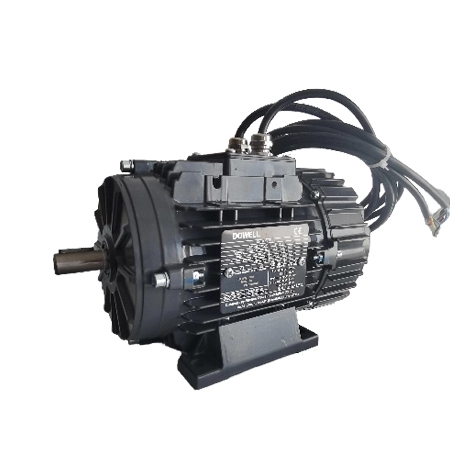

The variable speed inner rotor EC motor for ventilators is designed for efficient and reliable operation of ventilation systems. The motor provides stable power while reducing energy consumption.
It has a compact frame size for easy integration into ventilators. The motor supports single-phase and three-phase voltage input, which can be flexibly adapted to different installations.
The motor has high torque capacity and variable speed capability for flexible performance. It can run at different speeds, which enables precise control, reduced noise and increased user comfort.
The variable speed inner rotor EC motor is designed for durability and efficiency. It minimizes energy losses and extends the service life of the ventilation system.
The motor meets international safety and performance standards and is ideal for residential, commercial and industrial applications.
| Parameter | Value |
|---|---|
| Frame size | 80, 112 |
| Model | F80ECI09, F80ECI11, F112ECI16, F112ECI24, F112ECI28, F112ECI30 |
| Max. Torque (N.m) | 9, 11, 16, 24, 28, 30 |
| Max. Speed (r/min) | 1800, 1500, 1200, 900, 700, 650 |
| Max. Power (kW) | 1.7, 2.5, 3, 3.77, 2.04 |
| Working Voltage | 3ph360-460V 50/60Hz, 1ph200-240V |
Features of Variable Speed Inner Rotor Ec Motor For Ventilator
High efficiency: Inner rotor EC motors feature an electronically controlled commutation system that significantly improves efficiency compared to conventional AC motors. This reduces energy consumption, lowers operating costs and reduces the carbon footprint.
Low-noise operation: The internal rotor EC motor is designed with advanced rotor technology to ensure smooth and quiet operation. It minimizes vibrations and reduces noise, making it an excellent choice for environments such as residential and office spaces where low noise is required.
Compact Design: The inner rotor configuration allows for a more compact, lighter motor design without sacrificing performance. This makes it easier to integrate into space-constrained environments and reduces the overall size of the machinery or appliance.
Built-in protection: Inner-rotor EC motors come with advanced built-in protection against overheating and overcurrent, ensuring long-lasting durability and reliability in a wide range of operating conditions.
Variable Speed Control: Inner rotor EC motors feature integrated electronic controls that allow for variable speed regulation, providing flexibility for applications that require precise motor speed control.
Advantages of Variable Speed Inner Rotor Ec Motor For Ventilator
Energy-saving: Inner rotor EC motors are designed to optimize energy usage, resulting in significant savings on electricity bills. Its high efficiency means that energy losses are minimized, making it a great investment for long-term cost reduction.
Environmentally friendly: By reducing energy consumption, inner rotor EC motors contribute to environmental sustainability. It helps reduce CO2 emissions and meets the growing demand for environmentally friendly solutions in industrial processes and consumer products.
Extended service life: Due to their robust construction and efficient cooling system, inner rotor EC motors have a longer service life than conventional motors. Its durability makes it an affordable choice for original equipment manufacturers (OEMs) and end users.
Versatility: Internal rotor EC motors are highly versatile and can be tailored to the specific needs of a wide range of applications, from household appliances to large industrial systems. Its adaptability makes it suitable for a variety of environments and performance requirements.
Applications of Variable Speed Inner Rotor Ec Motor For Ventilator
Internal rotor EC motors are used in a wide range of industries due to their outstanding performance and energy efficiency. Some common applications include:
HVAC systems: It powers fans and compressors in air conditioning and ventilation systems, providing energy-efficient solutions for maintaining indoor air quality.
Household appliances: Inner rotor EC motors are used in washing machines, refrigerators and dishwashers to ensure quiet and efficient operation, helping to improve the performance of modern household appliances.
Industrial Equipment: Internal rotor EC motors are ideal for applications such as conveyors, pumps, and other machinery that require precise control and high efficiency to operate continuously.
Renewable energy: It is used in small wind turbines and solar systems where energy efficiency is critical to optimize performance and reduce operating costs.
Electric vehicles: With their compact design and efficient performance, internal rotor EC motors are becoming an increasingly popular choice for electric vehicle manufacturers looking to increase the efficiency and range of their vehicles.
FAQs of Variable Speed Inner Rotor Ec Motor For Ventilator
1. What are the advantages of using a variable speed inner rotor EC motor in ventilators?
The motor provides precise speed control, reduces noise and improves energy efficiency. It is ideal for applications that require variable airflow.
2. What voltage ranges does the variable speed inner rotor EC motor support?
It supports single-phase (1ph) and three-phase (3ph) voltages. The voltage range is 1ph200-240V and 3ph360-460V, making it suitable for different settings.
3. What is the maximum speed of the variable speed inner rotor EC motor?
The maximum speed varies by model. Some models can reach up to 1800 r/min.
4. What is the maximum torque that the motor can produce?
The motor can produce up to 30 N.m of maximum torque, depending on the model.
5. What applications are the variable speed inner rotor EC motor suitable for?
The motor is ideal for use in ventilators, HVAC systems and other equipment that requires precise motor control and energy efficiency.
