Moving from traditional AC motors to Electronically Commutated (EC) technology solves baseline efficiency. Modern infrastructure demands strict airflow regulation. Optimizing system performance relies entirely on your chosen control protocol. You might integrate a single variable speed fan into a localized HVAC unit. Alternatively, you might bridge multiple units into a Building Management System (BMS). Selecting the correct control method prevents signal degradation. It also eliminates communication blind spots. Industrial automation heavily depends on reliable data transmission. This guide breaks down the engineering realities behind various protocols. We explore implementation limitations for 0-10V, PWM, and RS485 control methods. We also provide strict shortlisting criteria. We will help you ensure reliable integration across any application. Understanding these protocols guarantees precise environmental control. It prevents frustrating operational failures down the line.
0-10V Analog: Offers straightforward, budget-friendly integration for standalone systems but suffers from voltage drop over long cable runs and lacks two-way communication.
PWM (Pulse Width Modulation): Provides high-precision digital control ideal for microcontroller-based custom PCBs, requiring careful matching of operating frequencies to prevent motor noise.
RS485 (Modbus RTU): The standard for enterprise scalability and smart-building integration, enabling daisy-chaining, RPM feedback, and real-time fault telemetry.
Decision Driver: Protocol choice should be dictated by cable distance, the necessity of system feedback, and the overarching automation environment (e.g., BMS, Zigbee/Z-Wave hubs, or localized dials).
Operating ventilation systems at full capacity wastes massive amounts of power. It also generates excessive acoustic noise. You rarely need peak airflow constantly. Building loads fluctuate based on occupancy and external temperatures. Effective EC fan speed control dynamically matches output to actual demand. This approach leverages the Fan Affinity Laws. These physical principles dictate how shaft speed impacts power consumption.

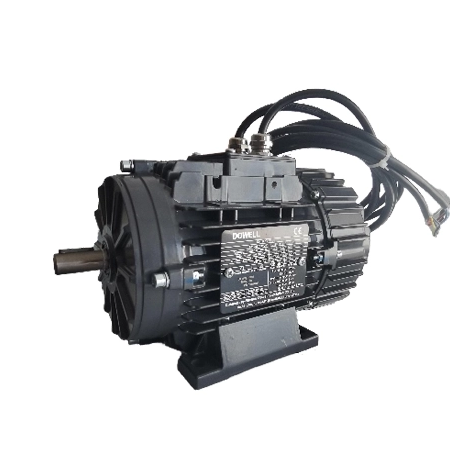

A 20% reduction in speed yields nearly a 50% reduction in power consumption. Power draw scales with the cube of the operating speed. You achieve significant efficiency gains immediately. Meanwhile, you maintain strict environmental parameters like airflow volume and static pressure. EC technology uses direct current and electronic commutation to drive the rotor. Unlike older induction motors, they do not rely on slip. This physical design inherently runs cooler. However, unlocking their full potential requires active regulation.
Moving beyond basic on/off relays requires careful engineering. You must match your controller’s output signal to the motor’s specific input tolerances. Ignoring these electrical tolerances causes premature component wear. It also triggers erratic RPM fluctuations during operation. Achieving stable operations requires understanding your chosen control signal deeply. System integrators must evaluate several technical criteria before installation.
Signal integrity over intended cable routing lengths.
Motor response profiles to various command input types.
The necessity of receiving real-time performance feedback.
Hardware compatibility between the primary automation hub and the motor electronics.
Building managers expect seamless automation. Engineers must deliver reliable signal pathways. The transition from alternating current designs to modern electronic commutation opens new possibilities. You simply need the right communication standard to unlock them.
0-10V control relies on a straightforward analog architecture. The supplied DC voltage directly correlates to the desired motor speed. Sending a 1V signal usually translates to a 10% speed output. Sending a full 10V command pushes the motor to 100% output. This linear relationship makes field troubleshooting highly intuitive. You only need a standard digital multimeter to verify the control signal. Technicians can diagnose issues rapidly without specialized software tools.
Engineers specify this analog method for specific, isolated environments. Primary use cases include standalone HVAC units and exhaust ventilators. You will frequently see this protocol in localized agricultural operations. Greenhouse operators often rely on manual wall-mounted dial controllers. These dials utilize potentiometers to adjust the voltage signal manually.
Implementing 0-10V control provides several distinct advantages for small projects:
Simplicity: Two standard wires carry the control signal directly.
Testing: Standard multimeters easily verify signal health during setup.
Accessibility: Requires extremely common physical hardware to implement.
Despite its operational simplicity, physical implementation carries specific risks. We frequently encounter voltage drop issues during field commissioning. Analog signals degrade significantly over long cable runs. Wire resistance inevitably consumes a portion of the transmitted voltage. You might output a perfect 10V signal at your main control panel. However, the signal often degrades to 8V or lower by the time it reaches a distant rooftop unit. This physical limitation results in a lower-than-expected maximum RPM. Therefore, analog control remains highly unsuitable for large industrial facilities.
Another major drawback involves the complete lack of telemetry. The analog protocol provides strictly one-way communication. The primary controller assumes the equipment is spinning correctly. It receives no diagnostic fault codes. It gets no actual RPM feedback. If a blade jams or bearings fail, the main system remains entirely unaware.
Smart home bridging presents yet another integration challenge. Connecting these analog devices to modern IoT hubs requires specialized extra hardware. You must install specific 0-10V dimming relays into your network. Z-Wave or Zigbee 0-10V modules serve as necessary translators. They convert digital wireless network commands into the raw analog voltage required by the hardware.

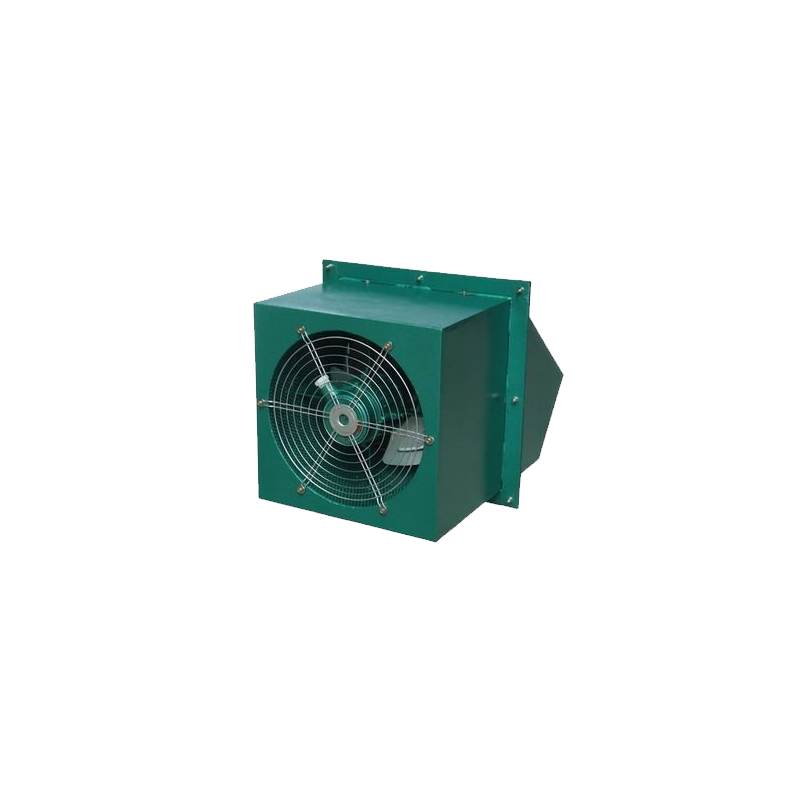

PWM stands for Pulse Width Modulation. This digital communication method rapidly pulses a signal on and off. The resulting speed is dictated strictly by the duty cycle. The duty cycle represents the percentage of time the signal remains "high" during one full period. A 20% duty cycle commands a low idle speed. A 50% duty cycle commands exactly half speed. An 80% duty cycle commands near maximum capacity.
Primary use cases focus heavily on embedded electronics and IT infrastructure. Engineers frequently use PWM for custom printed circuit board designs. Server rack cooling systems rely almost exclusively on this digital protocol. You can directly integrate these units into logic controllers like Arduino microcontrollers or Raspberry Pi computers.
When evaluating digital pulses, precision stands out as the primary benefit. The signal remains highly accurate over varying conditions. It proves completely immune to the voltage drop issues plaguing analog systems. The internal electronics simply look for the presence of the digital pulse. They do not measure its specific amplitude. This binary detection allows for much more reliable speed regulation across varying wire lengths.
PWM offers robust characteristics for embedded environments:
Accuracy: Duty cycles do not degrade over moderate physical distances.
Integration: Perfect for microcontrollers and compact custom PCBs.
Efficiency: Digital pulses consume virtually zero background power.
However, frequency matching demands strict engineering attention. The controller’s output frequency must align perfectly with the motor’s accepted input range. Commercial electronics typically expect frequencies between 1kHz and 10kHz. Mismatches create severe acoustic and operational problems. If you use an incorrect operating frequency, you cause high-pitched electromagnetic whining in the stator coils. In worse cases, the equipment totally fails to respond to any commands.
Wiring realities also present unique limitations. While PWM uses digital pulses, it generally remains a one-way open-loop system. The logic controller sends the requested duty cycle but gets nothing back. Gaining system visibility requires routing extra physical wiring. You must utilize a separate tachometer (tacho) wire. This dedicated wire sends pulse counts back to the controller for actual RPM calculations.
RS485 represents a highly robust, differential serial communication standard. Industry professionals predominantly use it alongside the Modbus RTU protocol. This powerful combination allows multiple devices to share a single communication bus. RS485 uses voltage differences between two dedicated wires to transmit binary data. This differential nature heavily rejects ambient electrical noise. It prevents interference from nearby high-voltage machinery.
Primary use cases include mission-critical and large-scale environments. Hyperscale data centers demand this granular level of control. Commercial Building Management Systems (BMS) rely on it almost exclusively. Complex multi-zone climate control arrays require serial communication to function effectively.
Two-way telemetry defines the true operational power of RS485. It creates a completely closed-loop monitoring system. The primary controller sends precise speed commands to individual units. In return, it receives exact real-time RPM figures. It tracks live power consumption data continuously. It monitors internal temperatures to predict failures. The system also receives specific fault alerts instantly.
Modbus networks bring immense value to enterprise deployments:
Data Depth: Reads RPM, voltage, current, and internal temperature simultaneously.
Distance: Functions flawlessly across massive industrial warehouses without signal repeaters.
Topology: Daisy-chain wiring reduces overall cable clutter significantly.
Scalability serves as another massive architectural advantage. You can easily daisy-chain dozens of units together. They all share a single shielded twisted-pair cable. RS485 supports reliable data transmission over truly massive distances. You can reliably control equipment up to 1,200 meters away. You accomplish this without suffering any signal loss or data corruption.
Implementation risks exist primarily around commissioning complexity. Integrating serial communication networks requires advanced technical skills. Field engineers must physically assign unique network addresses to each unit. They must map specific Modbus holding registers correctly inside the central software. This detailed process significantly increases initial setup time. The inherent software complexity demands rigorous pre-deployment testing.
Selecting the right protocol requires thoroughly analyzing your specific project parameters. We utilize a straightforward feature-to-outcome matrix. This structured approach simplifies the shortlisting process for system integrators. Different operational realities demand different communication standards.
Physical distance dictates the baseline technology choice. For local applications spanning under 10 meters, analog or digital pulse options work perfectly. For distributed facility systems exceeding 10 meters, serial communication becomes absolutely essential.
System visibility drives the next major design decision. Open-loop control proves perfectly acceptable for basic agricultural ventilation. However, some facilities demand closed-loop reporting for compliance reasons. If you need strict RPM and fault reporting, RS485 remains your only native option. RPM tracking guarantees you meet air exchange requirements safely.
Engineering skills round out the evaluation matrix. Analog wiring requires the lowest technical skill level. It demands minimal programming experience. Conversely, RS485 demands the highest engineering capability. It requires specialized industrial networking knowledge. You must consider the capabilities of your maintenance staff before deploying complex networks.
Always carefully evaluate your overarching integration ecosystem. Ensure the native control input precisely matches your primary infrastructure. Retrofitting an analog unit into a fully digital BMS requires complex signal converters. These intermediate converters add unnecessary points of failure. Matching your hardware to your infrastructure from day one ensures long-term operational reliability.
Protocol Comparison Matrix
Feature Assessment | 0-10V Analog | PWM Digital | RS485 Modbus |
|---|---|---|---|
Ideal Cable Distance | Under 10 Meters | Under 10 Meters | Up to 1,200 Meters |
Two-Way Telemetry | No (Open-Loop) | Optional (Requires Tacho wire) | Yes (Closed-Loop) |
Setup Complexity | Very Low | Moderate | Very High |
Primary Use Case | Standalone HVAC / Dials | Custom PCBs / Arduino | BMS / Data Centers |
Reliable system integration is never a one-size-fits-all endeavor. Analog voltage control wins on raw simplicity and ease of manual troubleshooting. Digital pulse modulation excels inside custom electronic logic environments and embedded designs. Serial communication stands as the non-negotiable standard for enterprise scalability. It provides ultimate system visibility.
Audit your facility architecture carefully before purchasing hardware. Verify all intended cable routing distances across your building. Confirm if real-time RPM feedback acts as a strict compliance requirement for your specific application. Consult the technical data sheet for your equipment. Verify accepted input parameters before procuring any external automation hubs.
A: Yes, but it requires a specialized smart dimmer module. Specific Z-Wave or Zigbee 0-10V controllers translate digital network commands into the analog voltage the fan requires. You cannot connect the fan directly to standard smart light switches. Standard switches output mains voltage. This instantly destroys the sensitive low-voltage control inputs. Always use dedicated low-voltage translation modules for IoT bridging.
A: This is typically caused by a PWM frequency mismatch. Your controller outputs a frequency outside the fan's specified operating range. For example, using a 500Hz controller on a fan expecting 2kHz causes audible resonance. This mismatched frequency forces the motor coils to vibrate at an audible pitch. Always check the motor datasheet. Adjust your controller's frequency output to match the manufacturer specifications perfectly.
A: Yes, you can wire them in parallel. However, you must calculate the total current draw of the control circuit. Exceeding the controller’s maximum output current causes severe voltage drops. This results in all connected fans running far below the target speed. Always verify the milliamp rating of your analog controller. Ensure it exceeds the combined draw of all connected motor input circuits.
A: Many commercial EC fans provide an internal 10V DC or 5V DC output pin. This internal pin specifically powers a connected potentiometer or PWM generator. Always check the wiring schematic. Avoid injecting external voltage if the fan supplies its own reference voltage. Injecting secondary power can damage the fan's internal circuitry. Only use external power supplies when explicitly required by isolated control boards.
