Standard off-the-shelf cooling solutions frequently fall short in complex spatial, acoustic, or control-logic environments. Engineers often face restrictive thermal envelopes and demanding performance criteria where basic fans create severe operational bottlenecks. Transitioning from a generic product to a highly tailored solution requires a robust manufacturing partner capable of bridging the gap between R&D theory and production reality. You need a team who understands deep system integration, material science, and advanced motor logic.
This article provides a technical framework for evaluating how a specialized EC fan manufacturer executes advanced customization. From initial aerodynamic design to final safety compliance, we will explore the core capabilities needed to succeed. Procurement and engineering teams will learn how to confidently shortlist the right partner for their most demanding thermal management projects.
Customization is multi-layered: True customization extends beyond dimensional changes, encompassing firmware tuning, impeller aerodynamics, and environmental durability.
Application dictates form: Different sectors require specific form factors, such as customized EC centrifugal fan designs for high-pressure industrial HVAC systems.
Compliance accelerates time-to-market: Partnering with manufacturers well-versed in standards (like UL 507) prevents costly redesigns during the late stages of prototyping.
Scalability matters: The right partner must demonstrate a seamless transition from rapid prototyping to strict Quality Assurance (QA) in mass production.
Standard catalogs offer hundreds of options. Yet, they often fail to solve complex engineering challenges. You might encounter a restrictive thermal envelope limiting airflow space. Sometimes, non-standard voltage inputs demand unique motor windings. Specialized IP rating requirements for harsh environments also rule out basic models. When standard units create these bottlenecks, customization becomes essential to maintain system integrity.
Many buyers hesitate due to higher upfront pricing. However, paying a premium for early-stage customization yields massive operational benefits. Custom designs drastically reduce energy waste by operating at peak efficiency for your specific duty point. They also lower premature failure rates. Standard fans forced to run outside their ideal performance curves degrade quickly. A tailored solution prevents this mechanical stress, ensuring long-term reliability without focusing solely on initial purchase metrics.
To evaluate a custom project, you must define clear success criteria. A successful implementation relies on balancing three distinct factors:
Aerodynamic efficiency: The impeller must match the specific enclosure flow paths.
Acoustic limits: The design must minimize turbulence to meet the deployment environment's noise restrictions.
Seamless integration: The motor electronics must communicate natively with existing building management systems (BMS).
Common Mistake: Engineering teams often select a fan based on free-air performance rather than the actual operating duty point inside the enclosure. Always design around system impedance.
Moving air efficiently requires deep aerodynamic expertise. A capable partner will utilize Computational Fluid Dynamics (CFD) simulations early in the design phase. These software tools allow engineers to modify blade pitch, housing curves, and airflow paths virtually. They can identify turbulence or stalling before producing a single physical part. This digital validation saves weeks of physical trial and error.
Material selection is equally critical. Different environments demand distinct material properties. You might need glass-fiber reinforced plastics for lightweight, corrosion-resistant impellers. Alternatively, high-temperature zones often require aluminum alloys. These metals offer superior weight-to-durability ratios under extreme thermal stress. An experienced engineering team will guide you toward the optimal material for your application.
Physical design only solves half the problem. Electronically commutated motors rely on intelligent control logic. You should closely examine a partner's capacity for custom firmware development. Standard firmware might prioritize rapid acceleration. Your system, however, might need a soft start to prevent power surges. Custom firmware can adjust these parameters perfectly.
Control interfaces must also align with your system logic. Look for adaptable communication options. Standard protocols like Modbus, PWM, and 0-10V analog inputs remain essential. Advanced applications might even require custom sensor integrations directly into the motor PCB. This ensures the fan responds dynamically to temperature or pressure changes without relying on an external controller.
Different industries present highly unique challenges. A successful manufacturer must adapt their form factors to meet these precise market scenarios. An inflexible vendor will struggle to cross industry lines.
Server rooms generate massive heat loads. Thermal management here focuses heavily on high redundancy and hot-swappable designs. Acoustic regulations also play a major role in facility planning. Custom solutions in this sector require precision speed control. Fans must scale their RPM exactly to match dynamic server loads. Overcooling wastes expensive energy, while undercooling risks catastrophic hardware failure.

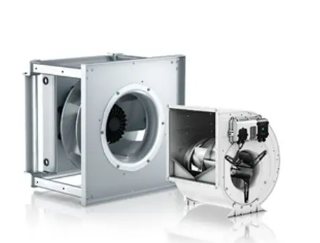

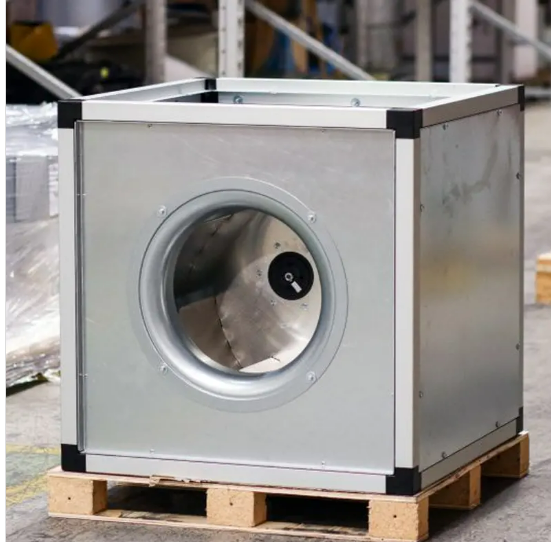

Heavy industry demands rugged reliability. Focus areas include high static pressure delivery and harsh environment resilience. Standard axial fans often fail to push air through dense filters or complex ductwork. Here, you often need a highly customized EC centrifugal fan. Manufacturers can tailor these units for backward or forward-curved applications. This ensures optimal air volume delivery even in highly restrictive environments.
Healthcare and semiconductor environments forgive zero errors. These spaces focus on ultra-low vibration and absolute reliability. High Mean Time Between Failures (MTBF) remains a strict requirement. Stringent contamination controls also dictate material choices. Fans must not shed particulates. Custom sealing and specialized bearings become mandatory to maintain ISO cleanroom standards.
Market Application and Form Factor Summary
Industry Segment | Primary Focus | Key Requirement | Typical Customization |
|---|---|---|---|
Data Centers & Telecom | Redundancy & Acoustics | Precision speed control (RPM matching) | Custom firmware, hot-swappable frames |
Industrial HVAC | High Static Pressure | Resilience in restrictive ductwork | Backward-curved centrifugal designs |
Cleanrooms & Medical | Zero Contamination | Ultra-low vibration, high MTBF | Specialized bearings, non-shedding materials |
Risk mitigation stands at the center of procurement strategy. Compliance can derail an entire product launch. A manufacturer's familiarity with global standards acts as a vital risk filter for procurement teams. If your vendor ignores safety certifications early on, you risk total redesigns later. Working with compliance experts ensures your custom product will legally enter its target market.
Engineers must design for specific global frameworks from day one. UL 507 represents the gold standard for electric fan safety in North America. This standard evaluates everything from locked-rotor conditions to flame resistance. Europe demands strict CE marking and RoHS compliance for hazardous substances. Industrial applications often require specific IP or NEMA enclosure ratings to protect against dust and water ingress. A robust partner will build these constraints into their initial CAD models.
Certification timelines vary wildly based on your customization approach. Utilizing pre-certified motor platforms combined with custom housings often speeds up the process. The motor already holds its UL or CE marks, simplifying final system approval. Conversely, ground-up custom designs require full recertification. This path demands extensive lab testing and can add months to your launch schedule. Always discuss these timelines during the initial quote phase.
A brilliant prototype holds no value if mass production introduces defects. The transition phase requires strict process controls and transparent communication.
Rapid iteration saves development months. Ask potential partners about their in-house prototyping tools. Do they offer 3D printed impellers for quick fit checks? Can they utilize CNC machined housings for early performance testing? Furthermore, verify their validation equipment. In-house wind tunnel testing and acoustic chambers prove they can validate CFD models against real-world physics. You need empirical data before signing off on expensive injection molds.
Prototypes mean nothing if mass production falters due to component shortages. You must have transparent discussions around Minimum Order Quantities (MOQs) for custom parts. Custom tooling often demands higher initial volumes to amortize costs. Discuss lead times for specialized components early. A reliable partner will help you navigate shortages by designing around readily available sub-assemblies where possible. They will also offer phased production rollouts to ease cash flow constraints.
Best Practice: Negotiate a pilot run of 50 to 100 units before authorizing full mass production. This uncovers subtle manufacturing friction points early.
Mass-produced units must perfectly match prototype specifications. Robust Quality Control (QC) protocols guarantee this consistency. Look for comprehensive end-of-line testing procedures. These should include:
Dynamic balancing: Precision balancing prevents long-term vibration and bearing wear.
Burn-in tests: Running the fans at elevated temperatures catches early electronics failures before shipment.
Dielectric strength testing: Also known as hipot testing, this ensures insulation integrity and prevents electrical shocks.
Choosing a specialized EC fan manufacturer is a strategic alignment of engineering cultures. It is not just a transactional vendor purchase. You need a partner who understands your long-term performance goals and environmental constraints. We highly advise buyers to prioritize manufacturers who ask critical questions about the application environment before quoting a price. If they only ask for physical dimensions, look elsewhere.
Your next step is proactive engagement. We encourage engineers and procurement teams to submit their thermal requirements early. Request a custom prototype consultation. This initial interaction will quickly test the manufacturer's responsiveness, technical depth, and willingness to collaborate on complex solutions.
A: MOQs vary heavily based on the extent of customization. Simple firmware tweaks might require as few as 100 units. However, custom injection-molded tooling for unique impellers typically demands MOQs of 1,000 to 5,000 units to justify tooling costs. We advise negotiating phased rollouts to ease upfront commitments.
A: A realistic timeframe is typically 4 to 8 weeks. This depends entirely on the complexity of the aerodynamic design and tooling requirements. 3D printing and CNC machining can expedite early visual models, but functional prototypes requiring custom wound motors will take closer to the 8-week mark.
A: Yes. Advanced manufacturers can design drop-in replacement plates and match existing mounting holes perfectly. They also program the EC motors to mimic or improve upon old AC performance curves. This delivers modern efficiency without requiring major system overhauls or expensive facility downtime.
