Standardized ventilation components often force OEMs into frustrating design compromises. These generic parts frequently result in bloated equipment form factors, suboptimal acoustics, and over-engineered control systems. For manufacturers building specialized HVAC, data center cooling, or industrial filtration units, relying on standard fans falls short. Transitioning to a specialized custom EC fan architecture effectively bridges this gap. It aligns strict global energy regulations alongside highly proprietary equipment requirements.
This comprehensive guide delivers a technical and commercial evaluation framework for modern engineering teams. You will learn how to specify, prototype, and seamlessly integrate electronically commutated fans directly into OEM production lines. Evaluating these specialized components requires a careful balance of aerodynamic theory and practical manufacturing realities.
Customizing EC fan form factors and firmware prevents OEM design compromises and streamlines assembly.
Aerodynamic tailoring (impeller pitch, housing geometry) directly correlates to meeting stringent ErP and ASHRAE efficiency standards.
Successful adoption requires vetting manufacturers on prototyping speed, acoustic testing capabilities, and long-term supply chain stability.
A custom solution is only viable when tooling costs and minimum order quantities (MOQs) align with the product's projected lifecycle ROI.
Many OEM engineers face a classic dilemma during product development. They must choose between designing equipment to fit a generic fan or finding a specialized fan to fit their equipment. Standard catalog fans usually dictate the physical footprint of the final product. They force design teams to expand chassis dimensions unnecessarily just to accommodate standard mounting brackets. A tailored solution adapts perfectly to existing spatial constraints. It maximizes internal cabinet volume for other critical components.
Custom firmware integration is another major driver for bespoke engineering. Off-the-shelf fans offer generic speed controls. Conversely, OEMs often require specific communication protocols to manage complex system behavior. You might need 0-10V analog inputs, PWM signals, or Modbus RS485 digital interfaces. These protocols allow seamless integration into proprietary building management systems (BMS). Tailoring the firmware ensures the fan responds instantly to external sensor data. This creates a highly responsive, intelligent cooling loop.
Performance optimization represents a significant aerodynamic advantage. Standard fan curves rarely match exact application demands perfectly. Engineers typically over-specify a fan to ensure adequate airflow under worse-case conditions. This practice wastes energy and generates excessive noise. Custom winding and specific motor mapping enable you to hit the exact required duty point. You balance airflow against static pressure precisely. This optimization minimizes wasted power consumption. It also significantly reduces acoustic resonance inside the equipment housing.
Financial considerations extend far beyond initial tooling expenses. While custom injection molds require upfront capital expenditure, unit costs drop significantly at higher volumes. Furthermore, bespoke units simplify the assembly line dramatically. They eliminate secondary brackets, custom wiring harnesses, and adapter plates. This streamlining reduces labor time per unit. A simplified assembly process reduces the chance of human error on the factory floor, directly lowering warranty claims.
Evaluating a tailored ventilation solution requires a deep dive into core electro-mechanical components. You must scrutinize both the motor design and the aerodynamic structures.
Motor sizing and pole counts dictate baseline electrical efficiency. Engineers tailor these specific elements to the unique thermal limits of your application. An undersized motor will overheat, while an oversized motor increases mass unnecessarily. Environmental protection is equally crucial for long-term reliability. You must specify appropriate IP ratings based on harsh operating conditions. Standard indoor data centers might only require IP55 protection against light dust. Harsh industrial environments demand robust IP68 sealing. This higher rating protects delicate stators from corrosive dust, chemical vapors, and heavy moisture ingress.
Impeller materials present complex engineering trade-offs. Standard commercial fans often utilize glass-fiber reinforced PA66. This specific polymer is lightweight, highly moldable, and cost-effective. However, high-temperature applications require entirely different materials. Aluminum or stamped steel impellers offer superior ambient heat resistance. They handle heavy-duty industrial loads without warping or deforming over time.
Aerodynamic tailoring plays a vital role in system efficiency. Adjusting the custom blade pitch alters the airflow profile directly. Modifying trailing-edge geometries explicitly mitigates tonal noise. This is especially helpful within specific restrictive OEM enclosures where air bounces off internal walls. Engineers map these geometries using fluid dynamic simulations to ensure optimal acoustic performance.
Power optimization ensures global electrical compatibility. You should establish clear guidelines for voltage inputs during the specification phase. Universal input ranges (e.g., 200-277V) allow equipment export globally without modifying the internal fan. Some specialized telecom and transportation applications require specific direct current (DC) voltages like 48V or 110V. Furthermore, active power factor correction (PFC) is essential. Proper PFC integration ensures the equipment aligns perfectly with target market grid regulations and prevents harmonic distortion.
Material Type | Primary Engineering Advantage | Typical Target Application | Acoustic Characteristic |
|---|---|---|---|
Glass-Reinforced PA66 | Lightweight, complex moldability | Commercial HVAC, IT cooling | Excellent vibration dampening |
Cast Aluminum | High thermal and stress tolerance | Industrial processing, rail transport | Prone to resonance if unbalanced |
Stamped Steel | Maximum structural rigidity | High static pressure environments | Requires external acoustic isolation |
Certain environments demand massive air displacement over moderately restrictive pressures. Here, specifying a Custom EC Axial Fan becomes non-negotiable. Target applications include large condenser units, agricultural ventilation systems, residential heat pumps, and telecommunications cooling towers. These sectors rely on uninterrupted, high-volume airflow to maintain system stability.

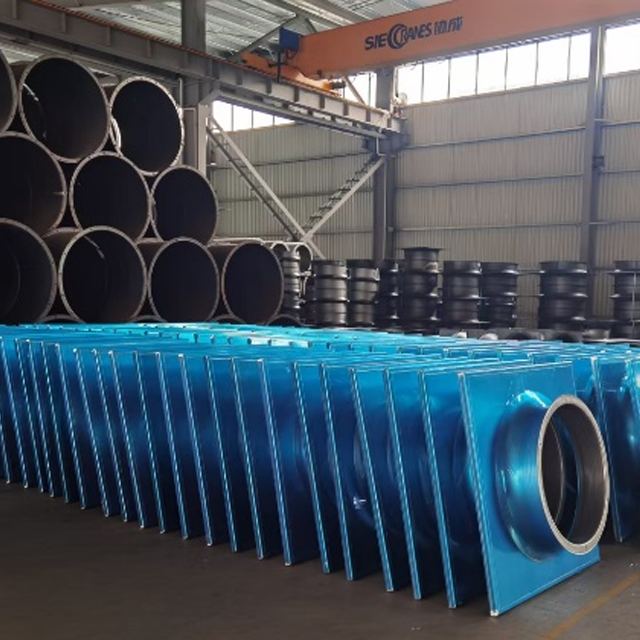

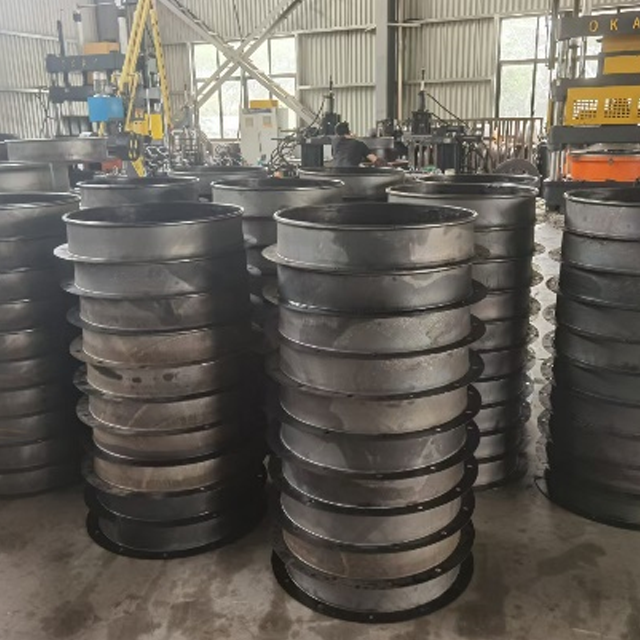

Mounting integration heavily influences assembly line velocity. Standard fans often require complex secondary brackets or heavy adapter plates. You can eliminate these components entirely through clever engineering. Customizing the mounting ring, wall rings, or grille structures allows for direct chassis bolting. The fan drops right into the OEM assembly line seamlessly. This reduces bill of materials (BOM) complexity and speeds up manufacturing throughput.
Acoustic profile management requires meticulous blade engineering. Tip-clearance noise remains a primary failure point in standard axial integrations. Custom axial blade designs mitigate this issue drastically. Engineers often deploy sickle-shaped blades to slice through the air smoothly. Pairing these bespoke blades with specific stators manages tonal noise generation effectively. Tighter manufacturing tolerances between the blade tip and the custom housing drastically reduce turbulent air spillage. This specific refinement lowers the overall decibel rating of the final unit.
Regulatory compliance must begin during the initial design phase. You cannot treat international certifications as an afterthought. Failing compliance testing late in development causes massive delays.
First, engineers must baseline the new fan against major global directives. The unit must pass the ErP Directive (EU) 2015/1188 for European markets. This directive dictates stringent minimum efficiency grades. North American deployments require strict adherence to ASHRAE 90.1 energy standards. Additionally, fundamental CE, UL, and CSA safety certifications guarantee electrical safety. Designing these parameters into the motor mapping upfront prevents expensive internal redesigns later.
Credible manufacturers provide highly transparent validation data. They should supply AMCA-certified lab data routinely. Equivalent ISO 5801 testing data is also acceptable for aerodynamic validation. This data must reflect the customized iteration specifically. Testing the base motor alone is wholly insufficient. The aerodynamic interaction between the custom impeller, the bespoke housing, and the motor alters actual efficiency drastically.
Global export operations require strict chemical compliance. Material sourcing must adhere to environmental directives. Here is a numbered list of critical compliance checks every OEM must perform:
Verify UL/CSA insulation class requirements for the specified motor windings.
Confirm the final assembly meets the ErP 2015/1188 minimum efficiency grade (N-grade).
Audit the supplier's RoHS and REACH declarations for all PCB components and plastics.
Request detailed AMCA 210 testing reports for the exact final aerodynamic assembly.
Transitioning from concept to full-scale production requires careful timeline management. Prototyping is a rigorous, multi-stage process.
The timeline begins with initial CAD modeling and spatial checks. Engineers run Computational Fluid Dynamics (CFD) simulations to predict airflow behavior accurately. Once validated virtually, they move to 3D printed impeller testing. This rapid prototyping confirms spatial fit and rough acoustic signatures. Finally, the manufacturer cuts heavy steel tooling for mass injection molding. The process culminates in a First Article Inspection (FAI). FAI ensures the final molded part matches all approved drawings and tolerances perfectly.
Tooling and Non-Recurring Engineering (NRE) costs carry inherent financial risks. You must negotiate tooling ownership upfront during contract drafting. Clarify explicitly whether your company owns the injection molds after production ceases. Many OEMs negotiate to amortize these NRE costs based on committed production volumes. Spreading the tooling cost across the first 10,000 ordered units minimizes the initial cash flow impact on your procurement budget.
Supply chain resilience determines long-term manufacturing success. Relying on single-source custom components introduces massive vulnerability. You must evaluate a vendor's internal component sourcing carefully. Investigate their chosen bearing brands to ensure longevity. Ensure they have secure semiconductor availability for the EC controller PCB. Furthermore, ask about secondary production facilities. Dual manufacturing locations protect your supply if one factory faces unexpected geopolitical downtime or natural disasters.
Selecting the right manufacturing partner involves vetting their internal engineering capabilities. Not all fan suppliers possess true, deep-level customization power.
Evaluate their in-house versus outsourced research and development (R&D) resources. Top-tier suppliers maintain internal CFD software licenses and supercomputing clusters. They utilize Finite Element Analysis (FEA) to simulate structural stress on rapidly rotating impellers. An in-house acoustic wind tunnel is incredibly valuable for immediate feedback. Outsourcing these crucial tests delays the prototyping phase significantly. It also introduces potential data inaccuracies between third-party labs.
Firmware ownership requires explicit contractual clarity before development begins. You must know exactly who owns the custom motor mapping parameters. Clarify ownership of the underlying source code operating the controller. Vendor lock-in risks are severe if the supplier retains all intellectual property. Ensure the vendor agreement grants you proper usage rights in perpetuity or full ownership of proprietary control logic.
Lifecycle support planning prevents future production halts. Heavy OEM equipment cycles often span a decade or more. Define strict expectations for end-of-life (EOL) component notifications. The supplier must alert your procurement team well before critical PCB components become obsolete. Mandating long-term warranty support tailored to your specific OEM maintenance cycle guarantees peace of mind in the field.
Specifying a tailored ventilation solution represents a highly strategic engineering decision. It directly impacts your equipment's physical footprint, acoustic signature, and regulatory compliance status. Standard catalog components simply cannot compete with a meticulously tailored aerodynamic approach. By customizing the form factor, materials, and firmware, OEMs eliminate assembly bottlenecks and unlock superior product performance.
Engineering teams must confidently move beyond generic catalog datasheets. Initiating vendor contact early in the design cycle yields the best results. Start by defining your exact operating duty point and environmental demands. Share your spatial constraints using a detailed 3D CAD envelope. Outline your target control protocols clearly. Request a comprehensive feasibility assessment today. This proactive step ensures a faster, smoother transition to optimized OEM manufacturing.
A: A realistic timeline ranges from 4 to 8 weeks. This depends entirely on the complexity of the design. Simple firmware tweaks or basic mounting modifications take less time. Developing completely new injection-molded impellers requires extensive tooling, pushing lead times closer to 8 weeks. Utilizing in-house CFD simulation significantly speeds up the initial phase.
A: MOQs depend heavily on the required degree of customization. Simple firmware tweaks or minor wiring harness changes usually have very low MOQs. Conversely, developing custom injection-molded impellers or unique motor housings requires higher volume commitments. These larger orders offset the expensive initial tooling and setup costs.
A: Yes, this is a very common OEM request. Custom EC solutions can be meticulously engineered with identical mounting dimensions to older AC fans. They can also feature backward-compatible input signals. This facilitates seamless drop-in AC-to-EC upgrades without requiring a complete redesign of your existing metal chassis.
A: Manufacturers validate lifespan through rigorous accelerated lifecycle testing. They utilize thermal chamber monitoring to simulate years of stress in weeks. Furthermore, specifying high-tier bearings, such as those from NMB or SKF, plays a critical role in guaranteeing the expected operational hours and maintaining the L10 lifespan rating under heavy loads.
