Facility managers and mechanical engineers face a growing dilemma in modern building design today. You must constantly balance strict energy efficiency mandates and system longevity against tight upfront capital expenditure constraints. Building performance standards leave little room for error. Traditional AC induction and brushed motors have dominated legacy HVAC systems for decades. However, the industry standard is rapidly shifting toward Electronically Commutated (EC) technology. Legacy motors waste energy through mechanical friction and excess heat generation. Modern facilities demand smarter, adaptive cooling solutions to meet strict global environmental targets. We will bypass superficial marketing claims to analyze the real-world performance and implementation risks of both technologies. You will discover how these specific fan systems directly impact daily operational stability. This comprehensive breakdown will guide you toward making smarter, evidence-based engineering decisions for your next facility upgrade.
Energy Efficiency: Brushless EC motors consume up to 70% less energy at partial loads compared to traditional AC fans.
Control & Precision: EC technology allows for infinite variable speed control without the need for external Variable Frequency Drives (VFDs).
Maintenance Profile: The absence of physical brushes in EC fans eliminates mechanical wear, significantly reducing maintenance downtime.
The Trade-off: EC fans require a higher initial CapEx; traditional fans may still be viable for low-run-hour or highly cost-constrained applications where variable speed is unnecessary.
Understanding the fundamental engineering behind these fan types helps you make informed choices. They operate on entirely different mechanical principles. You need to know how these differences translate to real-world reliability.
Traditional AC fans rely on an external alternating current to function. This current flows through stator windings to generate a rotating magnetic field. The magnetic field then induces a current in the rotor. This induction creates motion. However, this process has built-in mechanical limitations. They rely heavily on physical brushes to transfer electrical current in brushed variants.
These brushes drag against a commutator. This constant physical contact generates significant friction. Friction naturally produces heat and accelerates mechanical wear. Furthermore, AC induction motors experience a phenomenon called "slip." Slip occurs when the rotor spins slightly slower than the magnetic field. This speed difference causes measurable energy loss. You lose valuable electrical energy simply trying to maintain rotation. Over time, this thermal stress degrades internal components.

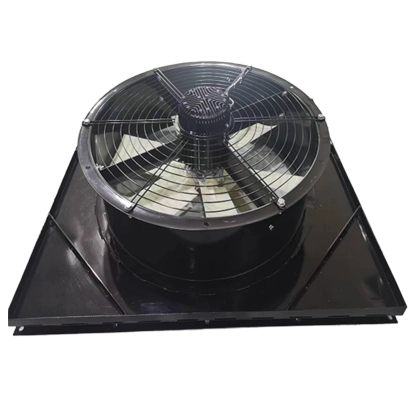

A brushless EC motor solves these inherent mechanical flaws. "EC" stands for Electronically Commutated. These motors represent a massive leap in design. They do not rely on physical brushes to manage the current. Instead, they use an onboard electronic circuit board.
They take incoming AC power and convert it to DC voltage internally. The motor utilizes a permanent magnet rotor and an electronic stator. The internal microprocessor dictates the precise sequence of magnetic fields. It knows exactly when to energize specific stator coils. This electronic commutation completely eliminates mechanical brushes. You remove the friction from the equation entirely. No friction means less heat, zero brush dust, and vastly improved efficiency.
Performance metrics tell the true story when comparing these two technologies. Modern buildings require systems that can adapt to changing conditions. You must evaluate how each motor type handles variable demands.
The efficiency curve defines how well a motor performs at different speeds. Traditional fans perform adequately when running at full capacity. However, they drop significantly in efficiency when you reduce their speed. They waste massive amounts of electricity during partial-load operations.
Brushless EC fans maintain an incredibly flat efficiency curve. They can maintain an efficiency rate of up to 90% even at partial loads. This characteristic proves vital for variable-demand HVAC systems. Data center cooling also relies heavily on this efficiency. Servers do not always run at maximum capacity. Therefore, your cooling system should not consume maximum power constantly. EC motors scale their power consumption directly with the required output.
Performance Metric | Traditional AC Fan | Brushless EC Fan |
|---|---|---|
Peak Efficiency | 60% - 70% | Up to 90% |
Partial Load Efficiency | Drops sharply below 80% speed | Remains high across all speeds |
Speed Control Method | Requires external VFD | Built-in electronic control |
Acoustic Output | Higher mechanical noise | Significantly quieter |
Noise pollution matters in commercial buildings and residential setups. EC fans operate much quieter than traditional counterparts. They generate less electromagnetic noise because of precise electronic switching. You also avoid a common issue called motor hum. Traditional motors paired with external VFDs often vibrate audibly. The VFD induces a harsh humming sound into the AC motor at lower speeds. Because EC motors use direct internal DC conversion, they eliminate this irritating resonance.
Modern ventilation relies on precise environmental control. Brushless EC fans offer built-in control capabilities right out of the box. They accept standard industry signals directly. You can wire them for 0-10V analog signals, PWM (Pulse Width Modulation), or digital Modbus networks.
Compare this to retrofitting a traditional AC fan. Adding variable speed to a traditional motor requires a complex Variable Frequency Drive. You must mount the VFD separately. You must wire it to the motor and the building controls. This adds extra components, increased installation labor, and multiple failure points. EC technology simplifies this entire control loop.
Transitioning to new technology always introduces engineering challenges. You cannot simply swap one motor for another without evaluating the surrounding infrastructure. You must understand the technical risks involved in retrofitting.
You must address the risk of harmonic distortion. Harmonic distortion happens when electronic devices alter the electrical current waveform. Some older EC models can introduce noise back into the electrical grid. Poorly integrated systems amplify this problem.
You must ensure your electrical infrastructure can handle electronic loads. High-quality EC fans include built-in active or passive filtering. We recommend verifying the Total Harmonic Distortion (THD) rating before purchasing. You might need to install external line reactors if the building grid is highly sensitive.
Migrating from traditional relays to digital signals requires careful planning. Traditional fans often use simple "on/off" relay logic. The Building Management System (BMS) simply sends power to start the fan.
EC fans require continuous power and a separate control signal to dictate speed. You face significant challenges if you treat this as a simple drop-in replacement. We highly warn against drop-in replacements without a full BMS audit.
Audit existing wiring: Ensure you have separate conduits for high-voltage power and low-voltage control signals.
Update BMS logic: Reprogram the control sequences to output proportional signals (like 0-10V) instead of binary on/off commands.
Verify sensor placement: Variable speed fans rely on accurate temperature or pressure sensors to adjust their output correctly.
Traditional induction motors are remarkably rugged. They act as "dumb" mechanical workhorses. They can survive harsh environmental abuse. In contrast, onboard electronics in EC motors possess unique vulnerabilities.
They can be highly sensitive to extreme ambient heat. Excessive temperatures can fry the internal circuit boards before the motor bearings ever fail. They also suffer damage from severe power surges more easily than traditional coils. You must install appropriate surge protection devices. When operating in highly volatile environments, ensure the EC fan carries a sufficient Ingress Protection (IP) rating.
Choosing the right technology requires matching the motor capabilities to your facility demands. You must avoid over-engineering simple systems while preventing under-performance in critical areas. Use this framework to guide your specification process.
You do not always need advanced electronic commutation. Certain scenarios still favor traditional technology. You should stick with AC induction motors in specific use cases.
Low Operating Hours: Applications like emergency smoke exhaust fans rarely run. They sit idle for months. Investing in high-efficiency motors here makes little sense.
Basic Environments: Some environments only require basic on/off functionality. A standard warehouse exhaust fan may only need to run at full speed during shift hours.
Strictly CapEx-Limited Projects: Sometimes you face strict initial budget caps. If you have no long-term responsibility for utility bills, traditional fans keep initial purchasing costs low.
Modern building codes heavily favor advanced efficiency. You should actively mandate EC technology for demanding environments. They excel where traditional motors fail to adapt.
Mission-Critical Cooling: Data centers and server racks experience highly variable thermal loads. EC fans ramp up and down instantly to match the exact cooling requirement.
High Duty-Cycle Systems: Cleanrooms, hospitals, and commercial refrigeration units run continuously. The energy savings from EC fans compound rapidly in 24/7 applications.
Aggressive Carbon Reduction: Projects requiring granular BMS integration benefit from EC data feedback. They help facilities satisfy strict new energy codes like ASHRAE guidelines and ErP directives.
You must take actionable steps to upgrade your infrastructure. Start by auditing your current fan energy usage. Document the operating hours and power draw of your existing traditional fans. Next, calculate the potential utility savings based on local commercial electricity rates. Finally, consult with an engineering partner to design a pilot retrofit. Testing one air handling unit provides baseline data before committing to a facility-wide upgrade.
The engineering debate regarding a brushless fan vs traditional fan is straightforward. It fundamentally represents a choice between legacy simplicity and modern, data-driven efficiency. Traditional fans provide rugged, cheap solutions for basic on/off applications. However, brushless EC fans dominate in precision, acoustic performance, and variable load handling.
You cannot ignore the shifting industry standards. We encourage you to request an efficiency audit of your current HVAC setup. Download a spec-sheet comparison guide to map out the technical differences. Contact technical sales engineers to get custom integration advice tailored to your specific BMS setup. Taking these steps ensures your facility remains compliant, quiet, and highly efficient for decades.
A: While a brushless EC motor operates on DC voltage internally, it differs from traditional DC motors. EC motors feature specialized onboard electronics. These electronics allow them to connect directly to standard AC power supplies. You get the high efficiency of DC power without needing external AC-to-DC converters or rectifiers in your electrical room.
A: Yes, you can retrofit these older systems successfully. However, evaluating spatial constraints is essential beforehand. EC fans are often more compact but typically have entirely different mounting profiles. You must also update the facility control wiring. This extra step ensures you actually leverage the built-in variable speed benefits.
A: The primary barrier remains the upfront purchasing cost. When evaluating a brushless fan vs traditional fan, traditional units require significantly less initial capital. Simple, low-use applications do not need advanced variable speed controls. Upgrading to EC technology makes practical sense only when annual usage hours justify the premium investment.
