A fan does not save energy by accident. It saves energy when its motor and controls work together. An ec motor combines brushless motor design with electronic control. In this article, you will learn what it is, how controls work, and how to choose the right setup.

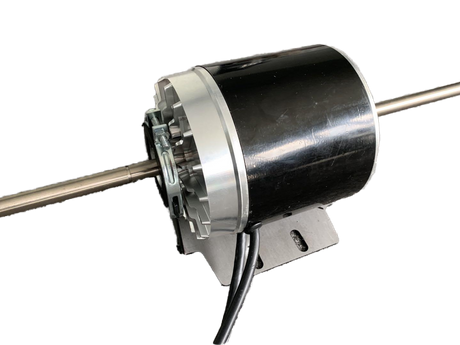

An ec motor is an electronically commutated motor. “Commutated” means the motor current is switched in the right sequence. In a traditional brushed motor, mechanical brushes help with this switching. In an EC motor, electronic circuits do the work.
Most EC motors used in fans are brushless motors. They often use permanent magnet rotor technology. This helps the motor produce strong rotation while using power more efficiently. Because the motor is electronically controlled, it can change speed without the rough behavior often seen in simple fixed-speed systems.
For ventilation and cooling equipment, this matters a lot. A fan rarely needs full speed all day. Sometimes it only needs 40%, 60%, or 80% of its full airflow. An EC motor can respond to that demand more accurately.
EC motor controls are the parts that tell the motor how to run. They may include a drive board, control signal input, communication interface, protection logic, and speed regulation function. The control can be built into the motor, placed near the motor, or connected to a larger control system.
In simple terms, the motor creates motion. The controls decide how much motion is needed. They manage starting, stopping, speed, direction in some systems, fault protection, and communication.
An EC motor does not work like a basic on/off device. It receives power and a control command. Then the internal electronics adjust current flow to the motor windings. This creates smooth rotation.
In a fan system, the command may come from a temperature sensor, pressure sensor, building controller, machine controller, or upper logic board. If the system needs more airflow, the command increases speed. If demand drops, the motor slows down.
This closed relationship makes EC technology useful in HVAC, air conditioning, industrial ventilation, and cooling systems. It gives users better airflow control than a simple fixed-speed motor.
The control system is not an accessory. It is a core part of EC motor performance. Without proper controls, an EC motor cannot deliver its full value.
Controls affect energy use, noise level, temperature response, airflow stability, and motor protection. They also affect how easily the motor connects to existing equipment.
For example, a ventilation system in a warehouse may need high airflow during busy hours. At night, it may need only basic air movement. EC motor controls allow the fan to slow down instead of wasting energy at full speed.
Most EC motor control systems are designed around practical goals:
Control Goal | What It Means | Why It Matters |
Speed regulation | Adjust motor speed | Matches airflow demand |
Soft start | Start smoothly | Reduces electrical and mechanical stress |
Remote control | Control from a system | Easier operation |
Communication | Share data or commands | Better integration |
Protection | Respond to faults | Improves reliability |
Noise control | Reduce speed when possible | Better working environment |
The power input supplies energy to the motor system. The drive section manages how this energy reaches the motor windings. It does not just pass power through. It shapes and switches the current so the motor can rotate efficiently.
In many fan applications, the drive must handle changing load conditions. Air pressure, duct resistance, temperature, and system demand can all change. The drive helps the motor respond without unstable operation.
Electronic commutation is the heart of an EC motor. Instead of brushes touching a rotating part, electronic circuits switch the current. This reduces mechanical wear and allows smoother control.
This design also helps the motor run at different speeds. The controller can adjust switching patterns and current flow based on the required output. That is why EC motors are common in modern fan systems where variable speed is important.
A controlled motor needs feedback or commands. In some systems, the motor follows a simple signal. In more advanced systems, it may receive commands from sensors or a central controller.
The control logic compares what the system needs with what the motor is doing. Then it adjusts the motor output. This helps keep airflow, pressure, or temperature closer to the target range.
0–10V control is a common method for variable speed operation. A low voltage command tells the motor to run slower. A higher voltage command tells it to run faster.
This method is easy to understand and widely used. It works well for HVAC systems, ventilation cabinets, air handling units, and other equipment where simple speed control is enough.
The main advantage is simplicity. The main limit is data. A 0–10V signal tells the motor what to do, but it does not usually provide rich feedback.
RS485 is a digital communication method. It allows the motor or fan system to exchange commands and data with a controller. This is useful when several motors need coordinated operation.
RS485 can support remote control, monitoring, and system-level management. It is often a better choice for projects where the motor must connect to a larger control platform.
For example, an industrial ventilation system may need several fans to change speed together. RS485 can help the control system manage them in a more organized way.
Some EC motor systems use built-in control electronics. This can reduce wiring and save installation space. It can also simplify product design for equipment manufacturers.
Integrated control is useful when the motor must fit into a compact fan, air handling unit, or cooling module. It reduces the need for separate control cabinets in some designs.
Some EC motor designs use inverter-related control. The inverter helps regulate motor operation and speed. It may be separate or integrated, depending on the product structure.
Inverter-based control can be useful when the project needs stable speed control, higher output, or specific installation flexibility. It is also useful when maintenance access, wiring layout, or system design requires separation between motor and drive parts.
The biggest benefit of an EC motor is not just its motor structure. It is its ability to run only as fast as needed.
In fan systems, power demand changes sharply with speed. When the fan slows down during partial load operation, energy use can drop. This is why EC motors are often used in HVAC, cooling, and ventilation projects.
For a building, farm, factory, or cooling system, this can reduce operating waste. It also helps equipment run closer to real demand.
Noise often comes from high fan speed. If the system does not need full airflow, the motor can slow down. That often lowers noise.
This is helpful in offices, commercial buildings, livestock houses, and air conditioning systems. A quieter system can improve comfort and working conditions.
EC motor controls help stabilize airflow. They can adjust speed based on pressure, temperature, or system commands. This is valuable in ducted systems, fan boxes, cooling towers, and air handling equipment.
Smooth starting and speed regulation reduce shock. Electronic commutation also removes brush wear. These features can support longer service life when the motor is selected and installed correctly.
Controls also help protect the system. Fault response, speed limits, and operating logic can reduce risk during abnormal conditions.
Traditional AC motors often run at fixed speed. To change airflow, a system may need dampers, belts, pulleys, reducers, or external speed devices. This can add complexity.
An EC motor is designed for controlled operation. It can adjust speed electronically. This makes it better suited for systems where airflow demand changes during the day.
A traditional setup may need more external parts. An EC motor system can often combine motor and control functions more closely. That can save space and reduce wiring work.
This does not mean every EC motor is plug-and-play. Project teams still need to match voltage, signal, wiring, cooling, and mounting requirements. But the overall control design can be cleaner.
Item | Traditional AC Motor | EC Motor and Controls |
Speed style | Often fixed-speed | Variable speed |
Control method | On/off or external devices | Electronic control |
Energy use | Higher during low demand | Better at partial load |
Noise control | Limited | Stronger through speed reduction |
Integration | May need extra hardware | Easier in smart systems |
Best use | Simple constant-load systems | Variable airflow systems |
HVAC systems need airflow control. Cooling or heating demand changes through the day. An EC motor helps the fan adjust instead of running at full speed all the time.
This makes it suitable for air handling units, heat pumps, air conditioning equipment, and ventilation systems. In these cases, control stability is as important as motor power.
EC axial fans move air along the motor shaft direction. They are often used where a large volume of air is needed. Common examples include cooling towers, ventilation walls, heat pump units, and livestock ventilation.
EC centrifugal fans move air through a wheel and housing. They are useful when the system needs higher pressure or ducted airflow. They are often used in fan boxes, ventilation equipment, and air treatment systems.
Controls are important here because pressure can change. A controlled EC centrifugal fan can respond to system conditions more effectively.
Choose 0–10V control when the system only needs simple speed adjustment. It is practical and easy to use.
Choose RS485 when the system needs communication, remote control, or coordinated operation. This is better for smart ventilation systems and projects with multiple fans.
Choose integrated control when space is tight or wiring must stay simple. Choose inverter-based control when the project needs flexible drive placement or specific performance control.
A good selection starts from the working condition. Check input voltage, target speed, torque demand, airflow volume, static pressure, temperature, and duty cycle.
For fans, the motor cannot be selected alone. The impeller, housing, airflow path, and control logic all affect final performance.
An EC motor must fit the larger system. It should match the control board, wiring layout, installation space, and maintenance plan. It should also match any monitoring or automation needs.
If the motor connects to a building system or machine controller, confirm the signal and communication method early. This avoids redesign later.
Custom requirements need technical review. A manufacturer can help match motor structure, control interface, fan design, and application conditions.
This is especially important for air handling units, industrial ventilation systems, cooling towers, livestock houses, and compact fan modules. In these systems, airflow, noise, energy use, and service life all matter.
An ec motor gives more value when its controls match the application. It can improve airflow, save energy, and reduce noise in demanding fan systems. Suzhou Dowell Ventilation Technology Co., Ltd provides EC motors, EC fans, smart control support, and customized solutions for ventilation, HVAC, cooling, and industrial airflow projects.
A: An ec motor control manages speed, start, stop, protection, and communication.
A: An ec motor slows down when full airflow is not needed.
A: Yes, for simple speed control and basic ventilation systems.
A: RS485 supports remote control, monitoring, and multi-fan coordination.
A: Usually yes, but lower energy use can improve long-term value.
