Controlling a motor sounds simple. Turn it on, set speed, and let it run. An ec motor needs a smarter approach. Its speed, torque, signal type, and feedback all affect performance. In this article, you will learn how to control it safely, clearly, and efficiently.
An ec motor uses electronic commutation instead of mechanical brushes. The control electronics switch current through the motor windings in a timed pattern. This helps the motor run with high efficiency, smooth speed change, and lower wear.
This design also changes how users control the motor. A standard AC motor often runs at a fixed speed unless paired with a variable frequency drive. An ec motor usually accepts a control signal, then its internal electronics adjust the motor speed.
So the main question is not only “how much power does it need?” It is also “which control signal does it accept?”

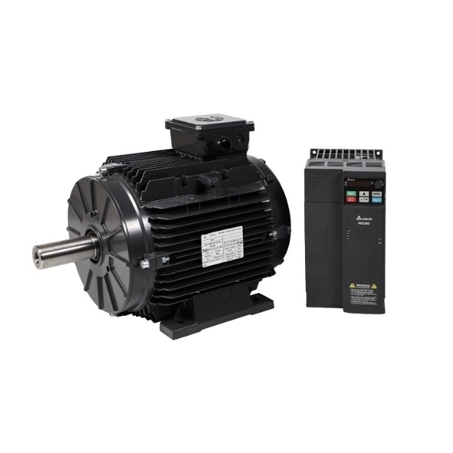

Some EC motor systems use an inverter or external drive. In that setup, the inverter manages motor speed and output. This may suit systems that need a separate control cabinet, wider parameter settings, or integration into older equipment.
Other EC motors include built-in control electronics. These motors may only need power input plus a command signal. For example, the controller may send a 0–10V signal, PWM signal, or RS485 command.
This difference matters. If the motor already has a built-in driver, adding the wrong inverter may cause unstable operation or damage. If the motor needs an external drive, a simple analog signal may not be enough.
Most modern EC motor applications use a layered control setup. The motor handles commutation and basic operation. The external system tells it what to do.
That external system may be a PLC, HVAC controller, building management system, fan controller, or equipment logic board. It sends a speed request. The motor driver reads the request and adjusts rotation speed.
For fan and ventilation systems, this creates a useful advantage. The system can lower motor speed when cooling or airflow demand drops. It can increase speed when pressure rises or temperature increases.
Before control begins, check the motor label, wiring guide, and control terminal marks. Pay close attention to power voltage, signal voltage, ground or common terminal, enable wire, feedback output, and speed range.
Many control problems come from small wiring mistakes. A 0–10V input may not work if the common terminal is missing. RS485 may fail if A and B wires are reversed. PWM may become unstable if the frequency is wrong.
Start/stop control is the most basic method. It turns the motor on or off through an enable signal, relay, switch, or digital output.
This method works when the system only needs fixed operation. For example, a fan may start when a cabinet reaches a set temperature. It may stop when the temperature drops.
But start/stop control does not provide full speed modulation. If the project needs quieter operation, lower power use, or airflow adjustment, it needs another control method.
0–10V analog control is one of the most common ways to control an ec motor. The controller sends a voltage signal. The motor reads that voltage as a speed command.
In many systems, a low voltage means low speed. A higher voltage means higher speed. For example, 2V may mean low airflow, while 10V may mean full speed. The exact behavior depends on the motor design.
This method is popular because it is simple. It works well in HVAC equipment, ventilation systems, air handling units, and fan speed controllers. It also fits many existing control panels.
PWM means pulse width modulation. Instead of sending a steady voltage, the controller sends fast on-off pulses. The motor reads the pulse duty cycle as the speed request.
PWM control works well with digital controllers. It can give stable speed adjustment and flexible logic. It is useful when a microcontroller, PLC output, or control board manages the motor.
However, PWM settings must match the motor. Frequency, voltage level, duty cycle range, and common ground all matter. If one setting is wrong, the motor may not respond well.
RS485 control is useful when the motor needs remote communication. It is often used in industrial systems, fan arrays, HVAC equipment, and building automation.
Instead of a simple voltage signal, the controller sends digital commands. The motor can receive start, stop, speed, or status requests. In some systems, it can also send operating feedback.
RS485 is especially useful when multiple EC motors operate in one system. It supports longer wiring runs and better system-level control.
Modbus is a common communication protocol. It often works over RS485. When an ec motor supports Modbus, the controller can send structured commands and read useful data.
For example, the system may set target speed, read actual speed, check a fault code, or monitor operating status. This is useful for maintenance and remote diagnostics.
Modbus control is more complex than 0–10V control. But it gives more information and better integration.
Some EC motor setups use a separate inverter or drive unit. This can provide wider control options, especially in customized machinery.
This method may suit high-power equipment, retrofit projects, or applications where the control system already uses inverter logic. It can also help when the customer wants centralized parameter settings.
Still, inverter control must match the motor type. Do not assume every motor can use the same drive method.
Closed-loop control uses feedback. The controller sends a command, then checks actual motor speed or system pressure. If there is a difference, it adjusts the signal.
This method is valuable when stable output matters. Examples include constant airflow, pressure control, precision dosing, and cooling systems under changing load.
Tip：For airflow systems, closed-loop control often works better than fixed speed because filters, ducts, and pressure can change over time.
Start with power. Check the required voltage, phase, and rated input range. Also confirm grounding requirements.
Power wiring and control wiring should be treated as separate circuits. Mixing them can create noise, faults, or safety risks. Good grounding also helps reduce unstable signal behavior.
Next, decide how the motor will receive commands. The main options are 0–10V, PWM, RS485, Modbus, start/stop, or inverter control.
Choose the method based on the existing control system. A simple fan speed knob may use 0–10V. A building management system may use RS485 or Modbus. A digital board may prefer PWM.
Signal wires need a reference point. For analog and PWM control, the common terminal is often required. Without it, the motor may not read the signal correctly.
Feedback wires are different from command wires. A speed output may tell the controller how fast the motor is running. Do not connect feedback output as if it were a speed input.
Speed limits protect system performance. Running too slowly may reduce cooling or airflow. Running too fast may create noise, vibration, or overload.
Some systems also allow ramp-up and ramp-down settings. A smooth ramp reduces sudden current change and mechanical stress.
A motor may run well on a bench but behave differently in a real system. Fans face duct pressure. Pumps face fluid resistance. Machinery faces changing load.
Test the motor after installation. Check speed response, current draw, airflow, vibration, noise, temperature rise, and fault behavior.
Note：Final testing should happen under real load. No-load testing cannot prove full system stability.
HVAC systems need flexible speed control. Air demand changes during the day. Temperature, pressure, and occupancy also change.
A 0–10V signal is often enough for basic speed control. RS485 or Modbus is better when the system needs remote control, monitoring, or fault reporting.
Ventilation systems benefit strongly from variable speed control. When full airflow is not needed, the fan can slow down. This reduces noise and energy use.
For centrifugal blowers, pressure changes matter. A closed-loop setup can help maintain stable airflow under changing duct resistance.
Compact equipment may need stable speed and torque. A dosing pump, for example, needs repeatable output. Poor control can cause flow errors.
PWM or communication control may work better here, depending on the required precision. Feedback can improve repeatability.
Industrial systems often need PLC control, remote signals, and fault monitoring. RS485 or Modbus can help integrate the motor into a larger system.
For custom machinery, control selection should happen early. It affects wiring, cabinet design, software logic, and maintenance access.
The motor must match the power source. Wrong voltage can prevent startup or damage electronics. Always check input ratings before wiring.
Power quality also matters. Unstable supply can cause faults, noise, or speed fluctuation.
The control method must support the required speed range. Some applications need wide adjustment. Others need stable torque at lower speed.
A fan system mainly cares about airflow and pressure. A pump or machine may care more about torque and repeatability.
The signal type must match the motor input. A controller that outputs PWM cannot always control a 0–10V input directly. A Modbus system cannot work unless the motor supports the protocol.
If the signal type is wrong, the motor may not start, may run at full speed, or may change speed in an unstable way.
EC motors often work in equipment exposed to heat, dust, moisture, or long operating hours. Control reliability depends on the environment.
For fan and ventilation projects, enclosure design, airflow path, cable routing, and protection grade should all be checked.
First, check the power supply. Then check the enable signal, fuse, wiring, and protection status. Some motors will not start if the start/stop terminal is open.
Also check whether the speed command is above the minimum start level. In some setups, a very low analog signal may not start rotation.
If speed stays fixed, check the control signal. Use a meter to confirm analog voltage. For PWM, check the duty cycle and frequency. For RS485, check address and communication settings.
Also confirm the motor is in the correct control mode. Some systems need parameter settings before they accept external commands.
Unstable speed often comes from poor grounding, signal noise, loose wiring, or unstable load. Long signal cables may also create interference.
Separate power cables from signal cables when possible. Use shielded cable when the environment has high electrical noise.
For RS485 or Modbus, check A/B wiring first. Then check baud rate, parity, device address, and termination resistance.
If multiple motors share one line, address conflicts can also cause failure. Each device should have a clear address.
Tip：When troubleshooting communication, test one motor first. Add more motors only after the first one responds correctly.
Controlling an ec motor starts with the right signal, wiring, and load test. 0–10V, PWM, RS485, Modbus, and inverter control each serve different needs. Suzhou Dowell Ventilation Technology Co., Ltd provides EC motors and EC fans designed for smart control, low noise, energy savings, and custom ventilation projects.
