In the realm of modern ventilation and air movement technology, the term "EC" is increasingly prevalent, especially when discussing fans and motors. But what does EC mean on a fan? Understanding the significance of EC technology is crucial for industries seeking energy efficiency and advanced control in their ventilation systems.
EC stands for Electronically Commutated. An EC fan is equipped with an electronically commutated motor, which combines AC and DC voltages, bringing together the best of both technologies. This innovation results in a fan that is highly efficient, compact, and controllable. Industries worldwide are adopting EC fans to reduce energy consumption and enhance performance.

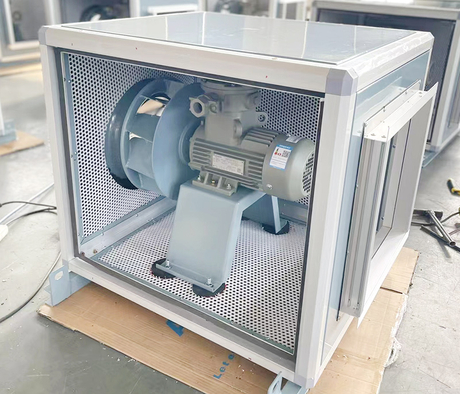

One of the most prominent types of EC fans is the EC centrifugal fan, recognized for its exceptional efficiency and versatility. These fans are integral to various applications, including HVAC systems, data centers, and industrial ventilation.
To fully grasp the impact of EC fans, it's essential to understand the technology behind electronically commutated motors. EC motors are brushless DC motors powered by an AC power supply. They integrate the motor and the inverter (electronics) into one unit, allowing for precise control and high efficiency.
Traditional AC motors rely on the frequency of the power supply for their speed control, which can limit their efficiency and controllability. In contrast, EC motors convert the incoming AC power to DC internally and then back to a controlled AC signal to drive the motor. This process allows for variable speed control and improved efficiency across a wide range of operating conditions.
The progression from AC to DC and now to EC technology represents significant advancements in fan and motor design. Early fans operated using simple AC motors, which were robust but lacked efficiency and control. The introduction of DC motors offered improved controllability but came with maintenance challenges due to brushes and commutators.
EC technology eliminates these drawbacks by combining the benefits of both AC and DC motors. EC fans offer the efficiency and controllability of DC motors without the need for brushes, resulting in reduced maintenance and longer lifespans. This advancement marks a significant shift in how industries approach ventilation and air movement solutions.
Understanding the distinctions between AC, DC, and EC motors is crucial for selecting the right fan for a given application. AC motors are known for their simple design and durability but are limited in speed control and energy efficiency. DC motors offer better speed control but require more maintenance due to brush wear.
EC motors, on the other hand, provide superior energy efficiency, precise speed control, and reduced maintenance requirements. They use electronic control to manage the motor's speed and torque, resulting in optimal performance. This combination of features makes EC fans an attractive option for modern ventilation systems.
EC fans operate by integrating a brushless DC motor with onboard electronics. The electronics convert the incoming AC power supply to DC, which then powers the motor. The motor's speed is controlled by adjusting the electrical input, allowing for precise airflow management.
This design eliminates the mechanical commutation system found in traditional DC motors, reducing mechanical wear and extending the motor's lifespan. The electronic control also enables features such as soft start, variable speed, and overload protection, enhancing the fan's functionality and safety.
Moreover, EC fans like the EC centrifugal fan are designed to deliver optimal performance in various environmental conditions. Their ability to adjust speed in response to system demands results in significant energy savings and improved system efficiency.
EC fans offer numerous benefits compared to traditional fan technologies. One of the most significant advantages is energy efficiency. EC motors are up to 30% more efficient than conventional AC motors. This efficiency translates into reduced energy costs and a lower environmental impact.
The superior efficiency of EC fans is due to their optimized motor design and intelligent control systems. They adjust their speed to match the required airflow, avoiding the energy waste associated with running at full speed regardless of demand. This variable speed capability ensures that the fan only uses the energy necessary for the current operating conditions.
For instance, in HVAC applications, an EC centrifugal fan can modulate airflow based on temperature or occupancy levels, leading to significant energy savings. The initial investment in EC technology is often offset by the reduction in energy costs over time.
EC fans offer precise speed control, enabling users to tailor airflow to specific needs. This level of control is beneficial in environments where conditions fluctuate, such as data centers or manufacturing facilities. The fans can respond dynamically to changes, maintaining optimal environmental conditions.
Additionally, EC fans are compatible with various control signals, including 0-10V, PWM, and MODBUS protocols. This compatibility allows for easy integration into building management systems and automation setups, enhancing overall system efficiency.
The brushless design of EC motors means there are fewer moving parts subject to wear and tear. This reduction in mechanical components extends the lifespan of the fan and decreases the frequency and cost of maintenance. Industries benefit from increased reliability and reduced downtime.
Furthermore, the integrated electronics often include diagnostic capabilities, allowing for proactive maintenance. Early detection of potential issues can prevent failures and prolong equipment life.
EC fans typically operate more quietly than traditional fans. The precise control over motor speed allows for operation at lower speeds when full power is not necessary, reducing noise levels. This feature is particularly important in environments like offices, hospitals, and residential buildings where noise can be a significant concern.
EC fans are versatile and find applications across numerous industries. Their efficiency and controllability make them suitable for any environment requiring precise airflow management and energy savings.
In the HVAC industry, EC fans are revolutionizing system design and operation. They are used in air handling units, heat pumps, and ventilation systems to improve indoor air quality and reduce energy consumption. The ability to modulate airflow ensures that HVAC systems can adapt to changing environmental conditions efficiently.
For example, integrating an EC centrifugal fan into a heat pump system can enhance performance by adjusting to the precise heating and cooling demands of the space.
Data centers require reliable and efficient cooling solutions to prevent overheating of server equipment. EC fans provide the necessary precision and responsiveness to maintain optimal temperatures. Their energy efficiency contributes to lower operating costs, which is critical given the high energy demands of data centers.
The use of EC fans in server racks and cooling systems allows data centers to implement advanced cooling strategies, such as aisle containment and variable airflow based on real-time temperature monitoring.
Manufacturing facilities and industrial plants benefit from the robust performance of EC fans. They are used to control environmental conditions, remove contaminants, and regulate airflow in processes where precision is essential. The durability and low maintenance requirements make EC fans ideal for demanding industrial environments.
Additionally, the energy savings provided by EC fans align with industry efforts to reduce operating costs and comply with environmental regulations.
In agriculture, EC fans are used in greenhouse ventilation, livestock housing, and storage facilities. They help maintain optimal conditions for plant growth and animal welfare by providing precise control over temperature and humidity.
For instance, incorporating an EC centrifugal fan in a poultry barn can improve air circulation, enhance animal comfort, and reduce energy costs.
Real-world applications of EC fans highlight their impact on energy savings and system performance. Several case studies illustrate how industries have benefited from transitioning to EC technology.
A commercial office building upgraded its HVAC system by replacing traditional AC fans with EC centrifugal fans. The result was a 25% reduction in energy consumption related to ventilation. The precise control also improved indoor air quality by maintaining consistent airflow based on occupancy levels.
The building management reported a return on investment within two years due to the energy cost savings. This case exemplifies the financial and environmental benefits of adopting EC fan technology.
A data center implemented EC fans in its cooling system to address rising energy costs and equipment failures due to overheating. The EC fans provided variable speed control, allowing the cooling system to respond dynamically to temperature fluctuations. This adaptability led to a 30% decrease in cooling energy consumption and improved equipment reliability.
The data center also benefited from the reduced noise levels of EC fans, creating a better working environment for on-site personnel.
As industries continue to prioritize energy efficiency and sustainability, EC fan technology is poised for further advancements. Innovations in materials, electronics, and integration with smart systems are on the horizon.
The IoT revolution is influencing the development of EC fans, enabling them to connect with other devices and systems for enhanced control and monitoring. Smart EC fans can provide real-time data on performance, energy consumption, and maintenance needs, allowing for predictive maintenance and optimized operation.
This connectivity facilitates integration with building management systems, contributing to the overall efficiency and intelligence of facilities.
Advancements in materials science are leading to lighter and more durable fan components. Composite materials and innovative blade designs improve performance by enhancing airflow and reducing noise. These improvements contribute to the overall efficiency and effectiveness of EC fans.
Manufacturers are exploring new manufacturing techniques, such as 3D printing, to create custom fan components tailored to specific applications.
As governments worldwide impose stricter energy efficiency regulations, EC fan technology will play a crucial role in helping industries comply with new standards. The increased demand for energy-efficient solutions will drive further innovation and adoption of EC fans.
Organizations can stay ahead of regulatory changes by investing in EC technology, ensuring they meet or exceed compliance requirements.
Understanding what EC means on a fan reveals the significant impact of electronically commutated technology on modern ventilation systems. EC fans, particularly the EC centrifugal fan, offer substantial advantages in energy efficiency, control, and longevity over traditional fan technologies.
Industries across the globe are adopting EC fans to reduce operational costs, meet regulatory requirements, and contribute to environmental sustainability. As technology advances, EC fans will continue to evolve, integrating with smart systems and utilizing advanced materials to enhance performance further.
For organizations seeking to improve their ventilation systems, investing in EC fan technology is a strategic decision that offers both immediate and long-term benefits. The shift toward EC fans signifies a commitment to innovation, efficiency, and a sustainable future.
