How To Choose The Right EC Motor for Ventilation And Blower Applications?

Transitioning from traditional AC and belt-driven systems to Electronically Commutated (EC) technology is no longer just an industry trend. It is a regulatory and financial necessity. Strict decarbonization targets, including stringent DOE standards and European ErP directives, combine to force this shift alongside soaring operational utility costs. However, securing superior efficiency requires more than a simple purchase. If you select the wrong specification for a specific blower application, you risk negating all expected returns. Poor choices often lead to frustrating integration hurdles, control mismatches, or premature environmental failures. We designed this guide to give facility managers, engineers, and procurement teams a concrete, engineering-first framework. You will learn how to properly evaluate and shortlist advanced motor options. We focus heavily on matching aerodynamics, control protocols, and environmental compliance to your exact facility needs. By the end, you will know exactly how to specify the perfect system upgrade.

Key Takeaways

• TCO Over Initial Price: Electricity accounts for roughly 96% of a commercial motor's lifetime cost; the typical ~10% premium for an EC motor is often recovered within 12 months.

• Built-in Efficiency: EC motors eliminate the physical friction of belt drives and the need for bulky external Variable Frequency Drives (VFDs).

• System Synergy: Matching static pressure, airflow (CFM), and control protocols (0-10V, Modbus) to your Building Management System (BMS) is critical for partial-load efficiency.

• Compliance & Safety: High-efficiency EC options (IE4/IE5) are now mandatory in many regions, while specific IP or ATEX ratings are non-negotiable for harsh environments.

Define Baseline Aerodynamic and Operational Demands

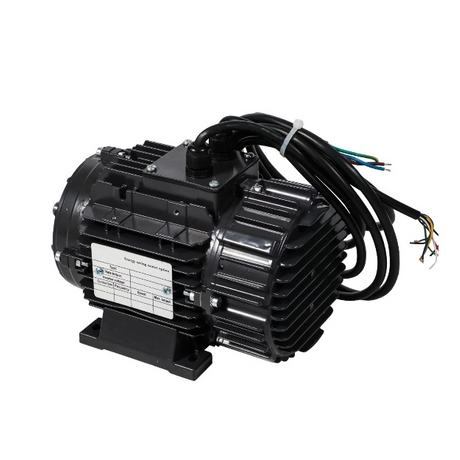

Selecting the ideal EC Motor begins with strict physics. You must map the exact aerodynamic requirements of your facility before looking at electrical specifications.

1. Calculate Airflow and Static Pressure: First, define the exact Cubic Feet per Minute (CFM) required to ventilate the space properly. Next, map the system’s static pressure. This represents the physical resistance caused by ductwork, dense filters, and heat exchangers. Use system performance curves to ensure the motor operates near its peak efficiency point. You should never size a motor based purely on its maximum theoretical output.

2. Determine Operational Duty Cycle: Identify your operational rhythm. Does the application require continuous operation, known as an S1 Duty Cycle? Or does it rely on intermittent bursts of airflow? EC technology excels in partial-load scenarios. Unlike traditional induction models where efficiency drops off a cliff off-peak, EC units maintain a remarkably flat curve. They can sustain approximately 85% efficiency even when dialed down to 20% speed.

3. Assess Form Factor (Internal vs. External Rotor): Analyze your spatial constraints. External rotor designs offer a massive spatial advantage in blower applications. Because the rotor sits on the outside, you can attach it directly to the impeller. This drastically reduces the overall physical footprint of the EC fan motor assembly. It also improves direct airflow cooling across the internal components.

Best Practices for Aerodynamic Sizing

• Common Mistake: Sizing airflow capacity without accounting for the increased static pressure of higher-rated MERV filters.

• Pro Tip: Always cross-reference the fan performance curve against your calculated system resistance curve to find the true operating point.

Evaluate Lifecycle Returns Over Initial Price

Securing project approval requires a robust financial justification. In industrial applications, the initial purchase price remains practically negligible compared to long-term energy consumption.

The 96% Rule: Electricity usage dictates the financial reality of commercial ventilation. Energy consumption makes up roughly 96% of a commercial motor's complete lifecycle cost. While advanced electronically commutated models carry a slight purchase premium, operational savings quickly absorb this difference.

Efficiency Ratings (IE4 and IE5): Modern regulations push the boundary of electrical efficiency. Look specifically for IE4 (Super Premium) or IE5 (Ultra-Premium) rated equipment. Upgrading from an older IE2 or IE3 standard to an IE5 standard yields massive dividends. You can reduce energy losses by up to 20% per efficiency tier.

The Chain-Reaction Benefit Model: Upgrading your motor triggers a positive cascade across your entire HVAC infrastructure. Here is how the physics play out in real-world applications:

• Higher Electrical Efficiency: The motor converts more electricity directly into aerodynamic work.

• Lower Thermal Loss: The system wastes significantly less energy as heat.

• Reduced Thermal Stress: Internal bearings and windings experience far less heat degradation.

• Extended Lifespan: Mechanical components last longer, and acoustic noise drops noticeably.

Furthermore, less heat generation from the motor itself reduces the secondary cooling load on surrounding HVAC equipment. Air Handling Units (AHUs) and cooling towers work less hard to maintain baseline temperatures.

Assess Control Protocols and System Integration

The intelligence of modern ventilation lies in its connectivity. Proper protocol integration ensures your equipment responds dynamically to building conditions.

Elimination of External VFDs: Advanced designs feature onboard electronics and built-in variable speed drives. You eliminate the need for external Variable Frequency Drives entirely. This eradicates extra hardware costs, removes complex external wiring, and saves valuable control panel space.

BMS and Sensor Integration: You must ensure the selected unit supports your facility's exact control architecture. Evaluate compatibility carefully. Basic environments might only require analog signals like 0-10V, 4-20mA, or PWM. However, sophisticated smart buildings demand complex digital communication. Look for Modbus-RTU or modern IoT frameworks. These allow automated, granular responses to Volatile Organic Compounds (VOCs), ambient temperature, or room occupancy sensors.

Soft-Start Capabilities: Always verify built-in soft-start functionality. This crucial feature gradually ramps up the rotational speed. It successfully mitigates instantaneous inrush current on your electrical grid. Equally important, it drastically reduces physical shearing stress on the blower’s mechanical components during startup events.

Match Motor Build to Environmental and Regulatory Realities

A highly efficient unit means nothing if environmental hazards destroy its electronics. You must match physical construction to ambient realities.

Harsh Environment Protection: Facilities dealing with corrosive gases, high-moisture washing, or heavy dust loads require ruggedized equipment. Evaluate Ingress Protection (IP) ratings thoroughly. Determine the necessity of TEFC (Totally Enclosed Fan Cooled) enclosures. For extreme conditions, specify material upgrades like 304 or 316 stainless steel housings. Alternatively, utilize bifurcated fan designs. These specialized units physically isolate the driving components away from the contaminated airstream.

Spark-Free and Explosion-Proof Needs: Traditional DC components use carbon brushes. These brushes create physical friction and electrical sparks. Because modern electronically commutated designs are brushless, they are inherently safer. They serve as excellent solutions for hazardous, volatile zones. Specify strict ATEX certifications or IP68 ratings if operating near combustible gases or dust.

Regulatory Compliance Verification: Global efficiency mandates grow stricter every year. Ensure your shortlisted units meet localized mandates to avoid future-proofing failures. Verify compliance with US DOE regulations, European Eco-design ErP directives, CE marking, UKCA requirements, or UL safety certifications depending on your installation region.

Environmental Protection Standards Chart

The Upgrade Path: Replacing AC or Belt-Drive Systems

Transitioning away from legacy infrastructure requires careful mechanical planning. Understanding the physical differences dictates retrofit success.

Direct-Drive vs. Belt-Drive Realities: Compare the mechanical realities carefully. Belt drives suffer from inherent friction and transmission loss. They demand frustrating routine maintenance, including constant belt tensioning and bearing lubrication. They are also significantly heavier. Direct-drive setups eliminate these friction losses entirely. However, acknowledge current market limitations. Ultra-high horsepower applications exceeding 10hp may currently have fewer off-the-shelf direct-drive options compared to massive legacy induction systems.

Drop-In Replacement Feasibility: Installation labor often dictates project viability. Look for manufacturers designing equipment specifically as physical drop-in replacements. These units match the bolt patterns and shaft dimensions of legacy AC setups perfectly. This minimizes expensive custom fabrication or disruptive ductwork modifications during facility retrofits.

Myth-Busting Low-Speed Overheating: A common engineering myth persists regarding low-speed operation. Skeptics argue motors overheat at low speeds due to reduced cooling fan RPM. We must clarify this misconception. Traditional induction units do overheat at low speeds. However, modern permanent magnet technology generates inherently less heat from the start. This superior thermal profile allows safe, sustained operation at very low RPMs without thermal degradation.

Conclusion

Selecting the optimal ventilation equipment follows a strict logical sequence. You must start with aerodynamics by defining exact airflow and static pressure needs. Next, filter your choices by environmental realities, securing necessary IP or ATEX ratings. Then, select units matching your specific control architecture, whether utilizing basic 0-10V signals or comprehensive Modbus integration. Finally, justify the decision through lifecycle energy savings rather than upfront purchase price.

Next Step Action: Stop relying on generic efficiency claims. Encourage your procurement team to request a localized energy savings calculation from manufacturers. Use your facility's exact local utility rates ($/kWh) alongside estimated operating duty cycles. Project the exact payback period before initiating any final procurement orders.

FAQ

Q: Do I need an external VFD if I upgrade to an EC motor?

A: No. These advanced motors feature integrated electronic commutation. This means the variable speed control technology is built directly into the rear housing. You eliminate the cost, wiring, and wall space required by traditional external Variable Frequency Drives.

Q: Are EC motors significantly more expensive than traditional AC motors?

A: The initial capital expense is typically about 10% higher. However, the operational power costs drop dramatically, often by 30-50%. Due to these steep energy reductions, the financial payback period for upgrading is frequently under one single year.

Q: Do EC motors lose efficiency when running at lower speeds?

A: Unlike standard AC induction motors, which suffer massive efficiency drops outside their nominal design speed, electronically commutated motors maintain a remarkably flat efficiency curve. They frequently retain 85% or higher electrical efficiency even when dialed down to a 20% operational load.
