A:
Yes, all our products undergo rigorous testing for thermal cycling, humidity exposure, vibration, and mechanical shock. This ensures that they can operate stably in harsh environments, making them suitable for a wide range of applications.
EC fans for dry cooler, air-cooled condensers,
and air-cooled heat exchanger
In high-energy-consumption server scenarios such as AI and high-performance computing liquid cooling solutions, the efficiency and stability of cooling systems directly impact equipment operational safety and operational costs. Liquid cooling technology has become an industry focus due to its superior heat dissipation efficiency. The cooling system utilizing EC fan-equipped dry coolers (air-liquid heat exchangers) provides significant advantages in water conservation, energy efficiency, and cost-effectiveness, greatly improving critical metrics like PUE (Power Usage Effectiveness) and WUE (Water Usage Effectiveness) for liquid-cooled data centers and computing hubs.

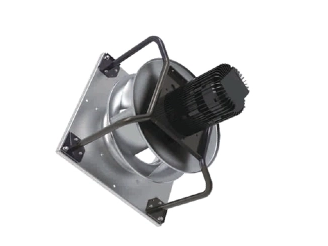

In high-latitude or high-altitude regions with large diurnal temperature variations, where ambient temperatures remain below 35°C for most of the year, the centrifugal EC fans with intelligent speed optimization can automatically adjust airflow based on real-time environmental temperatures and coolant inlet/outlet temperatures.
EC fan based dry cooler operational modes:
Dry operation:
When ambient temperature is below 30°C, the dry cooler achieves heat exchange solely through EC fans.
Wet operation:
When ambient temperature exceeds 35°C, spray humidification or mist evaporation enhances heat dissipation capacity.
Active refrigeration assistance:
Activates compression refrigeration under extreme high-temperature conditions.
Key roles of EC axial fans in this system:
a. Built-in inverter design enables precise real-time speed control responding to load variations and ambient temperature changes.
b. Stepless speed regulation reduces energy consumption and noise while extending product lifespan.
c. IP65-rated internal rotor motor ensures reliable outdoor operation in harsh environments.
d. RS485 communication supports remote monitoring and automated control integration.
EC Fan Features
Low noise: EC exhaust fan with Aluminum sickle blades for low noise.
Fan drives : Electronically commutated fan motors with built in inverter drive for smooth operation.
Accurate temperature control: RS485 and 0-10V assure fans’ speeds up and down to regulate temperature. Excellent low ambient control automatically.
Housing: Heavy gauge galvanneal steel with powder-coat and UV stabilizer suitable for outdoor service.
Technical Specification
All EC fans are inverter built-in type / Power cables and controller cables in 1.5M length
RS485 and 0-10V and communication protocol free of charge / Customization is acceptable

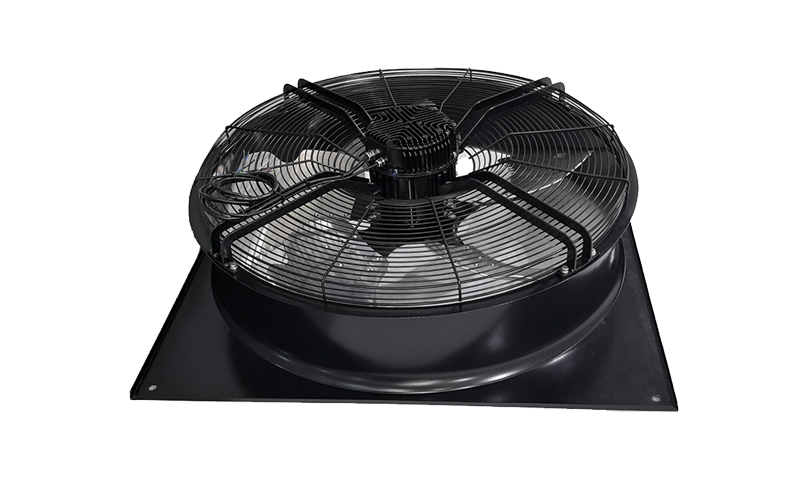

This EC axial fan is designed for heat pump, air cooled condensing unit, dry cooler or air cooled heat exchanger.
Model EC 500
Impeller diameter : 500mm
Power supply: 360-460VAC, 50/60Hz
Speed range: 600-1200rpm
Airflow 1500-7000m3/h
Static pressure 25-80Pa
Model EC 560
Impeller diameter : 560mm
Power supply: 360-460VAC, 50/60Hz
Speed range: 400-1000rpm
Airflow 1500-5000m3/h
Static pressure 20-90Pa
Model EC 630
Impeller diameter : 630mm
Power supply: 360-460VAC, 50/60Hz
Speed range: 400-950rpm
Airflow 1800-11500m3/h
Static pressure 30-120Pa
Model EC 660
Impeller diameter : 660mm
Power supply: 360-460VAC, 50/60Hz
Speed range: 400-1000rpm
Airflow 3600-12500m3/h
Static pressure 20-130Pa
Model EC 710
Impeller diameter : 710mm
Power supply: 360-460VAC, 50/60Hz
Speed range: 400-950rpm
Airflow 2800-14500m3/h
Static pressure 40-1450Pa
Model EC 760
Impeller diameter : 760mm
Power supply: 360-460VAC, 50/60Hz
Speed range: 400-950rpm
Airflow 4000-18000m3/h
Static pressure 40-150Pa
Model EC 800
Impeller diameter : 800mm
Power supply: 360-460VAC, 50/60Hz
Speed range: 400-960rpm
Airflow 4000-23000m3/h
Static pressure 40-160Pa
Model EC 850
Impeller diameter : 850mm
Power supply: 360-460VAC, 50/60Hz
Speed range: 400-920rpm
Airflow 5000-25000m3/h
Static pressure 40-170Pa
Model EC 910
Impeller diameter : 910mm
Power supply: 360-460VAC, 50/60Hz
Speed range: 300-850rpm
Airflow 4000-28000m3/h
Static pressure 30-170Pa
Model EC 950
Impeller diameter : 950mm
Power supply: 360-460VAC, 50/60Hz
Speed range: 300-920rpm
Airflow 4000-37000m3/h
Static pressure 40-190Pa
Heat pump, air cooled condensing unit, dry cooler,
air cooled heat exchanger
EC fan for Hear pump
Different airflow and static pressure meets customer request
Save power consumption at different ambient temperature
Variable speed control and remote detect
IP65 protection grade
RS485 and 0-10V logic control

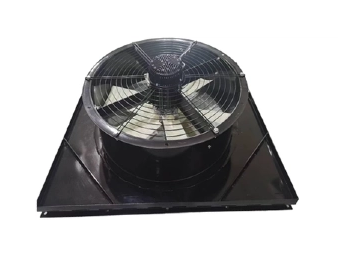

EC fan for dry heat exchanger
Different airflow and static pressure meets customer request
Save power consumption at different ambient temperature
Variable speed control and remote detect
IP65 protection grade
RS485 and 0-10V logic control

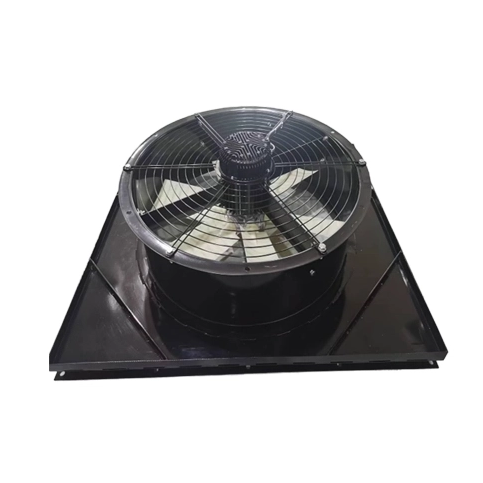

EC fan for dry cooler
Different airflow and static pressure meets customer request
Save power consumption at different ambient temperature
Variable speed control and remote detect
IP65 protection grade
RS485 and 0-10V logic control
FAQs
- Q: Are your products suitable for use in harsh environments?
- Q: How can I customize an EC motor or fan to suit my specific needs?A:Our team of experts can work with you to customize an EC motor or fan based on your specific technical requirements. This includes tailoring the speed, airflow, power consumption, and noise levels to meet your unique application scenarios. We also offer comprehensive technical support and solutions to ensure seamless integration into your existing systems.
- Q: How do I maintain my EC motor or fan to ensure its long-term performance?A:Regular maintenance is crucial for ensuring the long-term performance of your EC motor or fan. We recommend following the maintenance instructions provided in our safety and usage manuals. This may include cleaning the fan blades, checking the bearings, and ensuring that all electrical connections are secure. Additionally, we offer maintenance services and can provide technical support to help you with any maintenance-related questions or issues.
- Q: Do you provide technical documentation and support for your products?A:Yes, we provide comprehensive technical documentation and support for our products. This includes 3D models, panel cutouts, part number configurators, special function circuits, technical terminology, ingress protection (IP) ratings, and safety and usage manuals. Our team of experts is also available to assist you with any technical questions or issues you may have.
EC axial fan speed self controlled by temperature sensor
Typically, users rely on logic control boards to regulate the speed of EC axial fans. This setup is generally suited for scenarios involving multiple EC fans or the simultaneous control of other equipment, such as water pumps and compressors. However, applying this type of logic control to a single EC fan can make the system unnecessarily complex. To address this, we have developed an automated single-fan control solution. It allows the signal from a temperature transmitter to be fed directly to the EC motor, resulting in easy installation and reduced costs. Users can simply set their desired temperature range; the temperature sensor will then output a corresponding 0-10V signal to the EC motor, achieving automatic speed adjustment. Additionally, this system is highly versatile and can also be controlled using other types of sensors.
