Brief introduction:

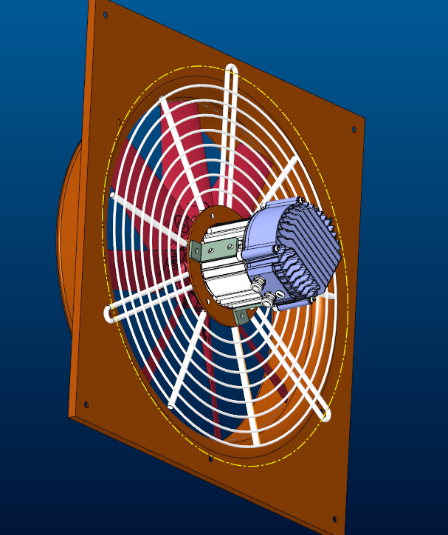

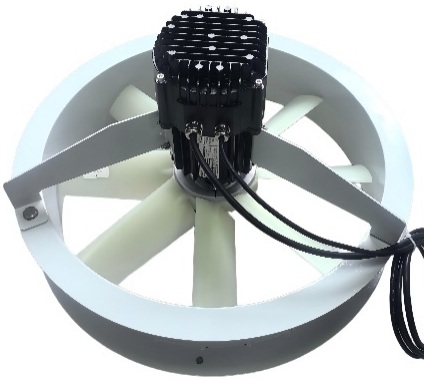

- Panel type axial fans/Plate type axial fan
- With EC technology IE5 efficiency
- Inverter built-in, plug and play
- Variable speed regulation, long life, less maintenance
Motor
- EC Internal rotor motor with built-in inverter
- Permanent magnet synchronous brushless motor, i.e. PMSM

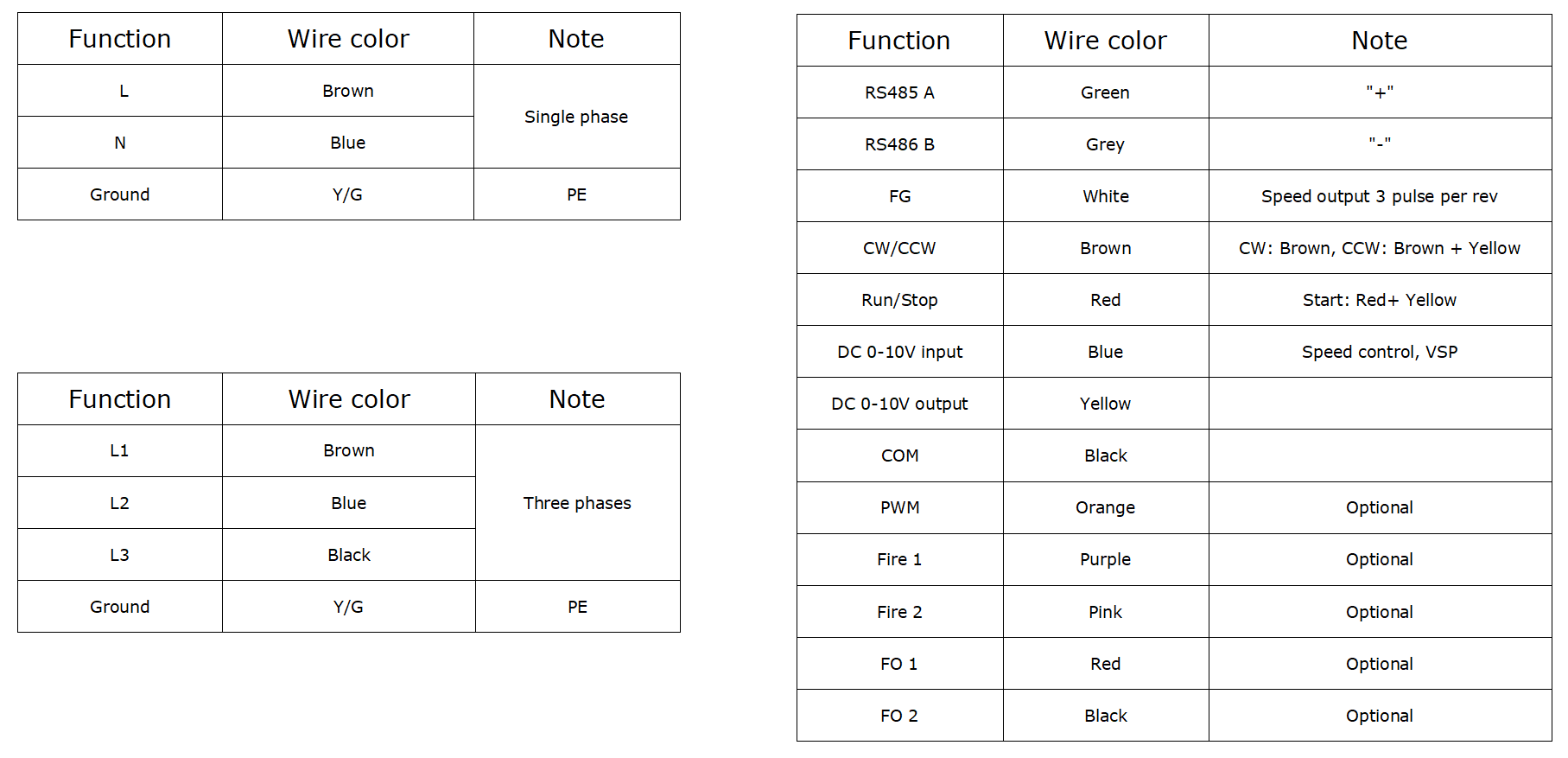

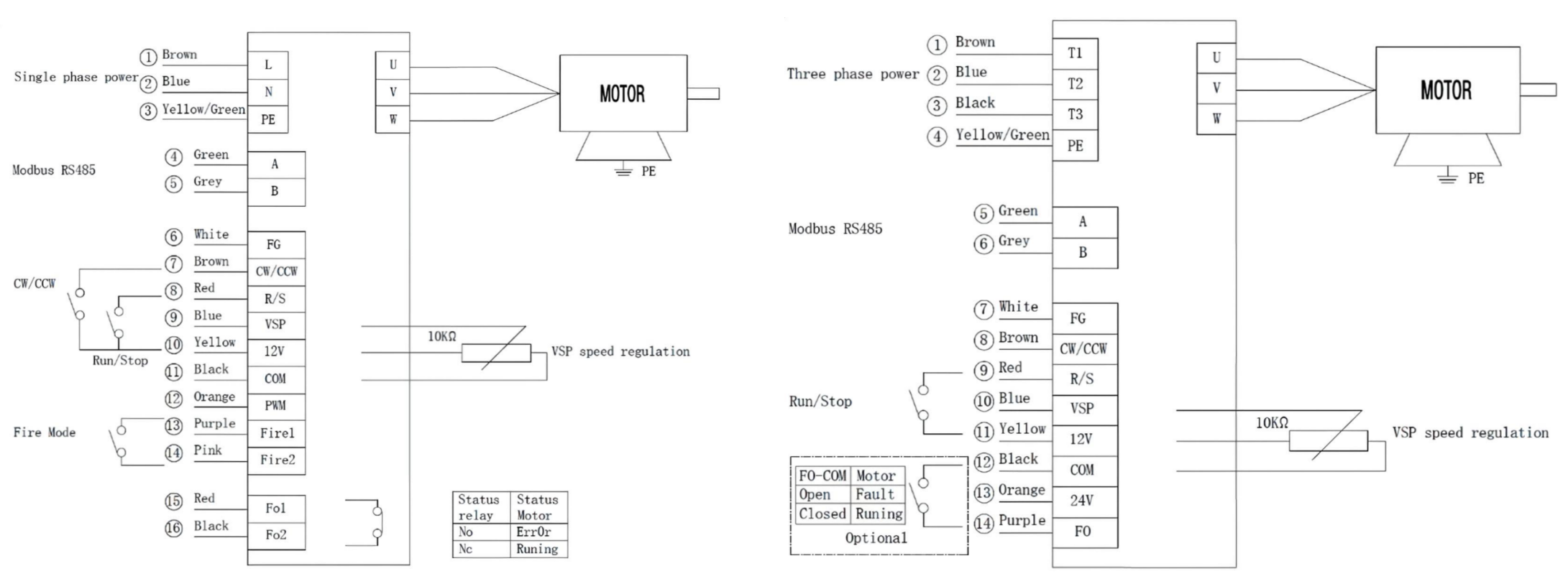

- Control cable 1.5M length with RS485, 0-10V and other signals input
- F class, IP55, IP56, IP65 or IP66 as options
- Wide range power inputs as 200-270V (1 phase) and 360-460V (3 phases) 50/60HZ
- Electronic protection: over voltage, over current, over temperature, locked rotor, short circuit to ground, phase loss, anti-wind(optional)
- Working temperature: -25℃- + 50 ℃，
- Certificate: CE ETL
Fan
- Airflow direction from motor to impeller
- Blades material: Nylon or fiberglass reinforced polyamide
- Galvanized steel sheet frame and panel, with outdoor powder painting
- Protection grid at inlet or outlet as per application

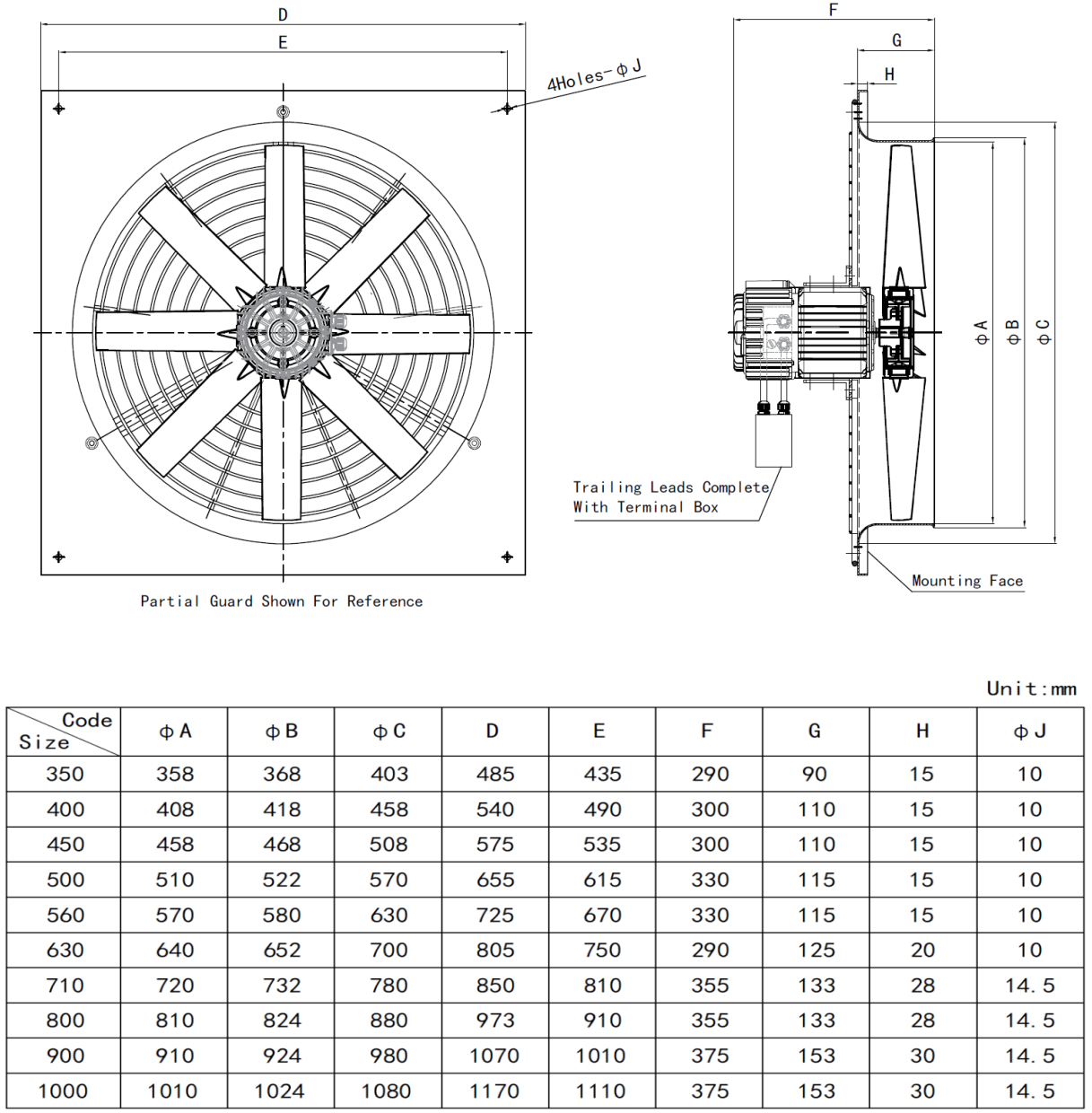

- Various sizes from 250mm to 1000mm
- Nylon impeller with high pressure
Applications
• Workshops • Sports halls • Shops • Sports halls • Industrial equipment • Warehouses • Kitchens
Relevant standards:
- Low voltage command EN60034-1
- Current harmonics EN61000-3-2
- Immunity EN61000-6-2
