Facility managers and HVAC engineers face aggressive energy compliance mandates today. Regulatory bodies enforce stricter guidelines every year. At the same time, operational costs continue to rise. Because of this, traditional induction motors are rapidly phasing out in variable-speed applications. Operators can no longer afford their significant power waste during partial-load runs.
Electronically Commutated motors offer a powerful, high-efficiency alternative. However, replacing legacy systems is not a simple swap. It requires a clear understanding of exact energy returns, application limits, and integration demands. You must weigh the upfront costs against long-term operational savings.
In this guide, you will learn the mechanical differences between traditional and modern drive systems. We will explore why the industry relies on new standards like IE4 and IE5. Finally, we provide a clear evaluation framework. You will know exactly when to upgrade your facility and when to keep your current equipment.
Technology shift: EC motors combine the durability of AC power with the efficiency and speed control of DC motors via built-in electronic rectification.
Energy reduction: By utilizing permanent magnets rather than powering two separate magnetic fields, an EC fan motor can reduce energy consumption by up to 70% in variable-speed applications.
System simplification: Integrated controls eliminate the need for bulky, external Variable Frequency Drives (VFDs) and wear-prone belt systems.
Application boundaries: While highly efficient, standard EC motors face physical limitations in extreme heat environments (over 80°C) unless paired with external drive configurations.

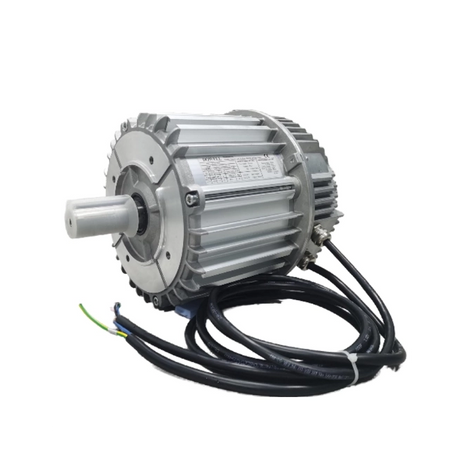

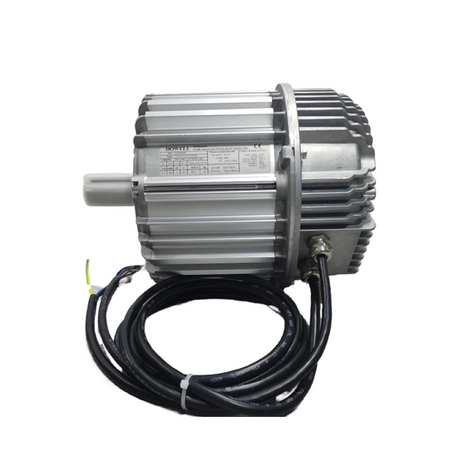

To understand the sudden shift in HVAC engineering, we must examine the internal mechanics. The baseline mechanism of an EC Motor is remarkably elegant. It operates as a brushless, direct current motor. However, it comes equipped with onboard electronics. These electronics allow it to connect directly to standard alternating current (AC) power grids. You get the robust power delivery of AC combined with the precise control of DC.
The magic happens inside the motor housing. An integrated rectifier intercepts the incoming AC power. It instantly converts this alternating current into direct current. Once converted, the motor uses Hall effect sensors to operate.
These sensors serve as the eyes of the motor. They constantly track the exact position of the rotor. By knowing where the rotor is at any given millisecond, the internal electronics can precisely regulate the magnetic fields in the stator. They fire electrical pulses exactly when needed. This eliminates the blind power consumption found in older technologies.
The core mechanical difference lies in magnetic field generation. Traditional AC induction motors are inherently wasteful. They waste energy powering both the stator and the rotor magnetic fields. The stator must induce a current in the rotor to create motion. This induction process causes "slip loss," meaning the rotor always spins slightly slower than the magnetic field.
EC technology solves this problem completely. We use permanent magnets for the rotor. Because the rotor already has its own magnetic field, we only need electrical power for the stator. This single-field requirement eliminates slip loss entirely. It ensures maximum electrical input translates directly into physical rotation.
For decades, AC induction motors dominated commercial buildings. They were cheap to manufacture and relatively easy to repair. However, modern efficiency requirements have exposed their critical flaws.
Controlling the speed of a traditional AC motor is highly inefficient. Imagine driving a car. You keep the gas pedal pushed to the floor. To control your speed, you simply press the brake at the same time. This sounds ridiculous, but it is exactly how traditional HVAC systems handle variable air volume. They run the AC motor at full speed and use physical dampers to restrict the airflow.
Efficiency plummets the moment the motor drops below its peak load. Running an AC motor at half capacity still draws massive amounts of electricity. This mechanical friction wastes power and strains the entire system.
Engineers tried to fix AC inefficiency by adding Variable Frequency Drives (VFDs). While VFDs allow speed modulation, they introduce a host of new problems. Consider the physical footprint and complexity issues of traditional setups:
Costly Additions: AC motors require expensive, externally mounted VFDs.
Harmonic Distortion: External drives create electrical noise that can disrupt other sensitive equipment in the building.
Complex Wiring: Installers must run shielded cables between the drive and the motor.
Bearing Damage: VFDs often induce shaft currents. These currents arc through motor bearings, causing premature physical failure.
Government policies are accelerating the transition. Modern energy standards leave little room for inefficient designs. The US Department of Energy (DOE) now enforces strict Fan Energy Rating (FER) standards. Globally, commercial projects must meet IE4 (Super Premium Efficiency) and IE5 (Ultra Premium Efficiency) standards.
Legacy AC fan configurations simply cannot meet these numbers. Their inherent slip losses cap their maximum efficiency. Consequently, they are becoming non-compliant for many commercial HVAC and refrigeration builds. Facility engineers must adapt or face heavy non-compliance penalties.
Switching technologies is a major business decision. It requires capital and planning. However, the financial and operational returns are highly compelling.
Let us look at the financial case. Upgrading your systems requires a higher initial capital expenditure (CapEx). Advanced electronics and permanent magnets cost more to manufacture. However, the operational expenditure (OpEx) drops significantly from day one.
By upgrading to an EC fan motor, facilities routinely see energy consumption fall by 30% to 70%. This massive reduction in utility bills creates a rapid payback period. Many buildings see a complete return on investment within one to three years. The exact timeline depends on your local utility rates and daily run-times.
Energy efficiency produces excellent secondary effects. Lower power consumption translates directly to less wasted heat. AC motors get incredibly hot during operation. This heat radiates into the facility.
Cooler operation reduces thermal stress on motor bearings. Bearings are the most common point of failure in any rotating equipment. By keeping them cool, you extend the equipment lifespan drastically. Furthermore, a cooler motor reduces the ambient cooling load in the facility. Your air conditioning does not have to work as hard to cool the mechanical rooms.
Modern buildings require smart technology. Facility managers need equipment that communicates effortlessly. EC motors deliver true plug-and-play retrofit capabilities.
They natively accept standardized control signals. You can connect them using 0-10V, PWM, or 4-20 mA interfaces. This makes networkability simple. You can integrate them into MODBUS-RTU networks or IoT sensor arrays. They even support Master-Slave configurations out of the box. You achieve advanced automation without complex custom wiring or third-party gateways.
Performance Comparison Chart
Feature | Traditional AC Motor + VFD | Modern EC Motor |
|---|---|---|
Efficiency at Partial Load | Low to Moderate (drops sharply) | High (maintains over 80% efficiency) |
Slip Loss | Yes (wastes power) | None (uses permanent magnets) |
Installation Complexity | High (requires shielded cables and external drive) | Low (plug-and-play onboard electronics) |
Heat Generation | High (increases cooling load) | Low (extends bearing lifespan) |
No technology is perfect. Despite their overwhelming advantages in energy reduction, these motors have distinct physical limitations. Facility managers must understand these risks to avoid catastrophic system failures.
The primary physical limitation is heat. Standard internal-control motors house highly sensitive electronics inside the casing. Prolonged exposure to extreme heat will fry these circuits. Furthermore, the standard permanent magnets rely on specific temperature ranges. They can begin to demagnetize at temperatures exceeding 80°C (176°F).
Once a magnet loses its charge, the motor is permanently damaged. This makes standard units unsuitable for extreme industrial exhaust applications. They are also strictly prohibited in emergency smoke extraction systems. In a fire scenario, the exhaust fans must survive incredibly high temperatures for hours. For these life-safety applications, traditional AC induction remains vastly superior.
Engineers have developed a workaround for harsh environments. Buyers must specify externally controlled systems. In this setup, the delicate drive components are mounted outside the heat stream. The permanent magnets are upgraded to high-temperature variants.
This mitigates failure risks in moderately hot environments. However, it increases installation complexity. It brings back some of the bulky characteristics we typically associate with VFDs.
There is a hidden environmental paradox. We use these motors to save energy and reduce our carbon footprint. However, they rely heavily on rare-earth metals like neodymium for their permanent magnets.
These metals carry complex supply chain dependencies. Mining them causes severe environmental extraction footprints. Toxic wastewater and soil degradation are common byproducts. Conversely, standard AC units use simple copper and steel. These materials are cheap, abundant, and highly recyclable. You must weigh this ecological trade-off when designing green buildings.
Upgrading is a strategic decision. You must audit your facility to ensure the technology matches the application. Use this framework to guide your next engineering project.
You will see the highest returns in highly variable environments. Consider these ideal use cases:
Air Handling Units (AHUs) & Fan Coil Units (FCUs): These systems constantly adjust to occupant loads. Variable speed control yields the highest financial return here.
Data Center Cooling: Server loads fluctuate wildly based on network traffic. Precision speed modulation prevents massive energy waste.
Acoustically Sensitive Spaces: Libraries, hospitals, and recording studios require silence. These motors eliminate the high-frequency hum commonly associated with VFD-driven AC setups.
Sometimes, older technology remains the better choice. Keep your AC systems in the following scenarios:
Continuous 100%-Load Operations: If your fan runs at full speed 24/7 without changing, keep it. AC efficiency is already high at peak load. Variable speed is unnecessary.
Heavy Industrial Applications: Extreme temperature zones like ovens, foundries, or emergency smoke exhausts will destroy delicate electronics.
Low-Budget Housing: Multi-family housing specs often rely on upfront capital limits. If the initial budget dictates the entire project, AC remains the cheapest immediate option.
Before purchasing, audit your current electrical infrastructure. Ensure your building management system can handle 0-10V or Modbus communications. Map out your expected RPM ranges. Note that these newer motors can run smoothly down to very low RPMs without overheating. Finally, request specific energy-savings calculation models from your vendors before proceeding. This proves the financial viability of the upgrade.
Decision Matrix Table
Application Scenario | Recommended Motor Type | Primary Reasoning |
|---|---|---|
Variable Air Volume (VAV) Systems | EC | Frequent speed adjustments maximize energy savings. |
Emergency Smoke Exhaust | AC | Must survive temperatures exceeding 400°C for hours. |
Data Center CRAH Units | EC | Network integration and precise thermal load matching. |
Continuous Conveyor Belts | AC | Fixed 100% speed makes advanced electronics unnecessary. |
Upgrading your facility is not a universal mandate. It is a calculated strategy for systems requiring dynamic load management. It helps you meet strict efficiency compliance and integrate with smart-building platforms. By eliminating slip losses and removing external drives, you streamline your mechanical rooms.
However, you must respect the physical limitations of the technology. Avoid placing them in extreme heat or continuous 100% load situations. Always evaluate your specific operational needs before committing capital.
Your next step should be a comprehensive energy audit. Review your current HVAC energy profile. Contact a facility engineering consultant to map the potential financial returns of a targeted retrofit pilot program. Start with your most variable loads first to prove the concept in your own building.
A: No. The electronics required to modulate speed are built directly into the EC motor's housing, eliminating the need for an external VFD. You simply provide standard AC power and a low-voltage control signal.
A: Due to the brushless design and lower operating temperatures, EC motors experience less mechanical wear. Specifically, the bearings face less thermal stress. They often outlast traditional AC motors significantly in variable-load conditions.
A: Yes. Many manufacturers design EC motors as direct drop-in replacements for legacy AC motors. They remove old belts and pulleys to create a simpler, direct-drive system that fits perfectly into the existing housing.
