Oversizing or undersizing ventilation systems directly impacts your operational costs, regulatory compliance, and equipment lifespan. Engineers face immense pressure to design high-performance spaces without wasting energy. Electronically Commutated (EC) fans offer superior variable-speed efficiency to solve this problem. However, you only realize this efficiency when you perform precise upfront airflow calculations based on dynamic building loads. Guesswork leads to excessive power consumption and loud acoustic profiles. A well-engineered approach prevents these issues entirely. This guide provides the critical engineering frameworks, core formulas, and evaluation criteria you need. We will explore how to calculate exact airflow requirements accurately. By following these steps, you can confidently specify the right EC fan system for any demanding environment.
Accurate EC fan airflow calculations prevent costly over-engineering and ensure ASHRAE/local compliance.
Baseline EC fan CFM requires knowing the target room volume, required Air Changes per Hour (ACH), and system static pressure.
Unlike traditional AC motors, EC fans require evaluating performance across a variable fan curve, not just a single peak operating point.
Proper specification requires factoring in real-world implementation risks, such as filter loading, duct leakage, and array scalability.
Relying on legacy estimation methods for modern EC systems creates massive financial risks. Many engineers still use outdated rules of thumb. They oversize fans simply to be safe. This practice wastes energy and causes premature motor wear. Excessive airflow also generates unwanted acoustic noise inside occupied spaces. You must connect accurate calculations to measurable success.
Precision ensures optimized power consumption in your building. Industry professionals usually track this metric as kilowatts per cubic foot per minute (kW/CFM). A highly optimized fan operates efficiently at partial loads. This efficiency reduces your monthly utility bills significantly. Proper sizing also guarantees verifiable indoor air quality (IAQ) for occupants. You deliver exactly the right amount of fresh air.
Meeting industry regulations serves as your operational baseline. Standards like ASHRAE 62.1 strictly dictate minimum ventilation rates for commercial spaces. You cannot achieve legal compliance if you do not understand your exact airflow needs. Proper calculations provide the documented evidence you need for inspectors. They prove your system meets all mandatory health and safety guidelines.
You must define several core variables before making any equipment selections. Identifying these numbers allows you to find the precise EC fan CFM you actually need. Accuracy here dictates the success of your entire project.
Space Volume (V): You calculate this by multiplying the length, width, and height of your application area. This exact cubic footage determines how much air the room holds.
Air Changes per Hour (ACH): Facility types dictate specific ACH requirements. A standard commercial office might need only 4 to 6 ACH. An industrial cleanroom might require anywhere from 20 to 60 ACH.
System Static Pressure (SP): Fans push air against resistance. You must map out all ductwork, dampers, filters, and cooling coils. These components create static pressure. The fan must overcome this resistance to move air effectively.
Environmental Factors: Baseline variables often assume standard conditions. You should adjust them for actual air density, ambient temperature, and site altitude. High-altitude installations require higher fan speeds to move the same mass of air.
Table: Recommended Air Changes per Hour (ACH) by Facility Type
Facility Type | Recommended ACH Minimum | Recommended ACH Maximum |
|---|---|---|
Commercial Offices | 4 | 6 |
Server Rooms / Data Centers | 15 | 30 |
Light Manufacturing | 6 | 10 |
Industrial Cleanrooms | 20 | 60+ |
Let us look at the foundational equation for determining volumetric flow. The standard formula is CFM = (Room Volume × ACH) / 60. The division by 60 simply converts hours into minutes. You must perform this basic math before selecting any hardware.
Consider a realistic commercial space measuring 10,000 square feet. It has a ceiling height of 12 feet. Your total room volume is 120,000 cubic feet. Local codes mandate 5 ACH for this specific occupancy type. Your calculation looks like this. You multiply 120,000 by 5 to get 600,000. You divide 600,000 by 60 to find your baseline requirement. Your system needs exactly 10,000 CFM to maintain compliance.
The three fundamental Fan Laws dictate how rotating equipment behaves dynamically. They apply perfectly to the variable-speed nature of modern EC fans. You must understand them to predict partial load performance.
Airflow varies directly proportionally to motor speed (RPM).
Static pressure varies proportionally to the square of the motor speed.
Brake horsepower varies proportionally to the cube of the motor speed.
These laws show exactly why EC technology is so efficient. If you decrease the RPM by 20%, your airflow drops by 20%. However, your power consumption drops by nearly 50%. You must understand these relationships to adjust your EC fan airflow accurately during off-peak scenarios. Never assume power drops linearly alongside motor speed.
Manufacturers provide detailed performance curves for all their fan models. You must evaluate this technical data against your calculated CFM. A fan curve plots airflow on the horizontal axis. It plots static pressure on the vertical axis.
Your goal is to identify the optimum "sweet spot" on this curve. The EC motor operates at peak aerodynamic efficiency in this specific zone. If your operating point falls too far left, the fan might stall. A stalled fan vibrates violently and moves very little air. If it falls too far right, motor efficiency plummets rapidly. You want your normal operating point situated near the middle of the performance envelope.
Theoretical calculations often fail to account for harsh real-world realities. Many engineers assume static pressure remains perfectly constant over time. This assumption proves highly dangerous in practice. You must design systems for changing conditions.
Filters capture dust and debris over their operational lifespan. This process is called filter loading. A clean air filter might present 0.2 inches of water gauge resistance. A dirty filter can easily double or triple that resistance. You must calculate your airflow requirements for the "dirty filter" state. This buffer ensures the fan has enough reserve power to maintain adequate ventilation as filters age.
Installations rarely perfectly match their original blueprints. Joints leak and field dampers fail to seal completely. You should factor in practical installation realities immediately. Industry experts typically recommend adding a 5% to 10% airflow loss margin. This simple buffer guarantees the system never ends up under-specced once fully commissioned.
Scaling from a single fan calculation to a multi-fan array introduces complexities. Parallel airflow behaves differently than standalone units. You must build in N+1 redundancy margins for mission-critical spaces. If one fan fails, the others must speed up to compensate automatically. You also need to plan for backdraft dampers or blank-off panels. These prevent air from short-circuiting backward through an inactive fan module.

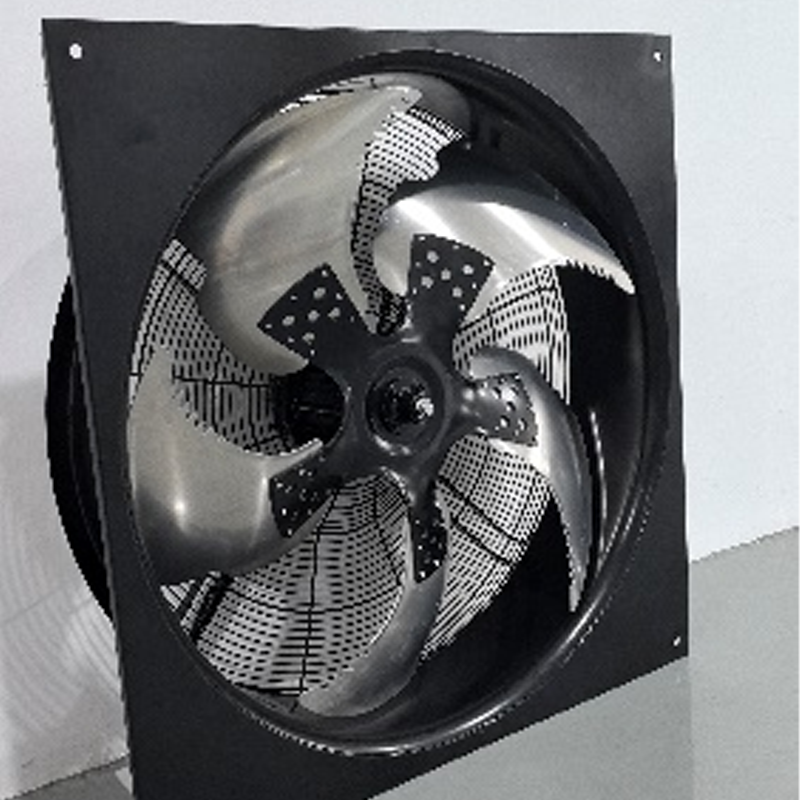

Once you finalize your numbers, you must select the appropriate hardware. You need to match your calculated performance data to specific fan geometries. Axial fans work beautifully for high-volume, low-pressure applications. They move massive amounts of air very efficiently. Centrifugal or plug fans handle high-pressure ductwork much better. They overcome heavy filter resistance with ease.
You also must evaluate how the fan accepts facility control inputs. Modern ventilation demands real-time adjustments based on occupancy sensors. Ensure the fan electronics accept 0-10V analog signals natively. They should also support Modbus or BACnet protocols. These digital protocols allow the unit to actually deliver the calculated variable airflow dynamically. Seamless integration prevents integration headaches later.
Demand concrete evidence from manufacturers before making a final purchase. Do not rely solely on marketing brochures. You should look for third-party tested performance data. AMCA certifications provide reliable proof of aerodynamic and electrical capabilities. Verifiable acoustic ratings ensure the fan meets your stringent noise criteria. Ask your vendor for detailed sound power level charts.
We recommend running a pilot calculation first on smaller building zones. For complex multi-fan arrays, ask your engineering vendor for extra help. Request a custom computational fluid dynamics (CFD) model. This advanced step visualizes the airflow patterns before you finalize any purchase orders. It highlights potential dead zones or turbulence issues early.
Calculating exact airflow requirements serves as a foundational engineering step. It bridges the critical gap between raw space dimensions and long-term system efficiency. Proper calculations eliminate design guesswork entirely. They prevent wasted electrical energy and safeguard your expensive ventilation infrastructure.
Take the time to evaluate room volume, required changes per hour, and accurate static pressure. Factor in realistic margins for dirty filters and duct leakage. We encourage you to consult with a qualified application engineer on your next major project. You can also download verified engineering software to refine your variables. Submit your system specifications for a technical review today to ensure optimal lifetime performance.
A: Traditional AC fans typically run at a fixed, single speed. You design them for peak load and simply turn them on or off. EC fans feature variable-speed drives built into the motor. You calculate airflow across a performance spectrum. This allows you to size the fan for both peak demands and highly efficient partial loads.
A: The fan will encounter much more resistance than anticipated. It will run at significantly higher RPMs trying to maintain the target airflow. This excessive speed dramatically increases power consumption and acoustic noise. Ultimately, underestimating resistance diminishes the core energy efficiency advantages of the EC motor.
A: Generic online calculators provide a rough baseline but lack engineering rigor. They usually ignore application-specific static pressure, duct leakage margins, and dirty filter states. You must factor in these complex variables manually. For multi-fan arrays or high-altitude installations, generic tools fail completely.
