Professional manufacturer of High-quality cooling fans
 |
| Quantity: | |
|---|---|

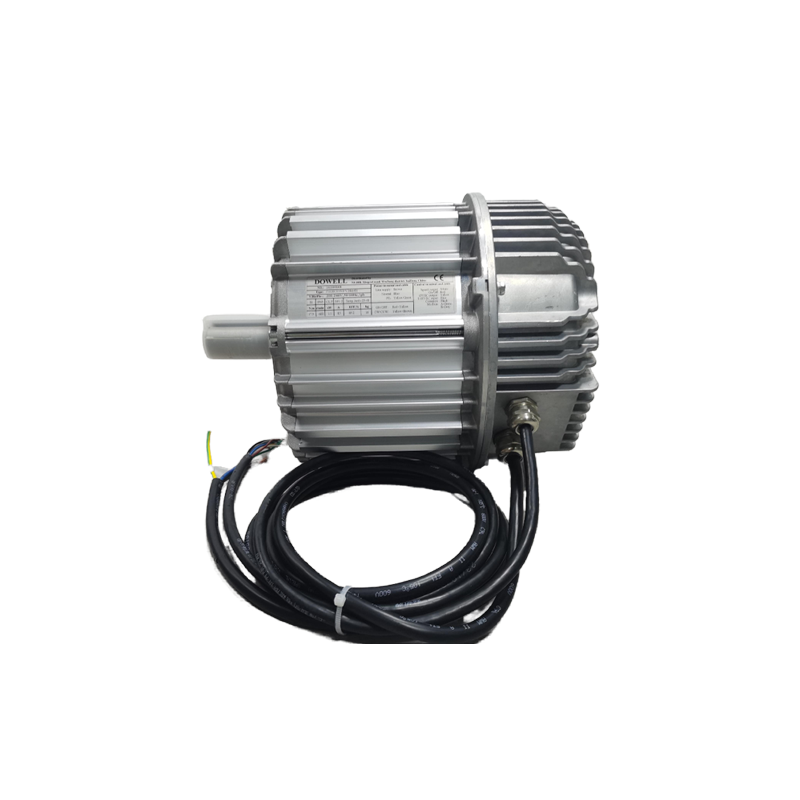

Single-phase, low-speed EC motors are designed for efficient operation in evaporative cooling systems. These motors are ideal for a wide range of applications where energy savings and low-speed operation are critical.
The motors offer a wide speed range, from 300 rpm to 1200 rpm. Models have torques from 8 N·m to 53 N·m, depending on the type. They are designed for use with both single-phase and three-phase power.
These motors have a maximum power output range of 0.85 kW to 2.54 kW and are extremely efficient. They help reduce energy consumption while providing consistent, reliable performance in cooling systems.
Frame | Model | Max. torque (N.m) | Speed range (r/min) | Max. Power (kW） | Voltage |
80 | F80ECI09 | 9 | 300-900 | 0.85 | 3ph~360-460V |
F80ECI11 | 11 | 300-900 | 1.0 | ||
112 | F112ECI16 | 16 | 300-900 | 1.50 | |
F112ECI19 | 19 | 300-900 | 1.80 | ||
F112ECI24 | 24 | 300-900 | 2.26 | ||
160 | F160ECI53 | 53 | 200-400 | 2.54 | |
80 | F80ECI11 | 11 | 300-1200 | 1.38 | 1ph~200-240V |
112 | F112ECI21 | 21 | 300-700 | 1.54 | |
F112ECI24 | 24 | 300-900 | 2.26 | 3ph~200-240V |
Features of Single Phase Low Speed Ec Motors For Evaporative Cooling
Wide speed range: Operating speeds between 300-900 rpm (depending on model).
High efficiency: Meets IE5 standards for variable speed motors, ensuring low energy consumption.
Durable design: Adopts permanent magnet brushless synchronous structure (PMSM) to reduce heat generation and achieve long-term reliability.
Advanced control: Equipped with PWM controller and I/O control for speed regulation, direction control and feedback functions.
Flexible installation: Available in various mounting forms (slide rail, foot, B14 flange) for easy installation.
Benefits of Single Phase Low Speed Ec Motors For Evaporative Cooling
Energy saving: The high efficiency of the motor reduces operating costs.
Easy integration: Plug and play setup allows fast deployment with minimal downtime.
Longer service life: Robust design and intelligent control extend fan life.
Environmentally friendly: With high energy efficiency and IP65 protection rating, it is both cost-effective and environmentally friendly.
Applications of Single Phase Low Speed Ec Motors For Evaporative Cooling
Ventilation systems in agricultural and livestock environments.
Air circulation in barns and agricultural facilities.
Maintaining optimal conditions for livestock.
Reducing energy consumption in cooling and ventilation applications.
Cooling systems in industrial or commercial spaces.

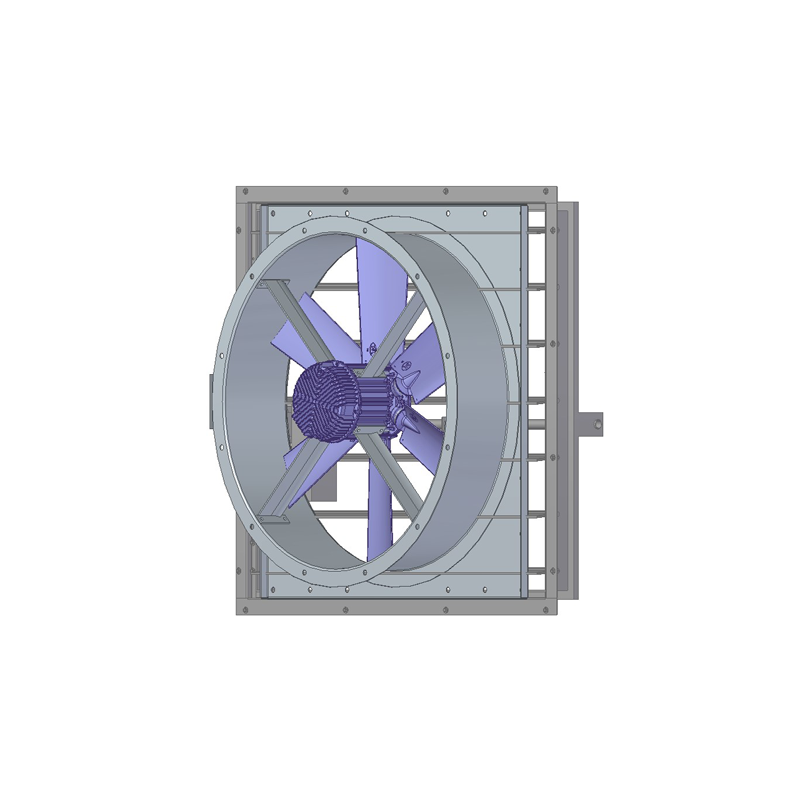

Efficient operation in evaporative cooling applications.
FAQs of Single Phase Low Speed Ec Motors For Evaporative Cooling
1.What is an EC motor?
An EC motor is an energy-efficient motor that uses electronic commutation for better control and lower energy consumption.
2.What applications are suitable for single-phase, low-speed EC motors?
These motors are ideal for agricultural environments, ventilation systems in barns, and cooling systems in industrial spaces.
3.What is the voltage range of EC motors?
The motors support single-phase (200-240V) and three-phase (200-240V, 360-460V) voltage ranges.
4.What is the speed range of these motors?
The speed range is from 300 rpm to 1200 rpm, depending on the model.
5.Are the motors energy-efficient?
Yes, EC motors are designed to be energy-efficient and are ideal for low-speed, high-torque applications such as evaporative cooling.
