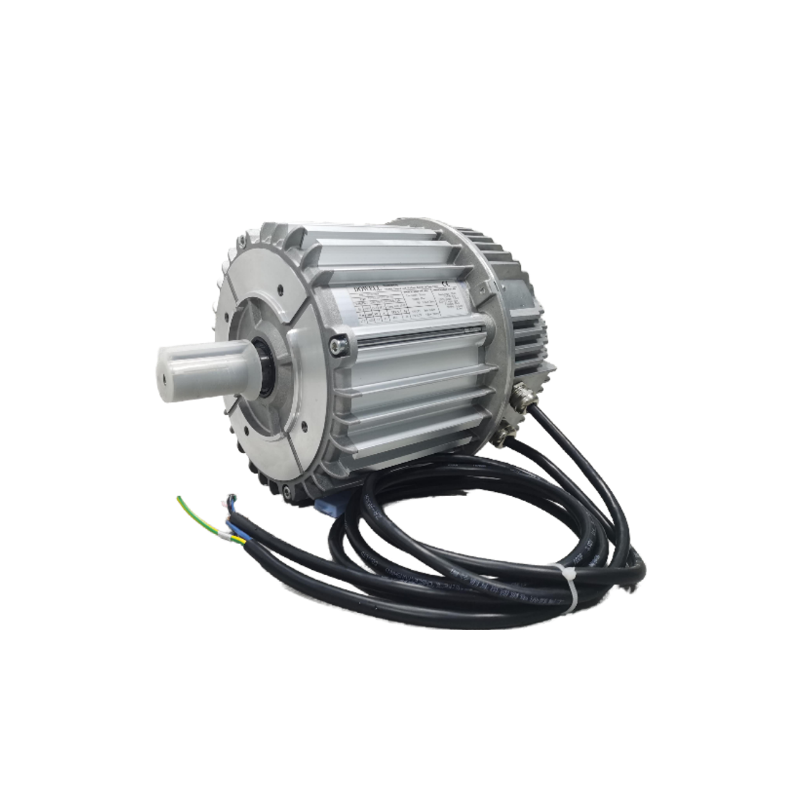

At Suzhou Dowell Ventilation Technology Co., Ltd., we are excited to introduce our High Speed EC Motors with Extrusion Aluminum Casing. These motors are specifically designed for direct drive applications, primarily for EC axial fan impellers, offering excellent performance and energy efficiency.
Our High Speed EC Motors operate within a speed range from 600rpm to 1800rpm or higher, depending on the specific needs of your application. With precise speed control, they ensure optimal airflow, making them perfect for a variety of ventilation and cooling systems. The integrated inverter at the non-drive end (NDE) simplifies installation with a 1.5-meter cable that connects easily to the power and control circuits without the risk of damaging the inverter board.
Built to withstand challenging environments, these motors come with an IP66 protection rating, which means they are resistant to dust, water, and corrosion. This makes them highly suitable for industrial applications. The inverter board is filled with thermally conductive adhesive, which ensures effective heat management and prolongs the motor’s lifespan.
The casing of our motors is made from extrusion aluminum or die-cast aluminum, both of which are chosen for their strength, lightweight nature, and excellent thermal dissipation properties. This ensures the motor operates efficiently even in demanding environments.
Our motors cover a power range from 0.3kW to 4kW, with a rated torque range of 1.2Nm to 48Nm. This makes them versatile for use in a variety of applications, from industrial ventilation to livestock farming. They support 50/60Hz frequency power inputs and can handle input voltages ranging from 360VAC to 460VAC (three-phase) or 200VAC to 270VAC (single-phase). Additionally, we offer customized power inputs such as 115VAC single-phase or 230VAC three-phase configurations.
These High Speed EC Motors are ideal for industries requiring energy-efficient, low-noise, and durable motors, such as HVAC systems, industrial ventilation, and more.
| Parameter | Value |
|---|---|
| Motor Speed Range | 600rpm - 1800rpm (or higher) |
| Power Input Voltage | 360VAC - 460VAC (three-phase) or 200VAC - 270VAC (single-phase) |
| Custom Power Input | 115VAC (single-phase), 230VAC (three-phase) |
| Power Range | 0.3kW - 4kW |
| Rated Torque Range | 1.2Nm - 48Nm |
| Protection Rating | IP66 |
| Motor Casing Material | Extrusion Aluminum or Die-Cast Aluminum |
| Frequency | 50/60Hz |
| Cable Length | 1.5M |
