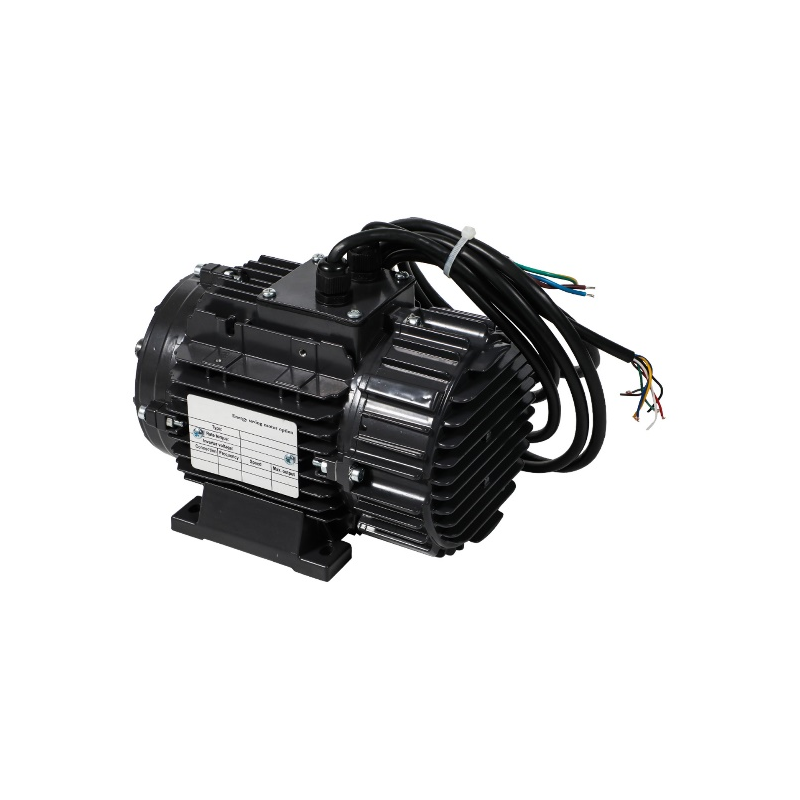

High Speed EC Motor with Die Casting Aluminum Casing

High Speed EC Motor with Die Casting Aluminum Casing Features

The High Speed EC Motor with Die Casting Aluminum Casing is designed to deliver outstanding performance, high efficiency, and durability. Below are the key features of this motor that ensure reliability and energy savings.

1. Durable Die-Casting Aluminum Casing

The motor is housed in a robust die-cast aluminum casing, which provides excellent heat dissipation and protection against external factors. This ensures long-term reliability and resistance to wear and tear, even in challenging environments.

2. High Efficiency: IE5 Standard

This motor achieves an energy-efficient performance with an IE5 rating, minimizing energy consumption and reducing operational costs. It meets the IEC60034-30-2-2016 standards, making it an ideal choice for industries seeking energy-efficient motors.

3. Flexible Mounting Options

Our EC motor supports various mounting configurations, including IEC B3, B35, B14, and B35 flanges. This flexibility makes it easy to integrate into different systems without the need for extensive modifications.

4. High Power Density with NdFeB Magnets

The use of NdFeB (neodymium-iron-boron) magnets provides high power density, making the motor compact and efficient. This allows for improved performance in systems that require a small footprint without sacrificing power output.

5. Direct Drive System

The motor features a direct drive system that eliminates the need for belts and pulleys, reducing mechanical losses and minimizing maintenance. This design improves overall system efficiency and reliability.

6. Plug-and-Play Installation

This motor is designed for easy installation, offering a plug-and-play setup that reduces installation time and minimizes downtime. It is ready to operate quickly, ensuring smooth integration into systems.

7. Advanced I/O Control Functions

The motor comes with integrated I/O control functions such as start/stop, CW/CCW direction control, and speed feedback (FG). Optional alarm switch signals (FO) ensure smooth operation and monitoring.

8. Modbus Communication Control

The motor includes RS485 Modbus communication functionality, allowing for advanced control. It enables remote management of the motor’s start/stop, speed, direction, and fault detection, ensuring ease of integration into automated systems.

9. Versatile Performance

Designed to perform efficiently across a wide range of operating conditions, the motor ensures reliable and consistent performance, minimizing energy consumption and maximizing system efficiency.

The High Speed EC Motor with Die Casting Aluminum Casing offers flexibility, durability, and high efficiency for a wide range of industrial applications, delivering energy savings and long-term performance.

Applications of High Speed EC Motor with Die Casting Aluminum Casing

The High Speed EC Motor with Die Casting Aluminum Casing is designed for efficiency and performance across various applications. Below are the key uses where this motor excels:

1. Air-Cooled Condensers

The motor enhances airflow in air-cooled condensers, improving heat dissipation and system efficiency. Its ability to operate at variable speeds ensures optimal performance in HVAC and refrigeration systems, reducing energy consumption.

2. HVAC Systems

In HVAC systems, the EC motor drives fans in air handling units (AHUs) and ventilation systems. Its direct-drive technology minimizes mechanical losses and maintenance, making it ideal for large commercial and industrial HVAC installations.

3. Livestock Air Circulation

Efficient airflow is crucial in livestock environments. The motor is used in air circulation fans for barns and animal houses, providing energy-efficient ventilation while maintaining a healthy environment for animals.

4. Heat Exchangers & Booster Pumps

The EC motor powers fans in heat exchangers and booster pump systems, ensuring efficient heat transfer and fluid flow. Its high power density and energy efficiency improve the overall performance of these systems while reducing operational costs.

The High Speed EC Motor with Die Casting Aluminum Casing is ideal for industries requiring energy-efficient motors, HVAC fans, and air handling systems, offering reliable performance and reduced maintenance across multiple applications.
