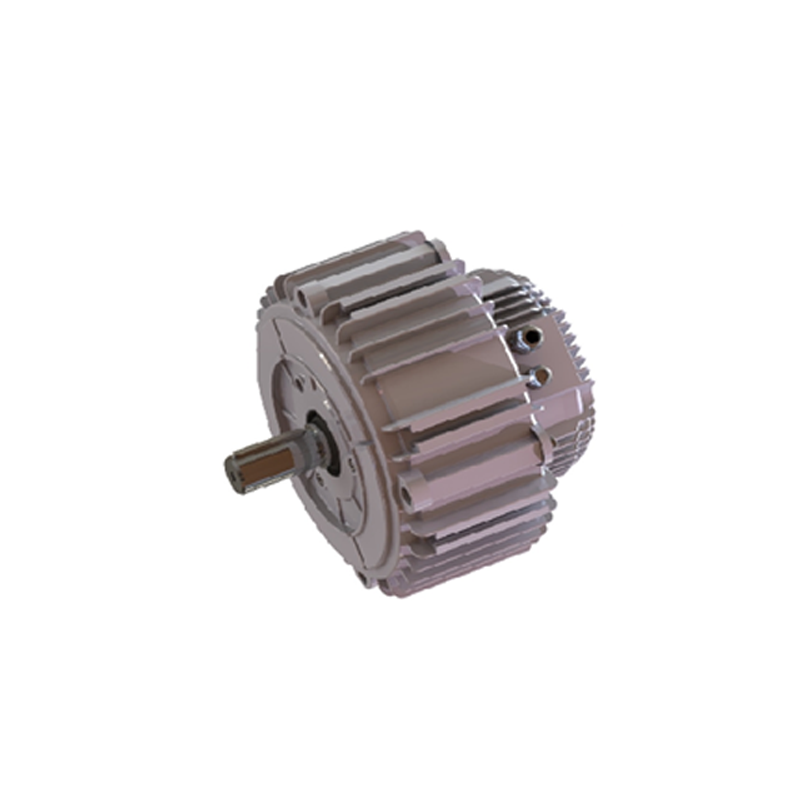

Designed to provide high torque and efficient performance, the 3-Phase High Torque EC Motor for Air Handling Units is ideal for air handling units (AHUs). This motor ensures stable operation, improving the efficiency and reliability of air systems. It has a variety of customizable speed options for a variety of applications that require precision and flexibility.
The motor runs at 50Hz, but can be customized to 50/60Hz based on your needs. It offers speeds such as 1180rpm and 800rpm, which can be adjusted from 200 to 500 rpm. The motor comes in a standard #160 size, providing versatility for different systems.
With a maximum output of 3.2 kW and rated torque options of 53 N·m or 70 N·m, it is suitable for demanding industrial environments. The motor is powered by a 400VAC or 230VAC three-phase power supply and integrates an inverter for precise speed control. This combination of features ensures that the motor operates efficiently and maintains long-lasting reliability in a variety of environments from industrial to commercial HVAC systems.
| Parameter | Value |
|---|---|
| Frequency | 50Hz (customizable to 50/60Hz) |
| Speed | 1180rpm, 800rpm (customizable) |
| Capacitance | 10μF, 12μF (customizable) |
| Motor Size | #160 |
| Speed Range (rpm) | 200-500 rpm |
| Rated Torque (N·m) | 53 N·m, 70 N·m |
| Max Output Power (KW) | 3.2 kW |
| Power Supply | 400VAC or 230VAC 3P |
| Inverter | Integrated |
Features of 3 Phase High Torque Ec Motor For Ahu
High Torque Output: Provides up to 70 N·m of torque, ensuring strong performance in demanding applications.
Low Speed Operation: Operates efficiently within a speed range of 200 to 500 rpm, adjustable via potentiometer and Modbus RTU communication protocol.
Integrated Inverter: Features a built-in variable frequency drive (VFD) inverter, complete with power and control wires, for easy wiring and installation.
Advanced Protection: Equipped with overload protection, overvoltage and overcurrent protection devices, all with automatic recovery functions to increase reliability.
Efficient Design: Utilizes state-of-the-art EC technology combined with sensor technology to achieve high efficiency.
Benefits of 3 Phase High Torque Ec Motor For Ahu
Energy Efficiency: EC motors are designed to minimize energy consumption, thereby saving costs.
Durability: Manufactured with high-quality materials and protection features to ensure long service life.
Versatility: Suitable for a variety of applications, including ventilation systems, industrial machinery and agricultural equipment.
Easy to integrate: The motor's standard IEC housing size allows for easy retrofitting of older AC induction motors.
Applications of 3 Phase High Torque Ec Motor For Ahu
Agricultural Ventilation: Ideal for maintaining optimal airflow in livestock sheds to promote animal health and growth.
Industrial Machinery: Ideal for equipment that requires high torque at low speeds, such as conveyors and mixers.
HVAC Systems: Ideal for large heating, ventilation and air conditioning systems that require high airflow.
