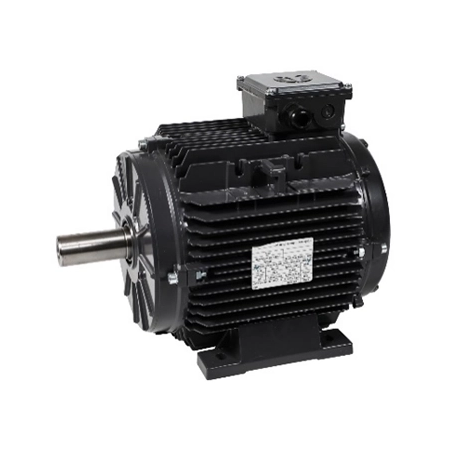

The CE certified high power 72V 96V PMSM motor produced by Suzhou Dowell is a high-performance brushless motor designed for a variety of industrial applications.
The motor operates efficiently at rated voltages of 72V and 96V with an output power of 5000W. Its rated speed is 3700 RPM, rated torque is 13 Nm, and maximum torque is 45 Nm. The motor's design includes four pole pairs and IP65 protection rating, ensuring durability and reliability in harsh environments.
The CE certified high power 72V 96V PMSM motor is suitable for applications that require high efficiency, compact design, and precise control. Its rugged construction and low maintenance requirements make it an ideal choice for industrial automation, HVAC systems, electric vehicles, and renewable energy applications.
Incorporating this motor into your operations can significantly improve energy efficiency, performance, and reliability, making it a valuable choice for modern industrial applications.
| Parameter | Value |
|---|---|
| Rated Voltage | 72V / 96V |
| Rated Power | 5000W |
| Rated Speed | 3700 RPM |
| Rated Torque | 13 Nm |
| Maximum Torque | 45 Nm |
| Rated Current | 125A / 85A / 60A / 48A |
| Maximum Phase Current | 300A / 260A / 200A / 160A |
| Maximum Current Duration | 10 seconds |
| Pole Pairs | 4 |
| Protection Class | IP65 |
| Warranty Period | 3 months - 1 year |
| Origin | China |
| Motor Type | Brushless |
Features of CE Approved High Power 72v 96v Pmsm Motor
High Efficiency: PMSMs operate with minimal energy loss, resulting in significant energy savings and lower operating costs.
Compact Design: The use of permanent magnets allows for more compact motor designs without compromising performance.
Precise Control: These motors provide precise speed and position control, which is critical for applications that require high accuracy.
Low Maintenance: PMSMs are brushless motors with fewer moving parts, resulting in lower maintenance requirements and longer life.
Advantages of CE Approved High Power 72v 96v Pmsm Motor
High Power and High Efficiency: Designed for heavy-duty applications such as electric vehicle conversion kits, it has a maximum output of 5 kW.
Multi-voltage compatibility: Compatible with 48V, 72V, 96V and 120V systems, providing flexibility to meet a variety of user needs.
Durable and Reliable: With an IP65 protection rating, it can withstand harsh environments and ensure consistent performance.
Customizable and Scalable: Adjustable speed and torque settings allow customization to meet specific application requirements.
User-Friendly and Rugged: Its compact design and rugged construction allow for easy installation and maintenance, reducing downtime.
Applications of CE Approved High Power 72v 96v Pmsm Motor
Electric Vehicles: Power electric vehicles, ATVs and golf carts.
Electric Motorcycles: Suitable for conversion kits and customization.
Electric Boats: Provide efficient propulsion for water vehicles.
Electric Bikes: Improve the performance of electric bike applications.
Electric Karts: Provide high torque for kart racing.
FAQs of CE Approved High Power 72v 96v Pmsm Motor
1. What is the CE certified high power 72V 96V PMSM motor?
This is a high performance brushless motor designed for a variety of industrial applications with high efficiency and durability.
2. Can this motor be customized?
Yes, the motor offers adjustable speed and torque settings, allowing customization to meet specific application requirements.
3. What is the protection rating of this motor?
The motor has an IP65 protection rating, ensuring it is dust and water jet resistant for harsh environments.
4. What is the rated speed and torque of this motor?
The motor has a rated speed of 3700 RPM and a rated torque of 13 Nm.
5. What is the maximum torque that this motor can provide?
The maximum torque that the motor can provide is 45 Nm.
