Industrial ventilation and commercial refrigeration environments are notoriously unforgiving. They expose sensitive cooling components to continuous thermal, mechanical, and environmental stress. System operators face constant challenges keeping operations running smoothly. Often, premature fan failure originates away from the actual EC motor. Instead, it stems directly from unseen housing degradation. This structural breakdown causes severe vibration, premature bearing wear, and dangerous overheating. You might end up replacing perfectly good motors simply because their plastic frames failed prematurely.
This article provides an objective engineering and procurement breakdown. We explore why transitioning to robust metal enclosures resolves these exact environmental vulnerabilities. You will learn the specific mechanical advantages of rigid frames. We detail material decision frameworks to guide your next specification process. Finally, we examine the practical implementation realities of switching materials. Understanding these core dynamics helps you build much more durable, reliable cooling systems.
Standard polymer housings struggle significantly in heavy-duty applications. Continuous operation generates persistent resonant frequencies throughout the equipment. Over time, these frequencies cause polymer housings to micro-crack. Synthetic materials simply cannot withstand constant harmonic stress without yielding. The initial cracks remain invisible to the naked eye. Eventually, they propagate and compromise the entire frame structure. You lose structural integrity long before the motor reaches its rated lifespan.
High ambient temperatures in industrial settings cause severe thermal degradation. Heat accelerates the loss of vital plasticizers in synthetic housings. Manufacturers use plasticizers to keep polymers flexible and resilient. This chemical loss leads directly to extreme brittleness. Once brittle, the plastic loses all structural resilience entirely. Temperature fluctuations cause expanding and contracting cycles. These cycles shatter the weakened polymer frames unexpectedly, causing catastrophic system shutdowns.
Physical impact and heavy abrasion present another major operational threat. Maintenance technicians sometimes accidentally bump equipment during routine service. High-pressure cleaning jets hit delicate components extremely hard during facility washdowns. Particulate-heavy airstreams wear down non-metal surfaces just like sandpaper. These combined forces severely compromise non-metal structural integrity daily. Over months of exposure, the plastic simply erodes away.

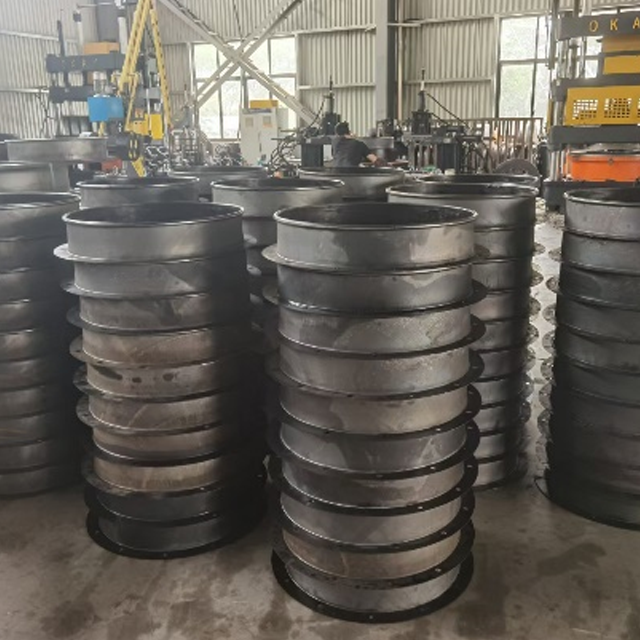

Specifying an EC axial fan with metal housing offers profound structural benefits. High rigidity ensures the motor shaft remains perfectly aligned at all times. It stays perfectly true even under extreme aerodynamic load. This stability directly mitigates the leading cause of EC motor failure. Misaligned bearings create uneven friction and rapid heat buildup. Metal frames hold strict mechanical tolerances over decades of continuous use. You eliminate shaft deflection entirely.
Passive thermal management represents another critical engineering advantage. The metallic surface area acts as a highly effective heat sink. It draws thermal energy away from internal electronics and stator windings rapidly. Cooler electronics last significantly longer in demanding environments. Standard plastics act as insulators, trapping destructive heat inside the motor core. Metal actively dissipates this heat into the surrounding airstream, protecting the sensitive electronic commutation circuitry.
Metal mass naturally alters the resonant frequency of the entire cooling unit. This shift reduces destructive harmonic vibrations significantly. Less vibration transfers to the larger HVAC system structure. You experience fewer loose fasteners and rattled panels. The overall mechanical ecosystem remains much more stable when heavy metallic frames anchor the rotating fan blades.
Understanding when to specify polymers remains important for cost control. You should use them for light-duty, predictable applications. They work very well in strictly controlled indoor environments. Highly weight-sensitive installations also benefit greatly from lighter plastics. Desktop electronics, small residential appliances, and cleanroom server racks fit this profile perfectly. If the environment lacks severe stress, polymers provide adequate performance.
However, you must specify metal for harsher, demanding conditions. Commercial refrigeration, heavy HVAC, and outdoor condenser units require absolute rigidity. They suit any application demanding a long-life axial fan. Industrial facilities cannot tolerate unplanned downtime or unexpected failures. The sheer durability of metal justifies its selection in these critical spaces. When failure equals lost revenue, metal provides indispensable peace of mind.
Corrosion resistance demands careful evaluation during the specification process. You must evaluate galvanized steel, die-cast aluminum, and epoxy-coated metals carefully. Base your choice entirely on application-specific chemical and moisture exposure. Marine environments demand heavy epoxy coatings or specialized aluminum alloys. Standard steel rusts quickly if deployed incorrectly outdoors. You must align the metallurgy with the specific environmental hazards.
The following comparison details the core differences between these enclosure materials across key engineering metrics.
| Engineering Metric | Polymer Enclosures | Metal Enclosures |
|---|---|---|
| Structural Rigidity | Low to Moderate (susceptible to warping) | Exceptionally High (maintains bearing alignment) |
| Thermal Conductivity | Poor (acts as a heat insulator) | Excellent (functions as a passive heatsink) |
| Vibration Dampening | High acoustic absorption, but prone to micro-cracking | Alters resonant frequency; prevents structural rattling |
| Weight Impact | Lightweight (easy installation) | Heavy (requires robust mounting hardware) |
| Ideal Environment | Clean, climate-controlled indoor spaces | High-stress, outdoor, or industrial settings |
Switching to a metal housing fan introduces new physical engineering requirements. It requires robust structural supports within your main chassis. You need higher load-rated vibration isolators compared to plastic equivalents. You cannot use flimsy mounting brackets or cheap hardware. The added weight demands precise engineering calculations during the initial design phase. If you retrofit an older system, you must reinforce the existing mounting bulkheads.
Acoustic profiling changes drastically when transitioning from plastic to metal. Metal reduces structural vibration effectively due to its raw mass. However, it lacks the inherent acoustic absorption of softer plastics. You must address this difference in high-frequency sound transmission. Achieving low noise requires precise aerodynamic blade matching from the manufacturer. Engineers must balance the rigid frame with optimized blade sweeps to keep noise levels acceptable.
You must transparently weigh the higher initial procurement cost. Compare it directly against drastically reduced maintenance cycles. Calculate the saved replacement labor and minimized system downtime. Long-term mechanical durability consistently outweighs the cheaper upfront price tag. Your maintenance teams will spend far less time replacing broken fans. Ultimately, the extended L10 lifespan of the motor justifies the initial expenditure.
Ingress Protection (IP) alignment is absolutely crucial for environmental survival. Ensure the metal housing design complements the specific IP rating of the EC motor. Whether you specify IP54, IP55, or IP68, you need complete environmental sealing. The metal frame must protect the sensitive EC motor interface. Gaskets and seals must seat perfectly against the rigid metal surface. Any gaps invite catastrophic water or dust intrusion.
Regulatory and efficiency compliance cannot be ignored during selection. Verify the housing design maintains optimal aerodynamic airflow geometry. It must meet stringent ERP directives for energy consumption. You should never sacrifice mechanical durability for electrical efficiency. Modern engineering ensures both are highly achievable together. The internal contours of the metal frame must promote smooth, turbulent-free air delivery.
Vendor validation separates good specifications from catastrophic field failures. Assess comprehensive manufacturer test data before approving mass deployment. Request detailed salt spray test results for the exact coating specified. Look closely at accelerated thermal cycling data. Check their published vibration tolerance thresholds to ensure system compatibility. Reputable vendors will happily supply this data to back up their durability claims.
Metal housing is not universally required for every single project. However, it remains a mandatory specification for mission-critical, high-stress environments. Polymers fail under continuous harmonic vibration and extreme heat. Metallic frames preserve bearing alignment, act as thermal heat sinks, and endure physical abuse effortlessly. Moving to robust enclosures guarantees your cooling infrastructure survives the harshest industrial conditions.
To successfully integrate these robust components into your upcoming projects, consider the following action-oriented steps:
A: Metal does not absorb high-frequency noise as effectively as plastic. However, its rigid mass dramatically reduces low-frequency mechanical rattling. Overall noise output depends heavily on blade aerodynamics. It also relies on correct motor-to-housing pairing. Proper engineering ensures the acoustic profile remains highly competitive and suitable for commercial environments.
A: A metal housing acts as a highly conductive heatsink. It continuously draws heat away from internal components. This process lowers internal operating temperatures significantly. Research shows a reduction of just 10°C can effectively double the expected life of the motor's ball bearings. It provides an immediate boost to longevity.
A: No. Durability depends entirely on the specific material and surface treatment. Common options include die-cast aluminum, galvanized steel, or specific anti-corrosive powder coatings. You must match the material directly to your specific environmental hazards. Salt spray, industrial chemicals, and high humidity require specialized protective finishes for long-term survival.
