Facility managers and HVAC engineers constantly face compounding challenges with aging Air Handling Units (AHUs). Unpredictable static pressure, filter loading inefficiencies, and the high maintenance overhead of AC motors severely drain operational resources. Traditional fans rely on bulky external Variable Frequency Drives (VFDs) and belt-driven systems. These mechanical components degrade rapidly over time. They lead to severe airflow inconsistency. They waste immense energy during partial loads and introduce significant Indoor Air Quality (IAQ) compliance risks.
Fortunately, an EC fan (Electronically Commutated fan) retrofit provides the ultimate industry standard for precise, direct-drive airflow management. They offer continuous modulation without the mechanical penalties of legacy systems. Upgrading your building's climate control infrastructure ensures intelligent performance. You will learn exactly why legacy setups fail under dynamic loads. We will explore how smart commutation resolves filter degradation. You will also discover the operational ROI and system architecture strategies needed for a seamless facility retrofit.
Partial Load Dominance: EC fans dynamically adjust to real-time airflow demands, yielding up to 50% energy savings during off-peak operations where traditional fans waste power.
Elimination of Mechanical Losses: Beltless, direct-drive designs remove slippage, friction, and the shedding of particulate matter, directly protecting IAQ.
Native BMS Integration: Integrated electronics allow seamless, out-of-the-box communication with Building Management Systems (Modbus, BACnet, 0-10V) without external controllers.
N+1 Redundancy: Deploying EC fans in a "FanGrid" (array) eliminates Single Points of Failure (SPOF) and ensures continuous AHU operation.
Air Handling Units rarely operate at peak capacity. Most mechanical designs assume a "full load" scenario for safety margins. However, real-world engineering data proves facilities run at partial load for over 80% of their operational lifespan. AC fans are typically sized for absolute peak demand. They struggle significantly to scale down efficiently when occupancy or weather patterns shift. Legacy motors simply consume excess electricity when trying to push lower air volumes. This forces dampers to artificially restrict airflow. It creates immense energy waste and unnecessary system stress.
Legacy AC setups rely heavily on belts, pulleys, and external bearings. Belt-driven fans suffer from continuous physical wear. Belts stretch and slip over time. This mechanical slippage fundamentally limits the precision of airflow volume. Static pressure control degrades quickly. Maintenance teams must constantly retension or replace belts. Furthermore, deteriorating rubber belts shed fine particulate matter directly into the airstream. This shedding aggressively compromises Indoor Air Quality. It forces secondary filters to work harder and clog faster.
Some engineers attempt a temporary patch. They add external VFDs to legacy AC fans for basic speed control. This introduces complex, bulky wiring. External drives increase the risk of electrical noise and harmonic distortion. They demand extra physical space inside the already cramped AHU casing. VFDs also generate substantial heat. This forces the cooling coils to expend extra energy just to offset the heat generated by the fan motor itself.
EC technology utilizes a continuous electronic commutation mechanism. It combines the efficiency of a DC motor and the convenience of an AC power supply. An integrated Printed Circuit Board (PCB) acts as the motor's brain. The PCB processes real-time data directly from pressure, temperature, and humidity sensors. It executes immediate RPM adjustments without lag. The built-in electronics handle the conversion from alternating current to direct current internally. This eliminates the need for separate, wall-mounted inverters.
Filter degradation presents a major practical hurdle in facility management. As AHU filters accumulate dust, internal resistance rises. The pressure drop sharply increases across the filter bank. An EC fan automatically ramps up its speed in response. It maintains a Constant Air Volume (CAV) effortlessly. You avoid manual system rebalancing completely. The built-in Proportional-Integral-Derivative (PID) loop monitors the airflow continuously. It ensures occupants receive the exact required ventilation regardless of filter age.
Engineers must specify exact component choices based on distinct airflow needs. Understanding the physical layout of your AHU determines the specific fan geometry.

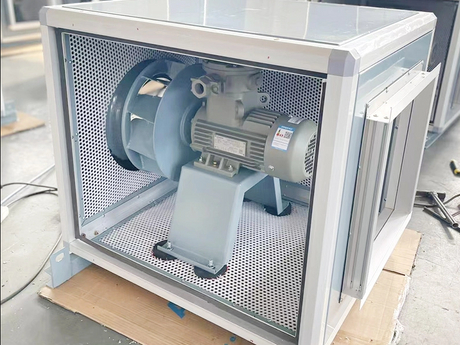

An EC Centrifugal Fan is highly recommended for overcoming high static pressure. These units push air efficiently through complex ductwork and dense AHU filter banks. Their backward-curved impellers prevent aerodynamic stalling under high resistance.
An EC Axial Fan is widely utilized for high-volume, low-pressure applications. They excel in large-scale exhaust sections. They move massive amounts of air straight through the casing efficiently.
Best Practices for Sensor Placement
Always place differential pressure sensors correctly. Install the high-pressure tube directly at the fan discharge. Mount the low-pressure tube securely in the return air plenum. This guarantees the internal PCB receives accurate data for precise commutation.
Engineering physics dictate massive savings for modern retrofits. Apply the Fan Affinity Laws to understand this dynamic. The power required to drive a fan varies by the cube of its speed. A 20% reduction in fan speed yields nearly 50% energy savings. Traditional motors waste power fighting mechanical friction at lower speeds. EC motors maintain high efficiency across their entire operational curve. This "cube law" drives an aggressive payback period. Most commercial facilities see full capital returns within 2 to 3 years.
You achieve tremendous long-term cost avoidance. Modern direct-drive, brushless architectures eliminate physical friction points. There are no carbon brushes to wear down. There are no belts to replace. You never have to align pulleys or grease bearings. The motor runs exceptionally cool. The Mean Time Between Failures (MTBF) frequently exceeds 50,000 hours. Facilities shift their labor hours away from reactive patching. Maintenance teams can focus on proactive system optimizations instead.
Meeting stringent building codes is critical for modern property management. Upgrading serves as a strategic path to regional compliance. Advanced fan systems easily meet the demanding efficiency thresholds of ASHRAE 90.1. They also exceed the European ErP 2022 directives. Furthermore, installing premium efficiency equipment helps properties acquire points for LEED certification. You demonstrate tangibly lower carbon emissions. You boost the overall green credential of the building portfolio.
Sometimes, physical layout dictates a simple approach. Replacing a single failing AC fan with a single EC unit offers plug-and-play viability. It works beautifully in smaller or spatially constrained AHUs. Engineers can usually mount the new fan onto the existing bulkhead. They remove the old motor, pulley, and housing. The new unit slides into the exact same footprint. This minimizes immediate labor costs.
Innovation lies in numbers for larger systems. You can replace one massive, heavy AC fan with multiple smaller EC fans. They operate in parallel within a custom bulkhead. Industry experts call this a FanGrid or Fan Array. This modern approach completely transforms large-scale climate control. The array acts as a unified breathing mechanism for the building.
Arrays provide crucial N+1 redundancy. You completely eliminate Single Points of Failure (SPOF). If one massive traditional fan breaks, the entire building loses air. If one fan in an array fails, the integrated controls instantly react. They automatically ramp up the remaining fans. You maintain the required airflow seamlessly. The building experiences zero system downtime. Maintenance teams can block off the failed fan and replace it during standard operating hours.
Massive AC rotors generate intense, low-frequency vibrations. These vibrations travel through the building structure. They cause discomfort for occupants directly above or below the mechanical room. A FanGrid uses multiple smaller impellers. They generate higher-frequency noise. Acoustic engineers can attenuate high frequencies much easier using standard sound baffles. The balanced array also significantly reduces overall structural vibration. It protects the integrity of the AHU casing.
Comparative Overview: Single AC Fan vs. FanGrid Array
Feature | Single Legacy AC Fan | EC FanGrid (Array) |
|---|---|---|
Redundancy | None (Total system failure if motor dies) | N+1 (Remaining fans compensate automatically) |
Maintenance | High (Belts, greasing, bearing alignment) | Zero (Brushless, direct-drive design) |
Acoustic Profile | Low-frequency rumbling (Hard to attenuate) | High-frequency hum (Easily blocked by panels) |
Space Requirement | Large footprint for motor and drive belts | Ultra-compact, freeing up internal AHU space |
Control integration causes anxiety during many mechanical retrofits. Facility managers fear they will need expensive proprietary software. However, modern units natively support global standard protocols. They seamlessly handle analog 0-10V and PWM signals for older setups. They also speak digital Modbus and BACnet natively for modern networks. You connect them directly to your existing Building Management System. You do not need intermediary hardware or costly gateway converters. The fan communicates its RPM, power consumption, and error codes directly to the main dashboard.
You cannot simply guess the required fan capacity. Precise load calculations are strictly required prior to any retrofit. Engineers must account for exact static pressure requirements across the entire duct run. They must evaluate the cooling coils, heating elements, and filter depths. They must measure the internal chamber carefully. The new fans must fit within the existing AHU bulkhead without blocking internal access doors. Oversizing the fan causes acoustic issues. Undersizing it fails to satisfy the building's thermal load.
Common Mistakes to Avoid
Do not ignore aerodynamic blockages. Ensure the fan array has enough clearance from the cooling coils. Placing fans too close to internal components causes turbulence. This turbulence drastically reduces the efficiency gains you expect from the upgrade.
Facility downtime scares financial decision-makers. You can perform these upgrades entirely within the existing AHU casing. Technicians dismantle the old fan. They clean the chamber. They build the new array wall inside the unit. This "in-situ" approach minimizes operational disruption. You can upgrade one floor at a time over a weekend. It completely avoids the massive capital expenditure of tearing out the roof and replacing the entire AHU housing.
You need a rapid diagnostic framework to justify an upgrade. Facility managers should review their current maintenance logs. Ask yourself the following critical questions. Answering "yes" to two or more indicates a severe need for a system retrofit.
Are the current fans over 10 years old? Motors lose efficiency over a decade of continuous run time. Internal windings degrade.
Are maintenance teams performing belt or bearing replacements more than twice a year? Frequent mechanical failures signal an unbalanced rotor or worn drive assembly.
Is the AHU struggling to maintain set pressure points during variable weather or occupancy loads? This indicates the VFD or motor cannot modulate properly.
Is the system producing excessive low-frequency vibration? Heavy vibrations damage the structural integrity of the AHU walls and water coils.
Do not purchase raw fans from an unvetted distributor. Advise your procurement team to vet manufacturers based on strict criteria. Demand transparent MTBF data for the specific fan models. Check for local compliance certifications and proper UL/CE markings. Furthermore, ensure the integrator provides comprehensive site-survey capabilities. A reliable partner will measure your airflow, calculate the static pressure, and model the financial payback before you sign a contract.
Transitioning to advanced fan technology moves a facility from reactive maintenance to proactive, data-driven climate control. You completely eliminate the mechanical friction, messy belts, and frequent breakdowns associated with legacy systems. The dynamic modulation capabilities easily offset the initial capital investment through aggressive energy savings.
Your next step is simple. Initiate a professional site survey or energy audit today. Have an engineer calculate the exact ROI of an upgrade for your specific AHU configuration. By modernizing your airflow management, you protect your indoor air quality, secure your system reliability, and future-proof your building portfolio against tightening environmental regulations.
A: Most commercial facilities experience energy savings between 30% and 50%. The exact percentage depends heavily on how often your system runs at partial load. Because these fans utilize continuous electronic commutation, they drastically reduce power consumption during off-peak hours compared to traditional motors.
A: No. Engineers perform an "in-situ" retrofit. Technicians dismantle the old motor, belts, and scroll housing. They build a custom bulkhead and install the new fans directly inside your existing AHU casing. This avoids crane rentals and massive structural renovations.
A: Yes. They feature highly flexible, integrated circuit boards. They accept standard analog 0-10V or PWM signals, making them perfect for older legacy systems. Simultaneously, they support digital communication protocols like Modbus and BACnet for seamless integration into modern Building Management Systems.
